Product Overview

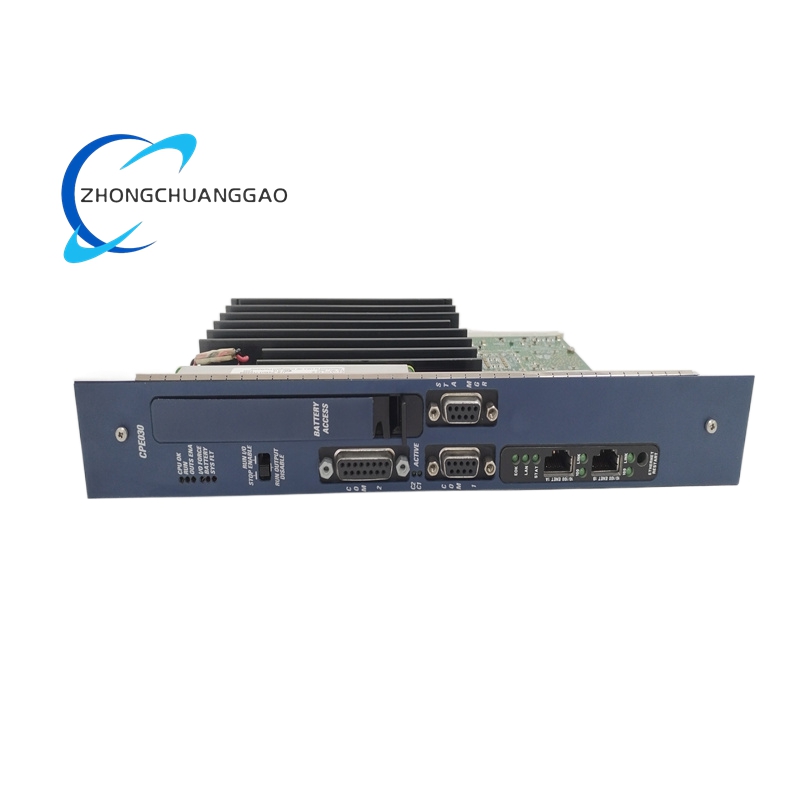

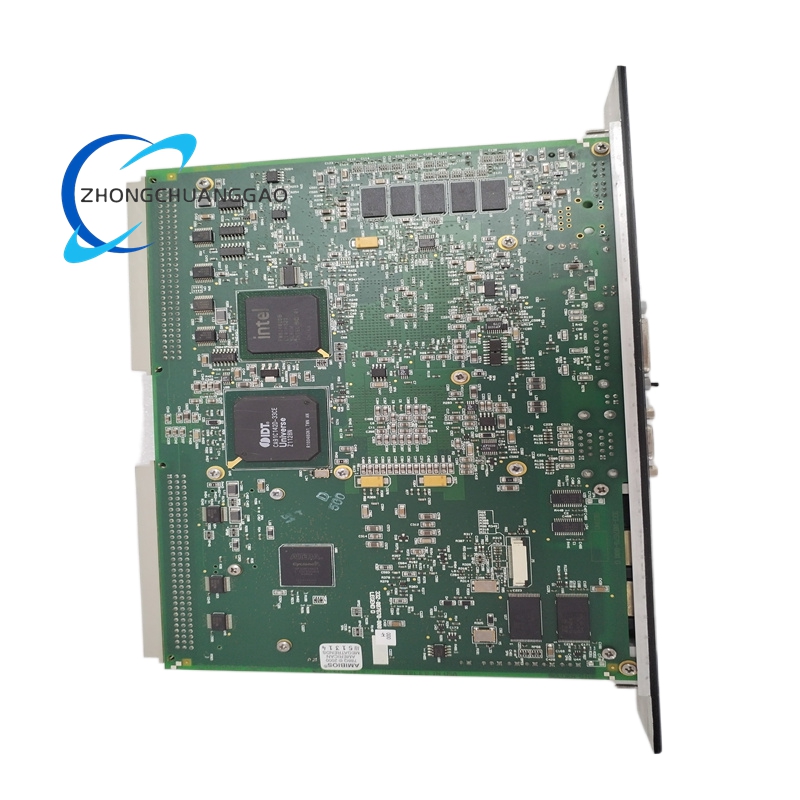

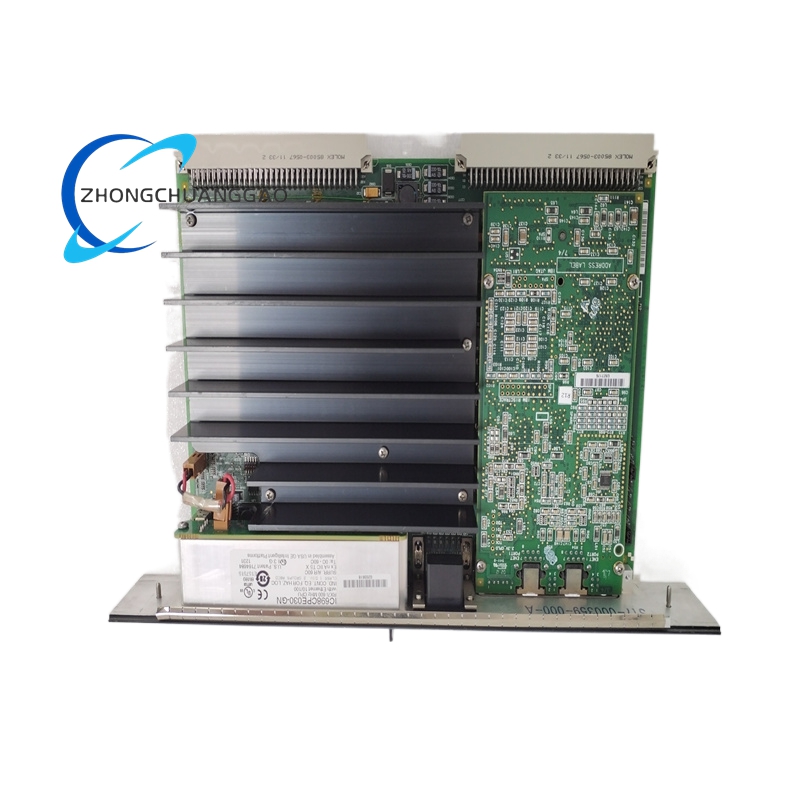

The GE IC698CPE030 is a high-performance CPU module designed for industrial automation and control systems. It serves as the core component in PACSystems RXi/RX7i series controllers, providing powerful processing capabilities, flexible communication interfaces, and high reliability for complex industrial applications.
Technical Specifications
- Processor: 600MHz Pentium-M microprocessor
- Memory: 64MB user memory, 64MB user flash memory (expandable up to 128KB per program block)
Description
- I/O Capacity: Supports up to 32K discrete I/O points and 32K analog I/O words
- Communication Ports:
- Dual 10/100 Mbps Ethernet ports (auto-negotiation, half/full duplex)
- One RS-232 port, one RS-485 port, and one station manager port
- Protocols: Supports EGD (Ethernet Global Data), Modbus TCP (server/client), SRTP, Modbus RTU, SNP, and serial I/O
- Power Requirements: +5V DC, +12V DC, or -12V DC
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -40°C to 85°C
- Certifications: UL, CSA, CE
Functional Features
- High-Speed Processing: The 600MHz Pentium-M processor enables rapid execution of complex control logic and real-time data processing.
- Large Memory Capacity: 64MB user memory and flash memory support extensive program storage and quick data access.
- Flexible Communication: Dual Ethernet ports and multiple serial ports facilitate seamless integration with various devices and systems.
- Advanced Diagnostics: Built-in web server and FTP functionality allow remote monitoring and configuration.
- Modular Design: Supports hot-swapping for easy installation, maintenance, and upgrades.
- Robust Construction: Designed to withstand harsh industrial environments with anti-vibration and anti-electromagnetic interference capabilities.
- Redundancy Support: Ensures continuous system operation through redundant configurations.
- Security Features: Includes safety stop and permission control functions to safeguard operations.
Application Scenarios
- Manufacturing: Controls production lines, robots, and automated workstations for efficient and reliable manufacturing processes.
- Process Control: Monitors and controls industrial processes in chemical, petroleum, food, and beverage industries to ensure product quality and safety.
- Power Industry: Supervises power distribution, generation, and substation equipment to enhance grid stability.
- Building Automation: Manages lighting, HVAC, and security systems in large commercial buildings for intelligent and energy-efficient operation.
- Water Treatment: Monitors and controls water treatment processes to ensure compliance with water quality standards.
- Traffic Control: Optimizes traffic flow by managing traffic signals, railway signals, and tunnel safety equipment.
