Product Short Description

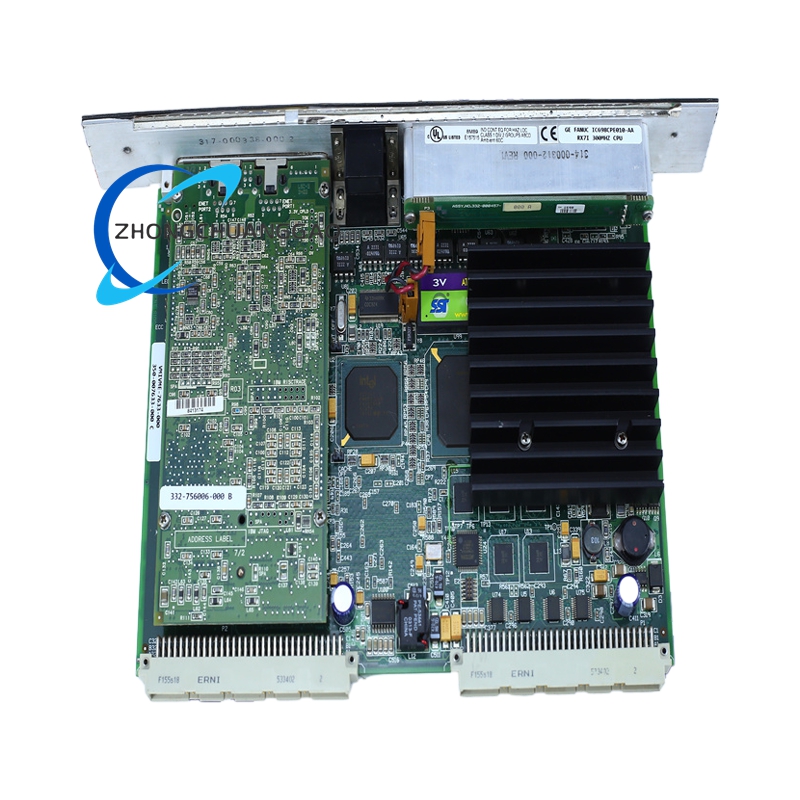

Product Identity
Series: RX7i PACSystems
Role: Primary CPU / control processor for large-scale industrial automation
Technical Specifications
  • Processor: 300 MHz Intel Celeron (Pentium-class)
  • Memory: 10 MB battery-backed RAM + 10 MB non-volatile Flash user memory
  • I/O Capacity: up to 30 000 discrete or analog points
  • Backplane Speed: 2.1 Gbps on VME64x

Description

  • Data Retention: 5 years at 20 °C battery life; 40 days without power
  • Boolean Execution: 0.195 ms per 1 000 contacts/coils typical
  • Real-time Clock: accuracy ≤ 9 s drift per day
  • Communication Ports
    – 2 × RJ45 10/100 Mbps Ethernet (supports EGD, Modbus TCP/IP, PROFINET, SRTP)
    – 1 × RS-232 (RJ45) station-manager port
    – 1 × RS-232 / RS-485 isolated serial port
  • Power: 5 V DC ±5 % via backplane, 3.2 A max
  • Operating Temperature: 0 °C – 60 °C standard; –40 °C – +70 °C extended
  • Certifications: UL, CE, ATEX Zone 2
Functional Features
  • Deterministic scan engine with sub-millisecond task response
  • Web server & FTP server (16 concurrent connections) for remote diagnostics
  • Role-based cybersecurity and signed firmware validation
  • Hot-swappable in RX7i rack; redundancy ready when paired with IC698CRE030
  • Backward-compatible with legacy GE Series 90-70 programs
Application Scenarios
  • Power generation: turbine, boiler, generator control & grid synchronization
  • Oil & gas: refinery process units, offshore platform safety systems
  • Manufacturing: automotive assembly lines, semiconductor fabs, packaging machines
  • Water & wastewater: treatment plant DCS, pump station remote I/O
  • Transportation: rail signaling, airport baggage handling, material conveyors
