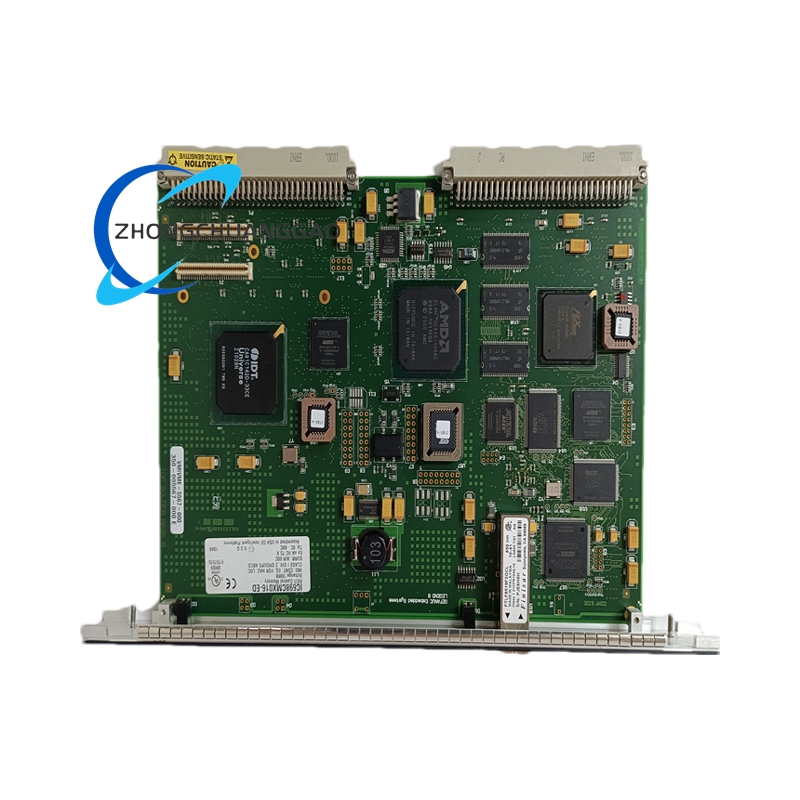

Description
-
Fiber interface: dual LC multimode ports TX/RX
– Data rate: 2.12 Gbaud
– Distance: 300 m multimode (984 ft)
– Insertion loss ≤ 0.35 dB; return loss ≤ –30 dB -
Transfer bandwidth: 43 MB/s (4-byte packets) → 174 MB/s (64-byte packets)
-
Packet size: 4–64 bytes, auto-negotiated
-
Bus: VME64x single-slot 6U, A32/A24, D64/D32/D16 access
-
Power: +5 VDC @ 1.8 A (supplied by rack)
-
Temperature: –20 °C to +85 °C operating; –40 °C storage
-
Dimensions: 6.3 × 9.2 in (160 × 233 mm)
-
Indicators: OK, CONFIG, OWN DATA, SIGNAL DETECT LEDs on front panel
Functional Features
-
Deterministic reflective memory: write to local RAM = instant broadcast to all nodes, no CPU intervention
-
CPU-independent: operates transparently alongside any RX7i CPU or external controller
-
Redundant ring support: automatic switch-over on fiber break
-
Hot-swap capable within VME64x rack
-
Configuration via Proficy Machine Edition Logic Developer PLC v4.5 or later
-
Hardware parity and error detection for fault-free data integrity
Typical Applications
-
Real-time simulation and test rigs (flight, power-plant, automotive)
-
High-speed data acquisition and motion control synchronization
-
Distributed PLC or SCADA networks requiring micro-second latency
-
Legacy VME upgrades: drop-in extension of VMIC 5565 fiber rings
-
Petrochemical plant DCS upgrades and safety-critical process loops
