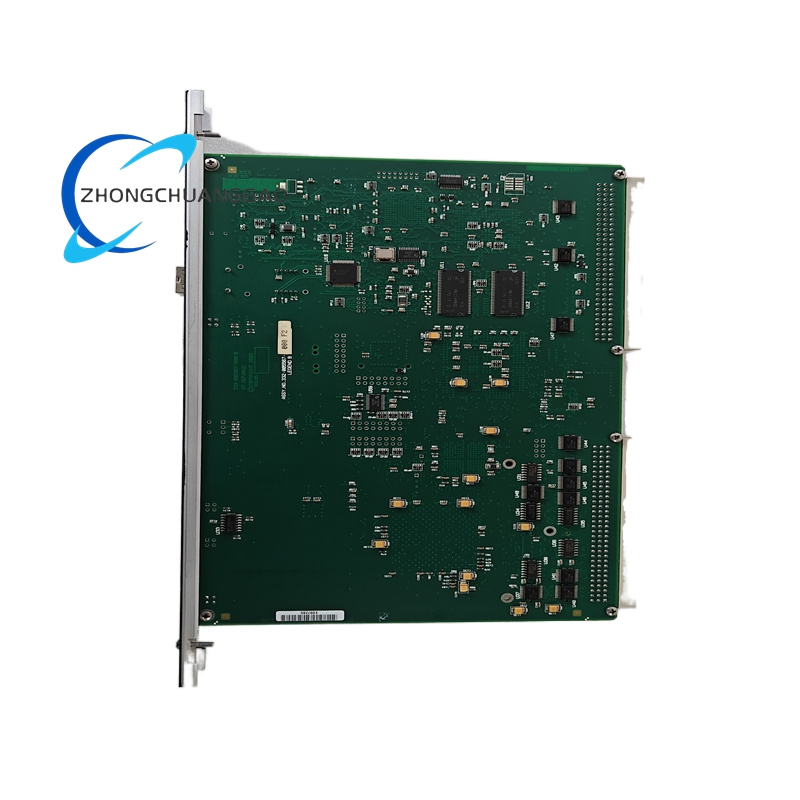

GE IC698CMX016-ED

Description

• Current Requirement: 1.8 amperes for stable operation.
• Fiber Optic Interface: LC-type connector, supporting multi-mode fiber with a maximum transmission distance of 300 meters (984.25 feet).
• Data Transmission Rate: 2.12 Gbaud, with dynamic packet sizes ranging from 4 to 64 bytes.
• Network Capacity: Supports up to 256 nodes per network, facilitating large-scale system integration.
• Redundancy Support: Operates in redundant transmission mode for enhanced data reliability.
• Slot Compatibility: Designed to be installed in slots 3 or 4 of the RX7i main rack.
• Operating Temperature: -20°C to 60°C.
• Storage Temperature: -40°C to 85°C.
• Dimensions: 406.4 x 289.6 x 86.4 millimeters (approximately 16 x 11.4 x 3.4 inches).
• Weight: Approximately 1.72 kilograms (3.8 pounds).

Functional Features

• Deterministic Data Sharing: Ensures predictable data transfer times, crucial for real-time control applications.
• High-Speed Communication: Fiber optic network enables rapid data exchange, minimizing latency.
• Reflective Memory Technology: Allows data to be simultaneously written and read across multiple nodes without CPU intervention.
• Independent Operation: Functions independently of the CPU, reducing processing overhead.
• Compatibility: Works seamlessly with VMIC 5565 series reflective memory devices.
• Diagnostic Capabilities: Equipped with LED status indicators (OK, Config, Own Data, Signal Detect) for easy monitoring and troubleshooting.
• User-Configurable VME Bus Output: Facilitates custom data transmission configurations.
• Hot-Swappable Design: Enables easy installation and maintenance without system shutdown.
• Low Power Consumption: Module power consumption is less than 5 watts, suitable for long-term operation.

Application Scenarios

• Industrial Automation: Ideal for applications requiring synchronized control of multiple devices, such as assembly lines and robotic systems.
• Process Control: Enables real-time monitoring and adjustment of process variables in chemical, petroleum, and pharmaceutical industries.
• Power Generation: Manages data exchange in power plants for efficient generation, transmission, and distribution of electricity.
• Water Treatment: Controls pumps, valves, and filtration systems, ensuring optimal water quality and resource utilization.
• Transportation: Enhances traffic signal control and railway signaling systems for improved safety and traffic flow.
• Mechanical Automation: Drives servo motors and hydraulic actuators in machinery, providing precise motion control.
• Data Acquisition Systems: Collects and shares data from various sensors and instruments in research and testing environments.
• Energy Management: Applied in (power systems), oil, and chemical industries for process control and optimization.
