Product Introduction

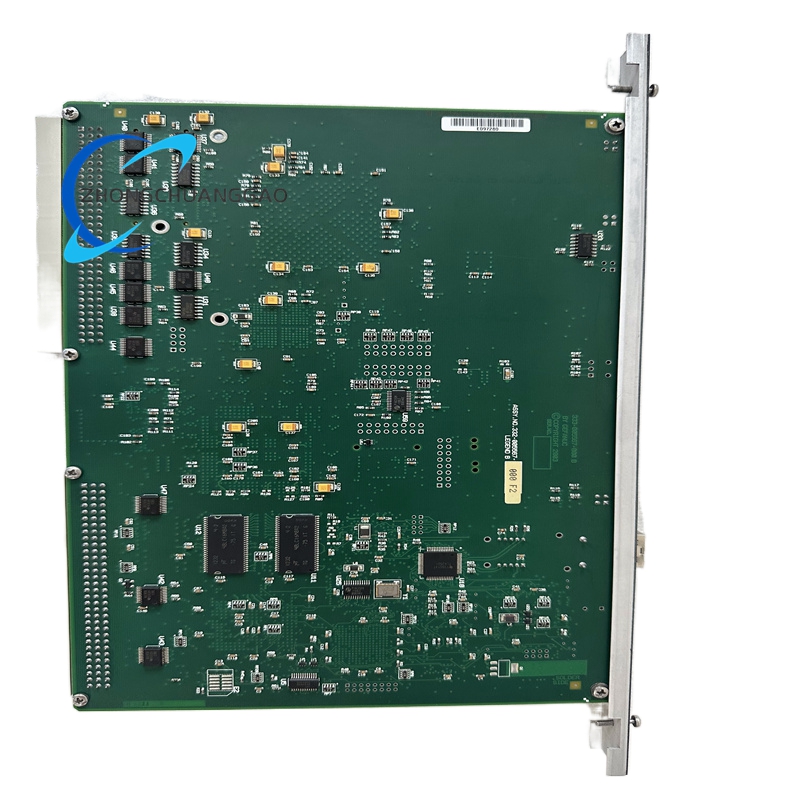

The GE IC698CMX016 is a control memory exchange module designed for the PACSystems RX7i platform. It utilizes reflective memory technology to enable deterministic data sharing between PLCs and compatible devices over fiber optic networks. This module enhances system performance by providing high-speed, reliable data transfer, making it suitable for industrial automation applications requiring real-time communication.
Technical Specifications
- Memory: 16 MB SDRAM with parity checking for data integrity.
- Operating Voltage: +5 VDC, supplied by the power source.
Description
- Current Requirement: 1.8 amperes for stable operation.
- Fiber Optic Interface: LC-type connector, supporting multi-mode fiber with a maximum distance of 300 meters (984.25 feet).
- Data Transmission Rate: 2.12 Gbaud, with dynamic packet sizes ranging from 4 to 64 bytes.
- Network Capacity: Supports up to 256 nodes per network, facilitating large-scale system integration.
- Redundancy Support: Operates in redundant transmission mode for enhanced data reliability.
- Slot Compatibility: Designed to be installed in slots 3 or 4 of the RX7i main rack.
Functional Features
- Deterministic Data Sharing: Ensures predictable data transfer times, crucial for real-time control applications.
- High-Speed Communication: Fiber optic network enables rapid data exchange, minimizing latency.
- Reflective Memory Technology: Allows data to be simultaneously written and read across multiple nodes without CPU intervention.
- Independent Operation: Functions independently of the CPU, reducing processing overhead.
- Compatibility: Works seamlessly with VMIC 5565 series reflective memory devices.
- Diagnostic Capabilities: Equipped with LED status indicators (OK, Config, Own Data, Signal Detect) for easy monitoring and troubleshooting.
- User-Configurable VME Bus Output: Facilitates custom data transmission configurations.
Application Scenarios
- Industrial Automation: Ideal for applications requiring synchronized control of multiple devices, such as assembly lines and robotic systems.
- Process Control: Enables real-time monitoring and adjustment of process variables in chemical, petroleum, and pharmaceutical industries.
- Power Generation: Manages data exchange in power plants for efficient generation, transmission, and distribution of electricity.
- Water Treatment: Controls pumps, valves, and filtration systems, ensuring optimal water quality and resource utilization.
- Transportation: Enhances traffic signal control and railway signaling systems for improved safety and traffic flow.
- Mechanical Automation: Drives servo motors and hydraulic actuators in machinery, providing precise motion control.
- Data Acquisition Systems: Collects and shares data from various sensors and instruments in research and testing environments.
