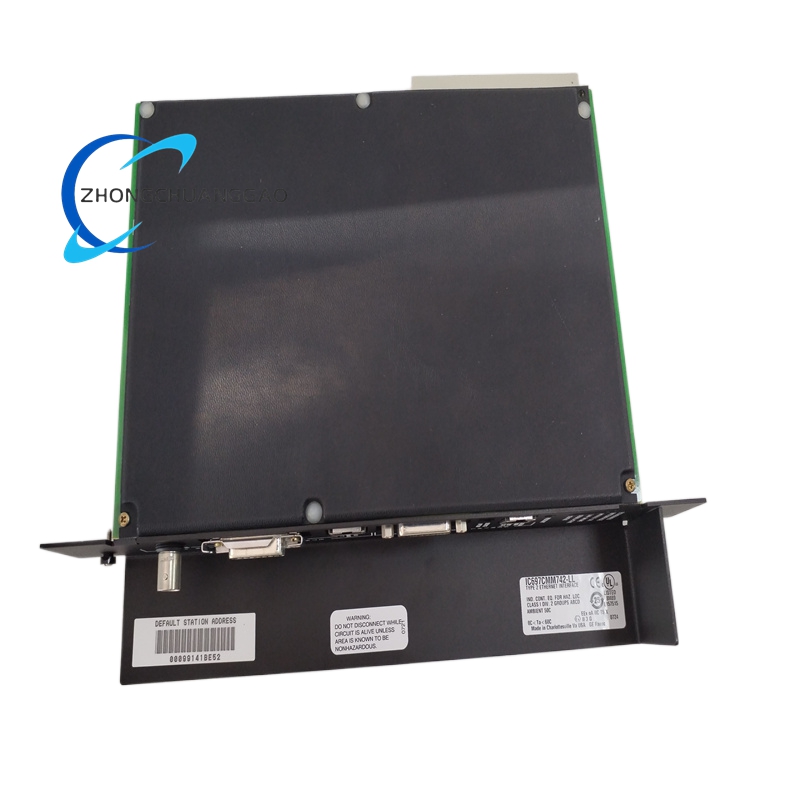

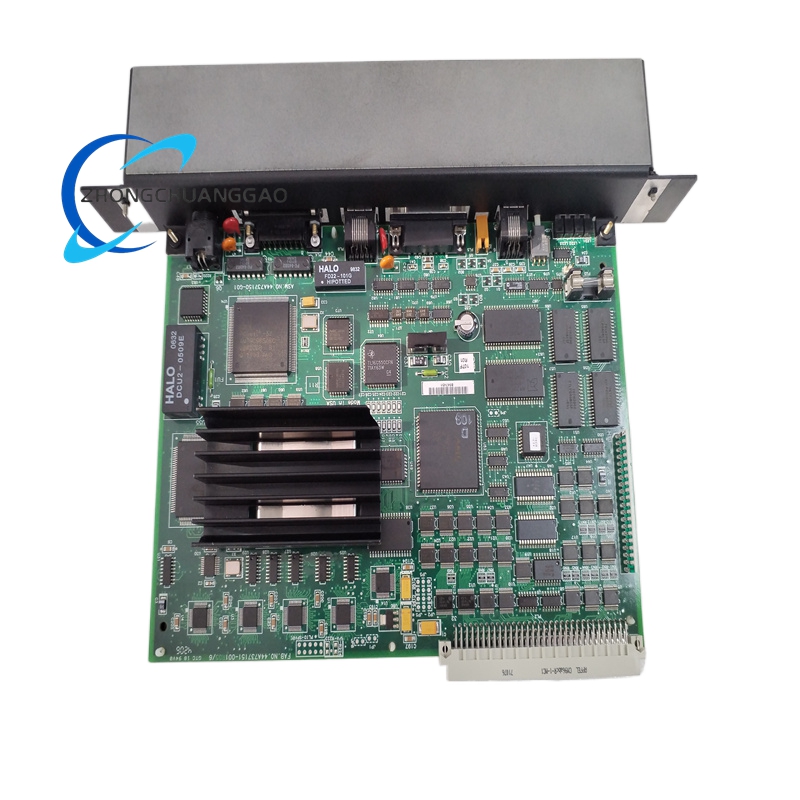

GE IC697CMM742 Communication Processor Module

Description

• Communication Ports: Includes three network ports – 10Base-T (RJ-45), 10Base2 (BNC), and AUI (15-pin D-type) – for versatile connectivity options.
• Serial Ports: Equipped with an RJ-11 serial RS-232 port for local station management and a 15-pin D-type RS-485 port for software configuration and updates.
• Power Consumption: Draws 2A at +5V DC and 0.5A at +12V DC from the backplane.
• Operating Temperature: Functions reliably within a temperature range of 0°C to 50°C.
• Storage Temperature: Withstands storage temperatures from -20°C to 60°C without performance degradation.
• Protection Rating: Front panel meets IP65 standards, offering dust and water resistance.

Functional Features

• Multi-Protocol Support: Enables communication with various devices using protocols such as IEEE 802.2 LLC Type I LAN and IEEE 802.3 MAC 10Mbps LAN.
• High-Speed Data Transfer: Facilitates rapid data exchange between the PLC and connected devices, enhancing system responsiveness.
• Flexible Network Integration: Multiple network ports allow for easy integration into different network topologies and configurations.
• User-Friendly Interface: Combines touchscreen and keyboard inputs for intuitive and efficient operation.
• Robust Design: Built to withstand harsh industrial environments with a high protection rating and wide operating temperature range.
• Remote Management: Supports remote monitoring and control through network connectivity, enabling centralized management of distributed systems.

Application Scenarios

• Manufacturing Automation: Used in production lines for real-time monitoring and control of machinery, improving efficiency and reducing downtime.
• Process Control: Integral to process control systems in industries such as chemical processing, oil and gas, and power generation, ensuring precise control and monitoring of critical parameters.
• Water Treatment: Facilitates remote monitoring and control of water treatment plants, optimizing water quality and distribution.
• Energy Management: Supports the monitoring and control of power systems and grid equipment, enhancing energy efficiency and reliability.
• Transportation Systems: Used in traffic management systems for centralized control and monitoring of traffic signals, improving traffic flow and safety.
• Building Automation: Enables efficient management of HVAC, lighting, and security systems in large commercial buildings, reducing energy consumption and enhancing occupant comfort.
