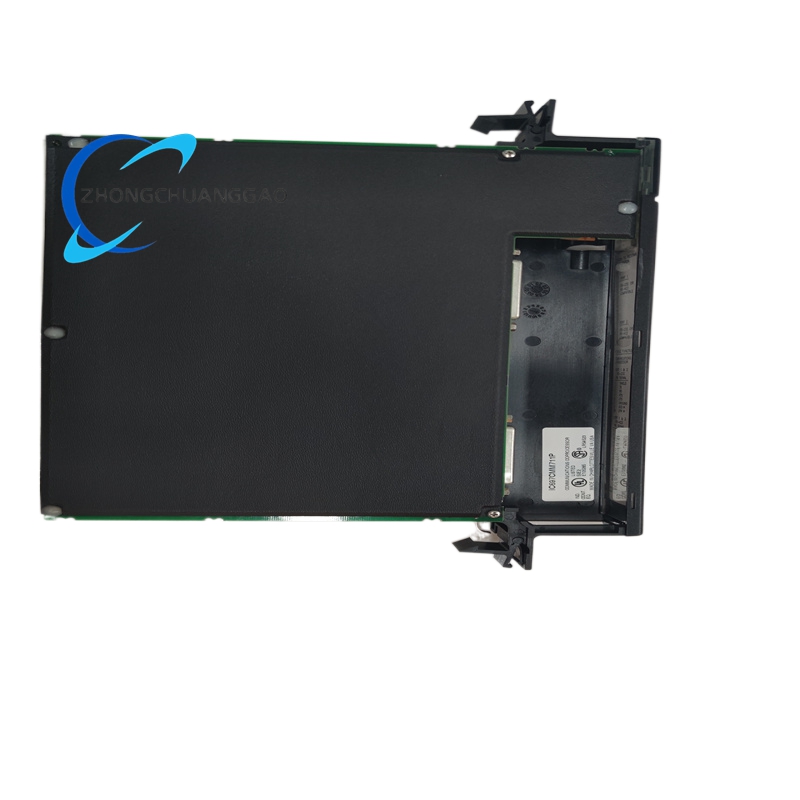

GE IC697CMM711 Communication Processor Module

Description

• Communication Distance: Effective up to 100 meters, depending on cable type and environmental conditions.
• Dimensions: Measures 118mm x 72mm x 35mm, ensuring compact integration into PLC racks.
• Protocol Support: Compatible with RS-232, RS-422, RS-485, MODBUS, PPI, and PROFIBUS protocols.
• Channel Support: Features multiple serial communication channels for simultaneous connections to various devices.

Functional Features

• Protocol Conversion: Converts PLC data into formats suitable for specific serial communication protocols, enabling interoperability with diverse devices.
• Communication Management: Handles connection establishment, data transmission, and session termination, ensuring reliable and accurate data exchange.
• Multi-Channel Communication: Allows the PLC to communicate with multiple external devices concurrently, enhancing system efficiency and flexibility.
• Extensive Protocol Compatibility: Supports a wide range of serial communication protocols, facilitating integration with various industrial equipment and systems.
• User-Friendly Configuration: Equipped with an intuitive interface and configuration tools for easy setup and management of communication parameters.
• Diagnostics and Troubleshooting: Provides rich diagnostic capabilities to assist in quick identification and resolution of communication issues.

Application Scenarios

• Manufacturing Automation: Integrates legacy machinery with modern PLC systems in automotive and electronics manufacturing, enabling real-time monitoring and control.
• Process Control: Facilitates communication between PLCs and field devices in chemical processing, oil and gas, and power generation applications, ensuring precise process management.
• Water Treatment: Enables monitoring and control of water treatment processes, including filtration, disinfection, and distribution systems, through reliable serial communication.
• Energy Management: Supports integration of renewable energy sources and grid management systems by providing scalable and reliable communication solutions.
• Building Automation: Controls HVAC, lighting, and security systems in large commercial buildings, ensuring efficient energy use and occupant comfort through seamless data exchange.
• Transportation Systems: Manages signaling and control systems in rail and mass transit applications, enhancing safety and reliability through redundant communication paths.
