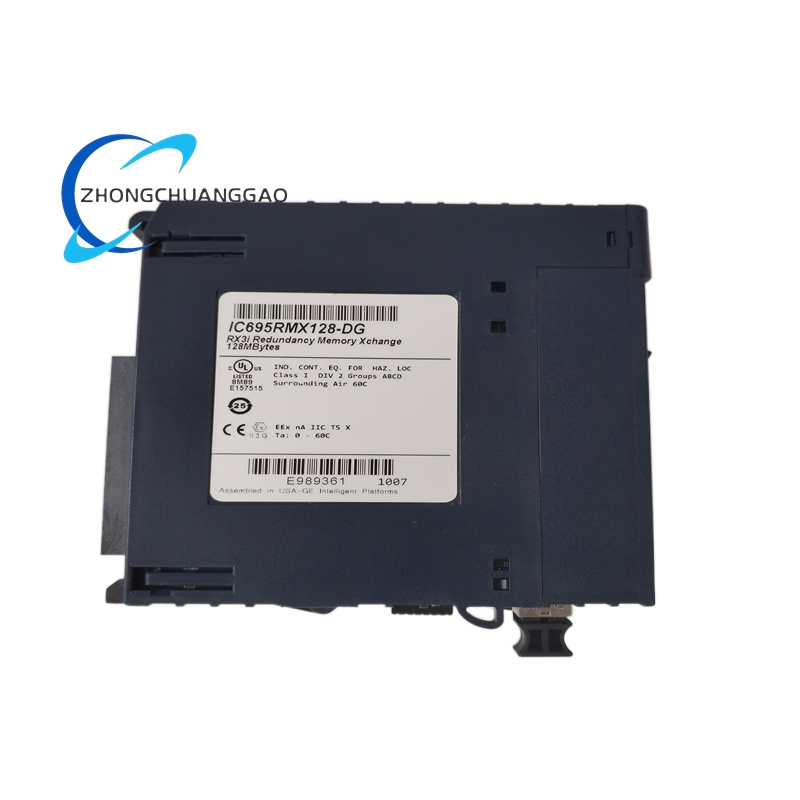

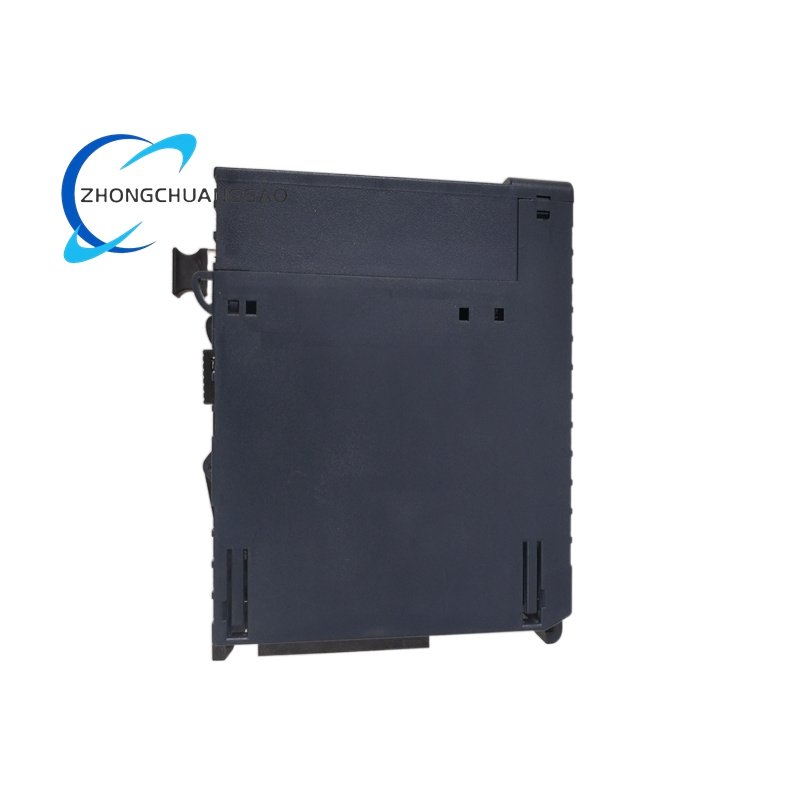

GE IC695RMX128 PACSystems RX3i Redundant Memory Exchange Module

• Node Capacity: Up to 256 nodes in a reflective memory network
• Power Requirements: 580 mA @ 3.3 VDC and 220 mA @ 5 VDC
• Operating Temperature: -40°C to +85°C (storage temperature: -55°C to +105°C)
• Vibration and Shock Resistance: Complies with IEC 60068-2-6 (5-500Hz, 5G) and IEC 60068-2-27 (100G, 6ms half-sine wave), tested to MIL-STD-810G standards
• Certifications: CE, UL, cUL, ATEX Zone 2/22 (explosion-proof certification), IEC 61508 SIL2 functional safety certification
• Data Integrity: ECC (Error-Correcting Code) technology for automatic detection and correction of single-bit memory errors
• Memory Allocation: Supports dynamic allocation to user programs, historical databases, alarm logs, etc.
• Data Compression: Built-in lossless compression algorithm (up to 5:1 ratio) for efficient data storage
• Memory Mirroring: Automatic switching to backup memory in case of primary memory failure

Functional Features

• Redundant Design: Ensures data redundancy and system reliability in critical applications
• Reflective Memory Technology: Acts as a single node in a reflective memory topology, enabling real-time data synchronization across up to 256 nodes
• High-Speed Data Transmission: Fiber optic network supports data transfer rates up to 2.12 Gbaud, ensuring minimal latency
• Hot-Swappable: Allows maintenance without system shutdown, reducing downtime
• Network Error Detection: Enhances data transmission accuracy and reliability
• Configurable Network Memory Offset: Provides flexibility in network configuration
• Easy Configuration: RMX node configuration is performed through programming software, eliminating the need for jumpers or DIP switches
• Real-Time Monitoring: Offers memory usage monitoring (accuracy ±1%), bad block detection, and automatic isolation

Application Scenarios

• Petrochemical Industry: Real-time database storage for complex refining processes (e.g., catalytic cracking, hydrocracking) and distributed control in chemical plants (e.g., ethylene cracking furnace temperature/pressure monitoring)
• Steel Manufacturing: High-availability control systems for blast furnaces, enabling millisecond-level sampling and 24-hour historical storage of parameters like furnace top pressure and gas flow
• Power Generation: Distributed energy management in smart grids, ensuring reliable operation of power generation and distribution systems
• Water Treatment: Large-scale wastewater treatment plants, supporting real-time monitoring and control of treatment processes
• Rail Transportation: Complex logic control in rail transit systems, ensuring safe and efficient operation of trains
• Automotive Manufacturing: Production line control, robot integration, and conveyor systems, enhancing production efficiency and quality
• Food and Beverage: High-speed packaging machine control, batch management, and temperature monitoring, ensuring product quality and safety

Industry Adaptability
The IC695RMX128 is well-suited for industries requiring continuous operation and high system reliability, including:

• Oil and gas exploration and production
• Chemical processing and refining
• Power generation and distribution
• Metallurgical and mining operations
• Pharmaceutical and chemical manufacturing
• Water and wastewater treatment
• Rail and mass transit systems
• Automotive and heavy machinery production
