Product Overview

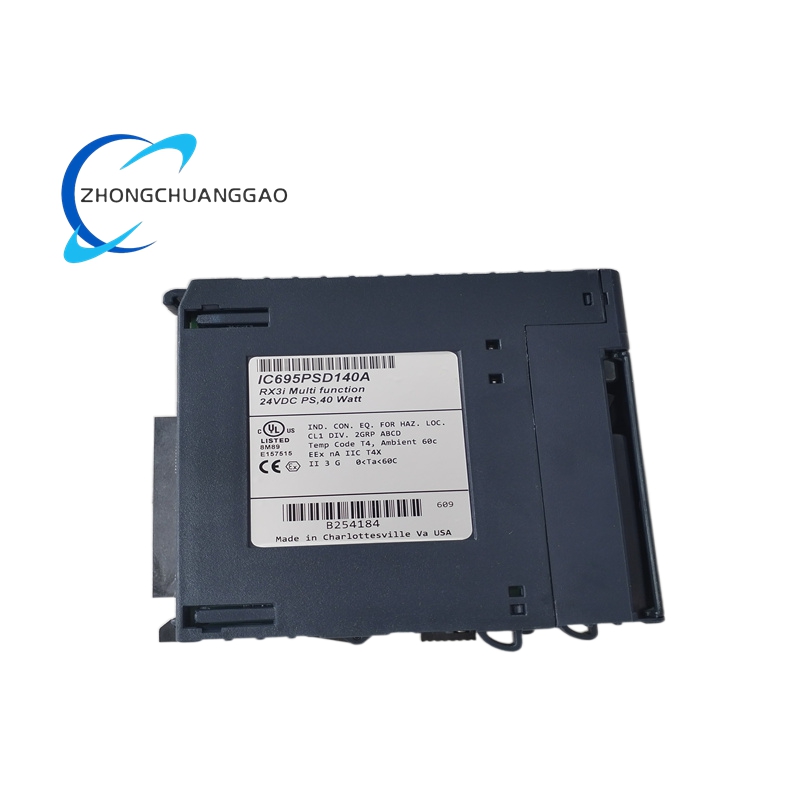

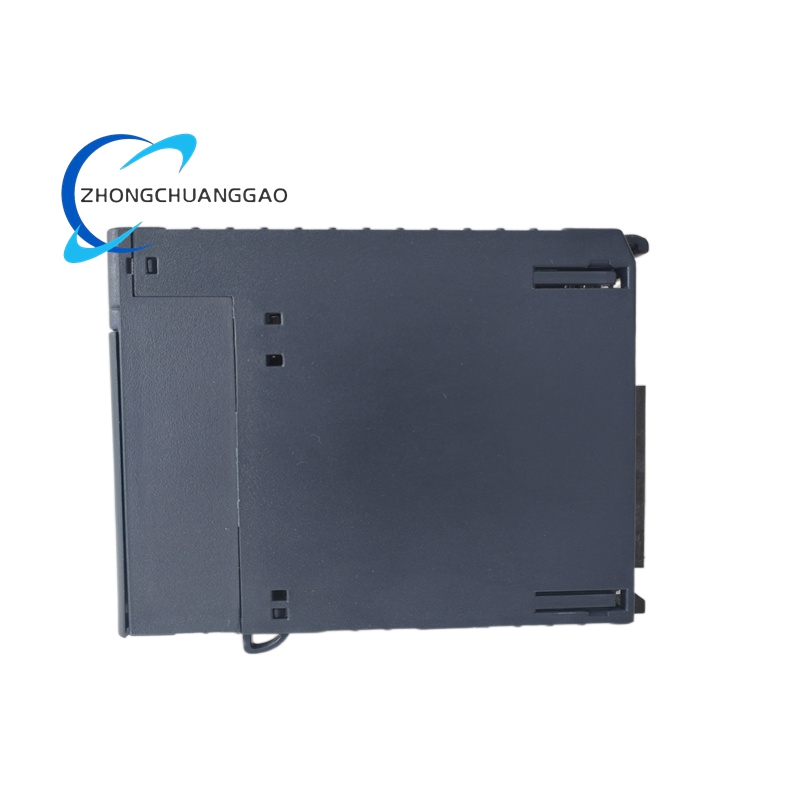

The GE IC695PSD140 is a high-performance DC power supply module designed for industrial automation systems. It converts external AC or DC input into stable DC voltages required by PLC backplanes, CPUs, I/O modules, and other electronic components. This module ensures reliable operation in complex industrial environments, supporting applications in mechanical manufacturing, process control, energy management, and water treatment.
Technical Specifications
- Input Voltage Range:
- AC: 85–264 V (47–63 Hz)
- DC: 18–30 V (start-up mode) / 12–30 V (running mode)
Description
- Output Voltages:
- +24 VDC (primary system power)
- +5.1 VDC (logic power for RX3i backplane and modules)
- +3.3 VDC (internal use for specific RX3i modules)
- Output Current:
- +5.1 VDC: Up to 24 A
- +24 VDC: Up to 2.5 A (non-isolated, for driving relay modules and other field devices)
- Output Power:
- Total output power: 40 W
- Input power (max): 60 W
- Efficiency: >85% (typical, reducing energy waste and heat generation)
- Line Regulation: <±0.1% (output remains stable despite input voltage fluctuations)
- Load Regulation:
- +5 V output: <±0.5%
- +24 V output: <±2.0%
- Operating Temperature Range: -40°C to +70°C (industrial-grade wide temperature design for extreme conditions)
- Storage Temperature Range: -40°C to +85°C
- Protection Features: Overload, overvoltage, short-circuit, and input reverse polarity protection

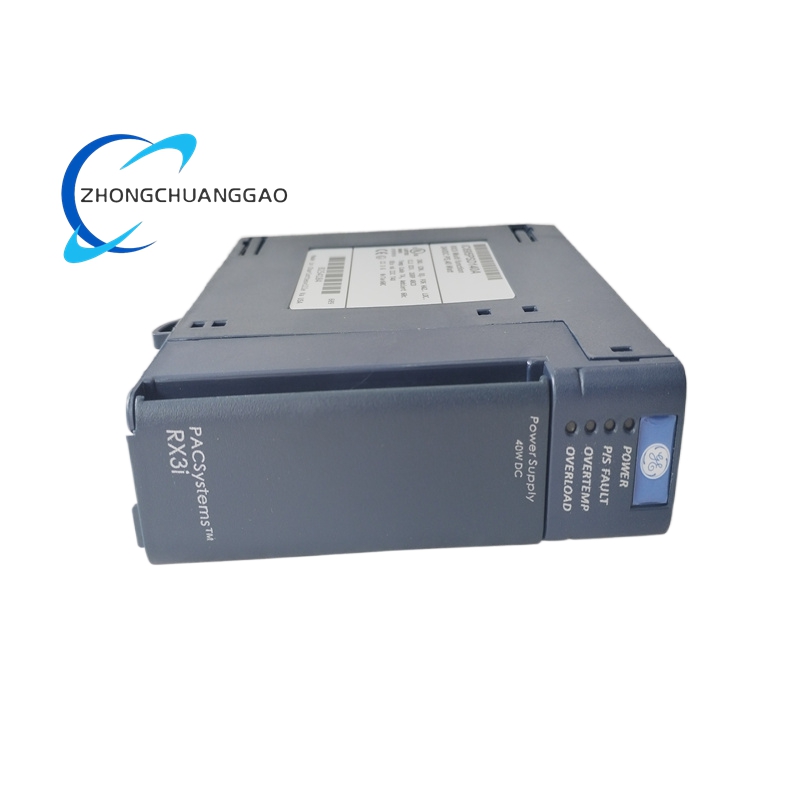

- LED Indicators: Power status, P/S fault, overtemperature, overload
- Average Mean Time Between Failures (MTBF): Extremely long (industrial-grade design to minimize downtime risks)
- Installation: Left-mounted in RX3i series racks, supporting modular expansion
Functional Features
- Wide Input Range: Adapts to global grid voltage fluctuations, ensuring stable operation across regions.
- High Conversion Efficiency: Reduces energy loss and heat generation, improving overall system efficiency.
- Multiple Protection Mechanisms: Safeguards against electrical faults, enhancing system reliability.
- Compact Design: Space-saving form factor for easy integration into industrial control cabinets.
- Hot-Swappable: Enables maintenance without system shutdown, minimizing downtime.
- Status Monitoring: LED indicators provide real-time feedback on power health and faults.
- Modular Structure: Designed for direct installation in PLC racks, supporting scalable power distribution.
- EMC Compliance: Meets industrial electromagnetic compatibility standards for interference-free operation.
- N+1 Redundancy Support: Allows multiple modules to operate in parallel for load balancing or redundancy, improving system reliability.
- Keep Time: Typical value of 20 ms at full load to ensure stable system operation during brief power interruptions.
Application Scenarios
- PLC Control Systems: Central power supply for large-scale PLC cabinets in automotive, packaging, and assembly lines.
- Process Control: Stable power for auxiliary equipment in power plants, chemical processing, and refining.
- Water Treatment: Reliable power for pumps, filtration systems, and wastewater management facilities.
- Energy Management: UPS configuration for uninterrupted power in renewable energy systems (e.g., wind turbines, solar farms).
- CNC Machinery: Synchronized power control for spindles and actuators in precision manufacturing.
- Rail Transit: Signal and traction control in subways and light rail systems.
- Retrofit Projects: Replacement of aging power modules to enhance system reliability and performance.
- Hazardous Environments: Certified for use in explosive gas or dust environments (ATEX/IECEx certification available for specific versions).
