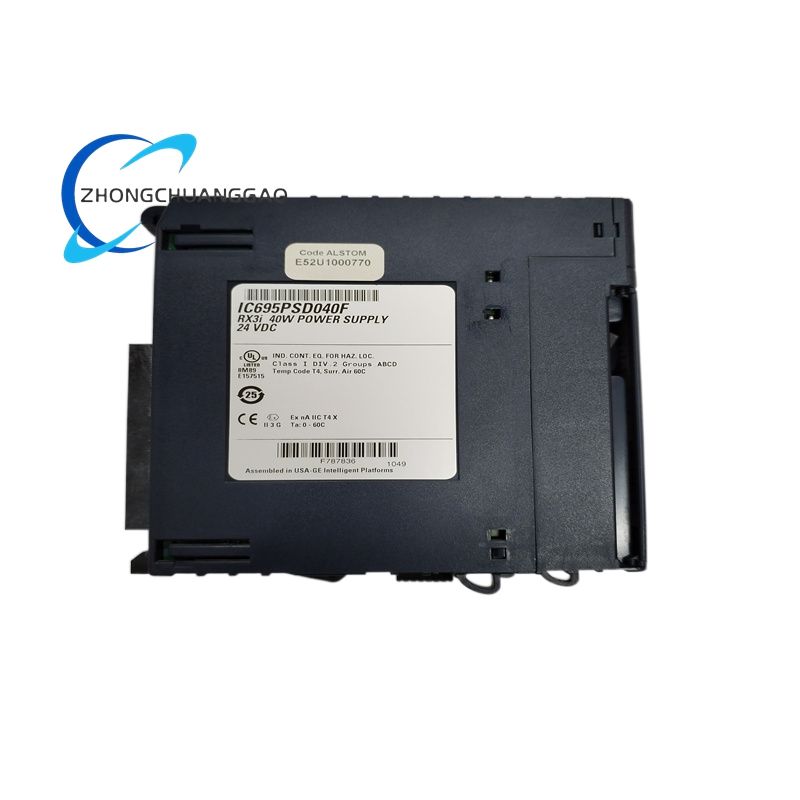

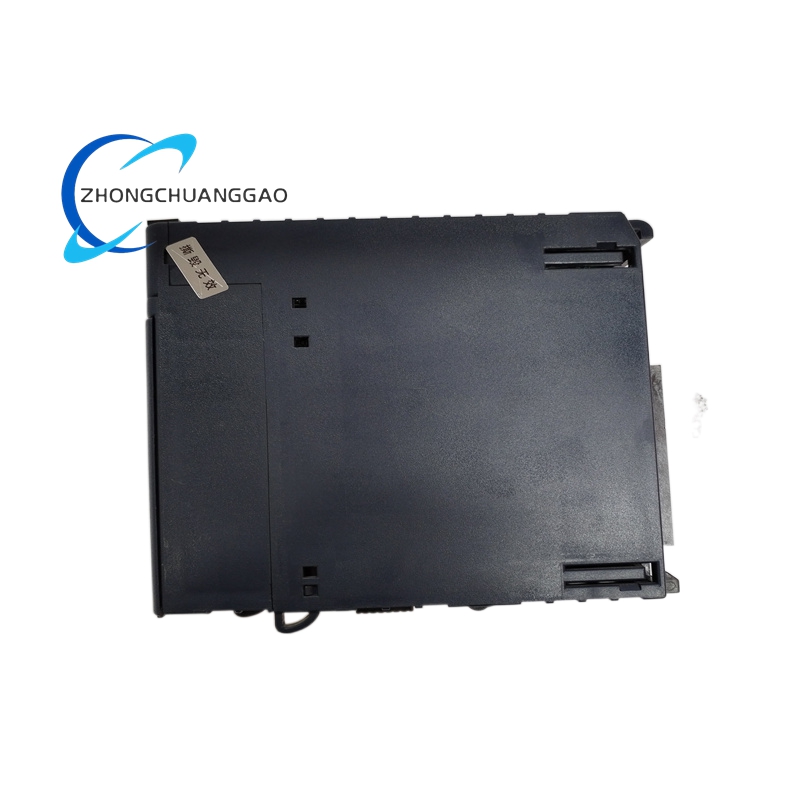

GE IC695PSD040F Power Supply Module

Description

• Output Voltages:
  • +24 VDC (primary system power)
  • +5.1 VDC (standard output)
  • +3.3 VDC (for RX3i modules)
• Output Current: 0–6 A or 0–9 A (configurable)
• Output Power: 40 W (load capacity) / 60 W (input power)
• Efficiency: Up to 90%
• Ripple/Noise: ≤50 mV
• Dimensions: ~125 mm x 90 mm x 38 mm
• Weight: ~0.5 kg
• Operating Temperature: -25°C to 70°C
• LED Indicators: Power status, P/S fault, overtemperature, overload
• Protection Features: Overload, overvoltage, short-circuit, and overheating protection

Functional Features

• Wide Input Range: Adapts to global grid voltage fluctuations, ensuring stable operation across regions.
• High Conversion Efficiency: Reduces energy loss, improving overall system efficiency.
• Multiple Protection Mechanisms: Safeguards against electrical faults, enhancing system reliability.
• Compact Design: Space-saving form factor for easy integration into industrial control cabinets.
• Hot-Swappable: Enables maintenance without system shutdown, minimizing downtime.
• Status Monitoring: LED indicators provide real-time feedback on power health and faults.
• Modular Structure: Designed for direct installation in PLC racks, supporting scalable power distribution.
• EMC Compliance: Meets industrial electromagnetic compatibility standards for interference-free operation.

Application Scenarios

• PLC Control Systems: Central power supply for large-scale PLC cabinets in automotive, packaging, and assembly lines.
• Process Control: Stable power for auxiliary equipment in power plants, chemical processing, and refining.
• Water Treatment: Reliable power for pumps, filtration systems, and wastewater management facilities.
• Energy Management: UPS configuration for uninterrupted power in renewable energy systems (e.g., wind turbines, solar farms).
• CNC Machinery: Synchronized power control for spindles and actuators in precision manufacturing.
• Rail Transit: Signal and traction control in subways and light rail systems.
• Retrofit Projects: Replacement of aging power modules to enhance system reliability and performance.

Additional Notes

• The module supports daisy-chaining of up to two units for expanded power capacity.
• Its flow-blue protective casing and on/off switch (behind a safety door) prevent accidental operation.
• Wiring terminals accept 14–18 AWG wires with a 6 A rating, ensuring secure electrical connections.
• Designed for universal backplanes, it integrates seamlessly with RX3i PACSystems controllers.
