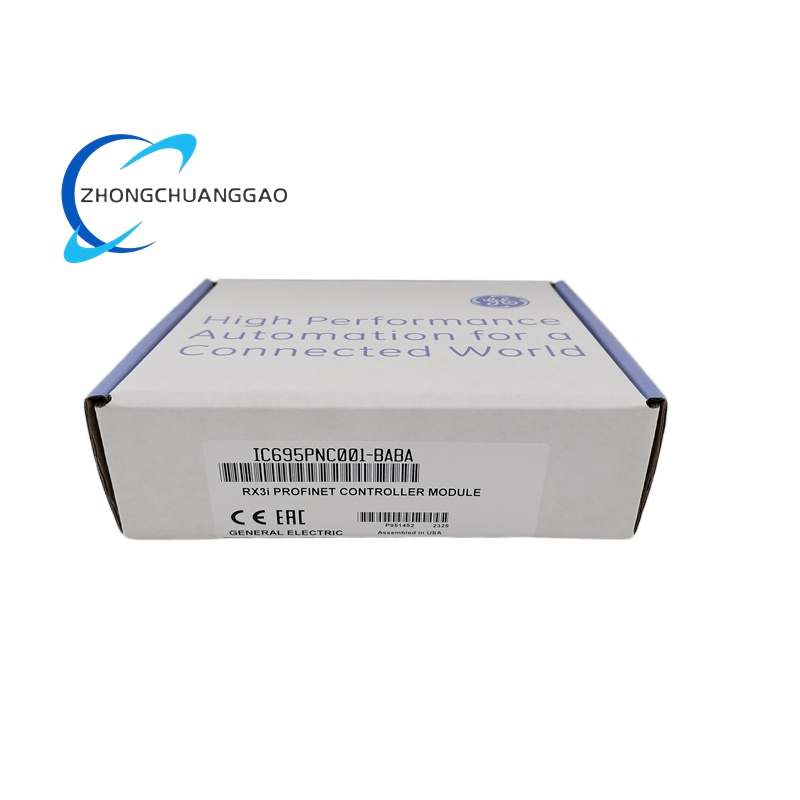

GE IC695PNC001

Description

• Processor Speed: 200 MHz for efficient data processing
• Memory: Adequate storage for control logic and programs
• Backplane Compatibility: Compatible with IC695CHS007, CHS012, or CHS016 backplanes
• Ports:
  • 2 RJ-45 ports for Ethernet connectivity
  • 2 SFP slots (SFP transceivers sold separately) for fiber-optic communication
  • 1 micro-USB port for configuration and diagnostics
• Device Support:
  • Up to 64 devices per controller
  • Up to 2048 I/O points per network (128 per I/O controller)
• Data Update Rates: Configurable from 1 ms to 512 ms
• Power Consumption:
  • 0.5 A without SFP devices
  • 2.2 A with two SFP devices
  • 1.5 A at 5.5 VDC
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Hot Swapping: Supported (requires firmware revision 2.51 or higher)

Functional Features

• High-Speed Communication: Supports 10/100 Mbps transmission rates for rapid data exchange.
• PROFINET Connectivity: Acts as a PROFINET controller, enabling integration with Siemens and other PROFINET-compatible devices.
• Flexible Configuration: Offers configurable data update times to meet diverse application requirements.
• Dual Network Support: Features two RJ-45 ports and two SFP slots for redundant network connections.
• Advanced Diagnostics: Provides comprehensive diagnostics for monitoring network status and troubleshooting issues.
• Firmware Upgrades: Supports in-field firmware upgrades via WinLoader software for enhanced functionality.
• Time Synchronization: Supports SNTP time servers for accurate timekeeping in distributed systems.
• Robust Design: Built to withstand harsh industrial environments with a wide operating temperature range.

Application Scenarios

• Factory Automation: Connects RX3i controllers to PROFINET-based manufacturing lines, enabling real-time control of Siemens PLCs, HMI panels, and drives.
• Process Control: Integrates with DCS systems in chemical, petroleum, and natural gas industries for precise process management.
• Mechanical Automation: Links PLCs with PROFINET-enabled servo drives and sensors for accurate motion control in mechanical systems.
• Infrastructure: Applied in water treatment, energy management, and transportation systems for remote monitoring and data acquisition.
• Building Automation: Facilitates communication between PLCs and intelligent building management systems for centralized control of lighting, HVAC, and security systems.
