Product Short Description
Product Introduction

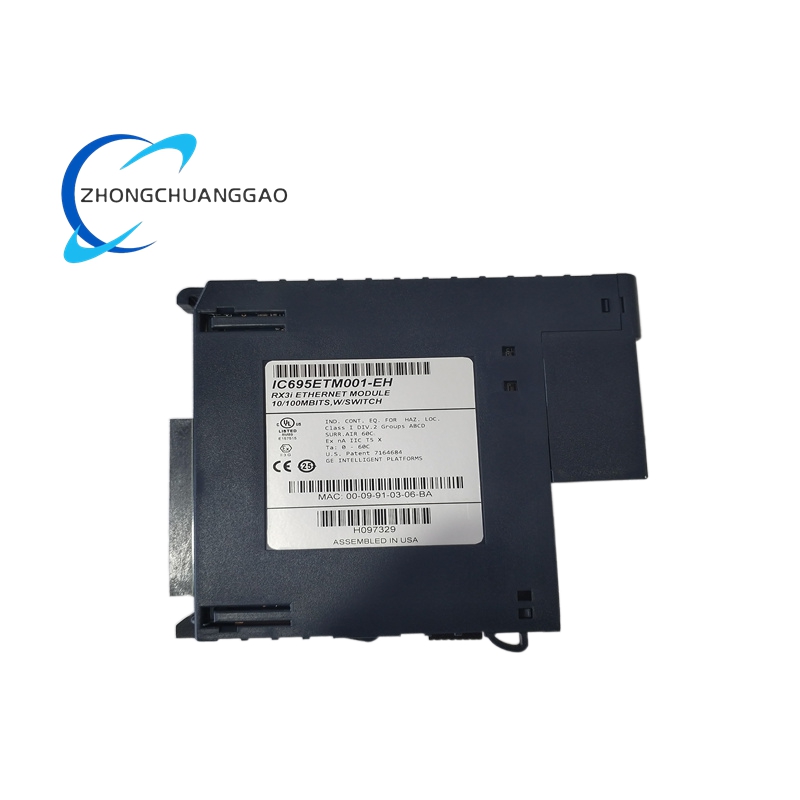

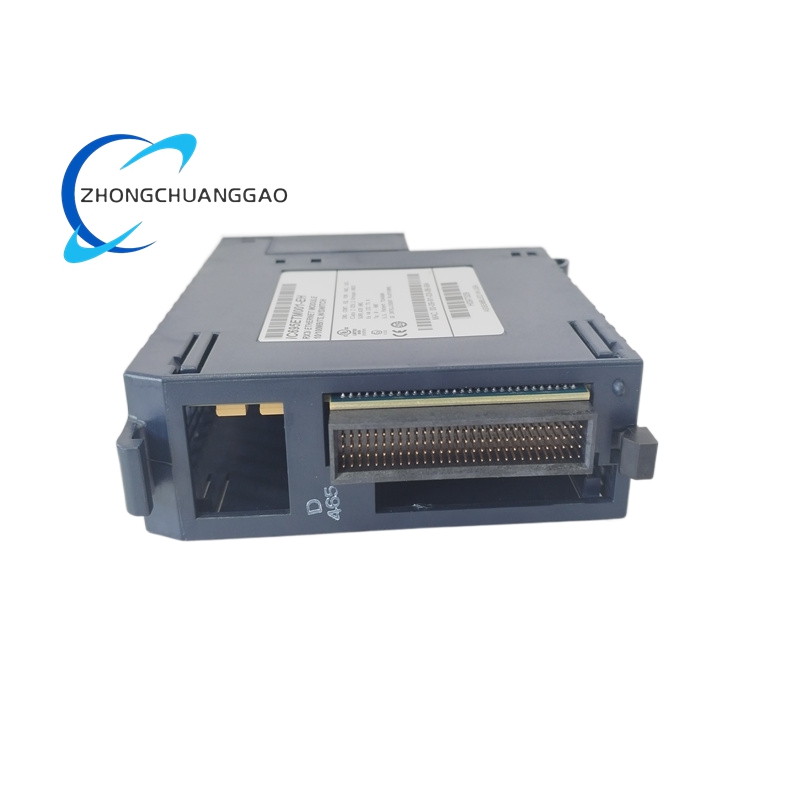

The GE IC695ETM001 is an Ethernet communication module designed for the PACSystems RX3i series by GE Automation. It enables RX3i controllers to connect to Ethernet networks, facilitating communication with other PACSystems devices, Series 90 controllers, VersaMax controllers, and upper-level monitoring systems. This module supports multiple industrial Ethernet protocols, ensuring efficient and reliable data exchange in automation applications.
Technical Specifications
- Ethernet Ports: Typically equipped with 2 RJ45 ports supporting 10/100 Mbps transmission rates with auto-negotiation.
- Supported Protocols: SRTP (Service Request Transport Protocol), Modbus TCP (Server & Client), and Ethernet Global Data (EGD).
Description
- IP Address Allocation: Supports 1 IP address (some models may support 2).
- Embedded Switch: Features an integrated Ethernet switch for daisy-chaining Ethernet nodes, reducing the need for external switches.
- Serial Port: Includes 1 RS-232 Station Manager port for configuration and diagnostics.
- Processor Speed: Operates at 200 MHz for efficient data processing.
- Operating Temperature: 0°C to +60°C (working), -40°C to +85°C (storage).
- Backplane Compatibility: Compatible with IC695CHS007, CHS012, or CHS016 backplanes.
- Hot Swapping: Supports hot insertion and removal, even with the processor in RUN mode (requires firmware revision 2.51 or higher).
Functional Features
- Multi-Protocol Support: Enables communication with diverse devices and systems using SRTP, Modbus TCP, and EGD protocols.
- High-Speed Ethernet: Supports 10/100 Mbps transmission rates to meet the demands of high-data-volume and real-time applications.
- Integrated Switch: Simplifies network topology construction and reduces external hardware requirements.
- Station Manager Function: Provides online monitoring and diagnostic capabilities via the RS-232 port.
- LED Indicators: Features LEDs for Ethernet OK, LAN OK, LOG empty, individual port status, and speed, facilitating real-time status monitoring.
- Firmware Upgrade: Supports in-field firmware upgrades through GE Fanuc software tools for easy maintenance and feature expansion.
- Time Synchronization: Supports time synchronization with SNTP time servers over Ethernet TCP/IP.
Application Scenarios
- Factory Automation: Connects PLCs with HMI, SCADA, MES systems, and other control devices for seamless data exchange and process monitoring.
- Process Control: Integrates DCS systems with PLCs in chemical, petroleum, and natural gas industries, enabling Ethernet communication with field devices.
- Mechanical Automation: Links PLCs with Ethernet-enabled servo drives, sensors, and other equipment for precise motion control.
- Infrastructure: Applied in water treatment, energy management, and other fields for remote monitoring and data acquisition.
- Building Automation: Facilitates communication between PLCs and intelligent building management systems for centralized control of lighting, HVAC, and security systems.
