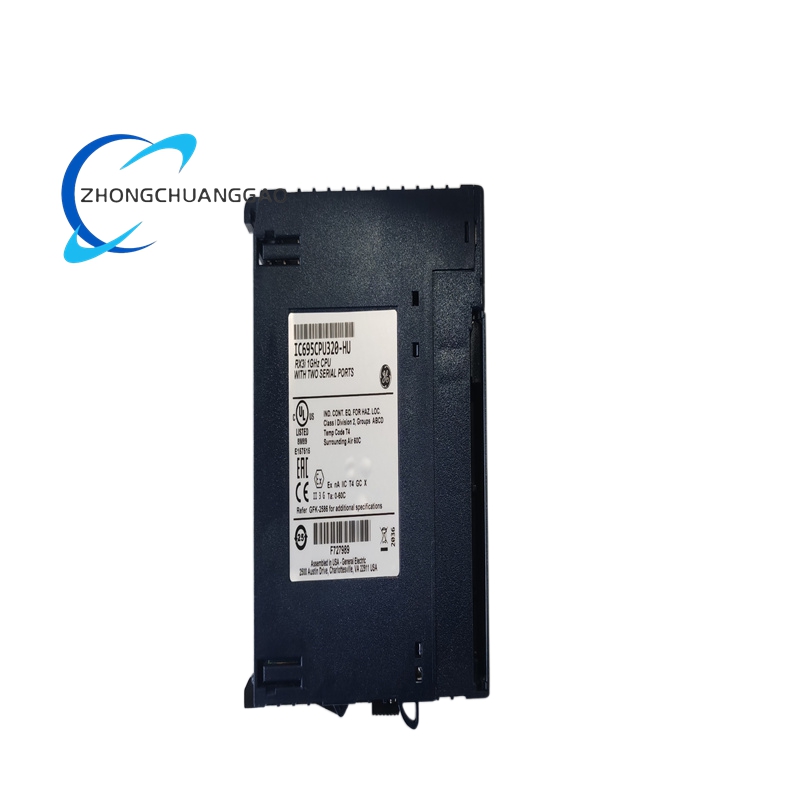

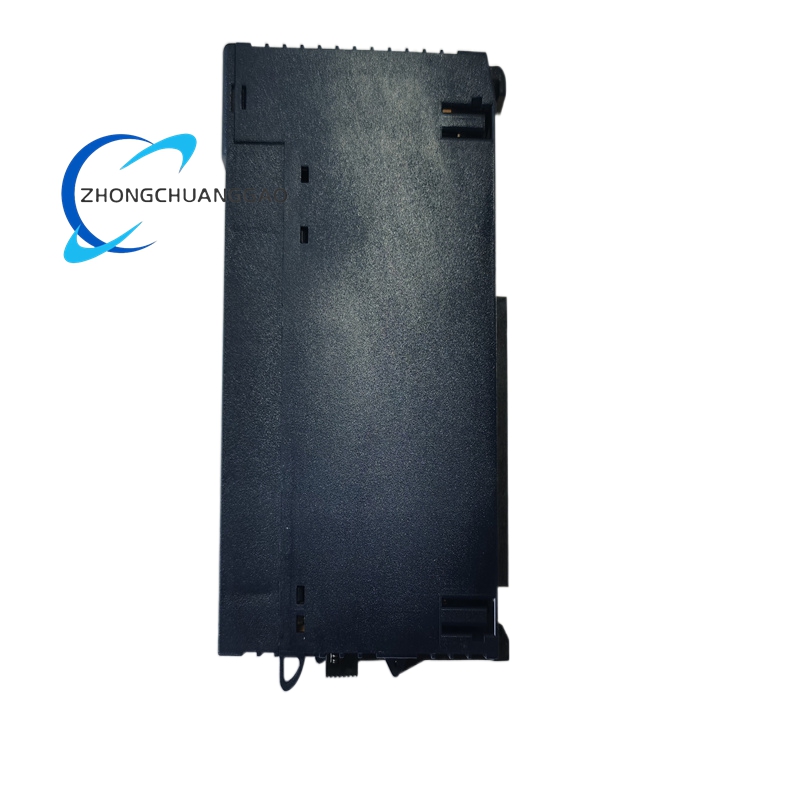

The GE IC695CPU320HU is a high-performance, industrial-grade programmable automation controller designed for real-time control of machines, processes, and material handling systems. Built on the PACSystems RX3i platform, it integrates robust processing capabilities with flexible communication options to meet the demands of complex automation applications.
Technical Specifications
- Processor: 1 GHz Intel Celeron-M microprocessor
- Memory: 64 MB user RAM (battery-backed) and 64 MB non-volatile flash memory
- I/O Capacity: Supports up to 32K discrete I/O points and 32K analog I/O words
Description
- Communication Ports:
- Two independent serial ports (RS-232/RS-485)
- Supports SNP, Serial I/O, and Modbus RTU (master/slave) protocols
- Ethernet: Optional dual 10/100/1000 Mbps Ethernet ports for high-speed data transfer and redundancy
- Backplane Design: Dual backplane support (RX3i PCI and 90-30 serial bus)
- Operating Temperature: -25°C to 70°C (-13°F to 158°F)
- Protection Class: IP20 (standard enclosure)
Functional Features
- Real-Time Control: Enables precise timing and synchronization for critical industrial processes.
- Redundancy Support: Supports hot-standby redundancy to ensure continuous operation in case of component failure.
- Flexible Programming: Compatible with multiple programming languages, including ladder logic (LD), structured text (ST), function block diagram (FBD), and C.
- Auto Error Detection/Correction: Built-in diagnostics for identifying and correcting faults automatically.
- LED Indicators: Eight front-facing LEDs for monitoring CPU status (e.g., Run, Outputs Enabled, System Fault, Battery Status).
- USB Support: One USB 2.0 port for quick program uploads/downloads via USB drives or smartphones.
- Expansion Capability: Supports up to eight local expansion racks and 512 program blocks (128 KB max per block).
Application Scenarios
- Manufacturing Automation: Controls production lines, robotic systems, and assembly machines.
- Process Control: Manages chemical processing, oil and gas refining, and power generation.
- Material Handling: Optimizes conveyor systems, packaging lines, and warehouse logistics.
- Water Treatment: Regulates pumping stations, filtration systems, and wastewater management.
- Energy Sector: Monitors and controls renewable energy systems (e.g., wind turbines, solar farms).
- Building Automation: Integrates HVAC, lighting, and security systems for smart buildings.
Development Environment
- Software: Proficy Machine Edition or Logic Developer Machine Edition 7.0+ for configuration, programming, and diagnostics.
- OPC UA Compliance: Enables seamless integration with third-party devices (e.g., SCADA, MES systems).
Certifications and Compliance
- ISO 13849 SIL2 Certification: Ensures safety compliance for critical applications.
- Industrial Standards: Meets IEC 61131-3 and other international automation standards.
Environmental Adaptability
- Vibration Resistance: Withstands 5–9 Hz/3.5 mm vibration (IEC 60068-2-6 compliant).
- Humidity Tolerance: Operates in environments with 5–95% relative humidity (non-condensing).
