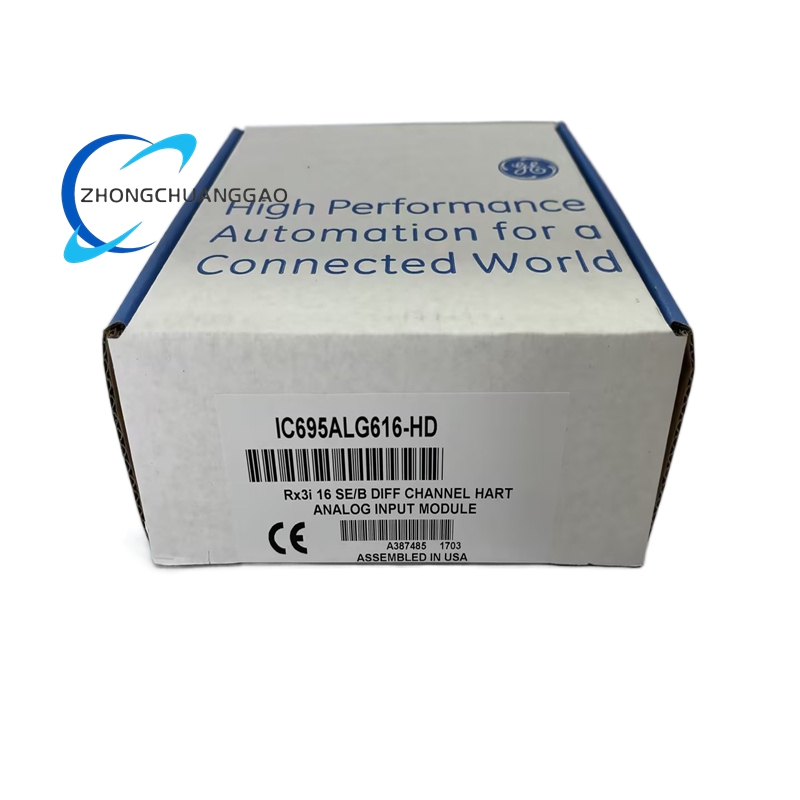

Product Short Description
Technical Specifications
- Input Channels:
- 16 single-ended or 8 differential input channels (configurable).
- Supports standard industrial signals:
- Current: 0–20 mA, 4–20 mA, ±20 mA.
- Voltage: ±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V.
- Resolution: 24-bit ADC (Analog-to-Digital Converter) for high-precision signal conversion.
- Accuracy: ±0.1% of full scale for voltage signals; ±0.35% for current signals.
Description
- Filtering: Configurable low-pass filters with cutoff frequencies of 8 Hz, 12 Hz, 16 Hz, 40 Hz, 200 Hz, and 500 Hz to suppress high-frequency noise.
- Isolation: Non-isolated design; channels share a common ground.
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Storage Temperature: -40°C to 85°C (-40°F to 185°F).
- Humidity: 5% to 95% non-condensing.
- Vibration Resistance: 27G for 2 milliseconds, 0–0.06 Hz displacement peak of 0.91 mm (2.6 inches).
- Power Supply: Backplane-powered (5V DC, max 450 mA; 3.3V DC, max 600 mA).
Functional Characteristics
- Flexible Input Modes:
- Single-ended mode for 16 independent channels (ideal for isolated signal sources).
- Differential mode for 8 channel pairs (reduces common-mode noise in long-distance or high-interference environments).
- High-Precision Conversion: 24-bit ADC ensures microvolt-level sensitivity for voltage signals and microamp-level sensitivity for current signals.
- Advanced Diagnostics:
- Module Status LED (OK LED): Green indicates normal operation; blinking or off signals faults.
- Field Status LED: Green for healthy channels; yellow for abnormalities.
- Terminal Block LED (TB LED): Red for disconnected terminals; green for proper connection.
- Alarm Functions: Configurable four-level alarms (low, low-low, high, high-high) and rate-of-change alarms to detect abrupt signal variations.
- Protection Mechanisms: Open-circuit detection, overvoltage, and overcurrent protection safeguard the module and connected devices.
- Automatic Calibration: Performs self-calibration during startup to eliminate zero-point drift and ensure measurement accuracy.
- Software Support: Configured via Proficy Machine Edition (PME) software without jumpers or DIP switches, simplifying parameter setup and maintenance.
Application Scenarios
- Manufacturing: Monitors pressure, flow, and temperature sensors in production lines for real-time process control.
- Energy Management: Collects current/voltage signals from power meters to optimize energy consumption and grid stability.
- Water Treatment: Tracks liquid levels and chemical concentrations in filtration systems for automated adjustments.
- Oil & Gas: Supports safe operations in explosive environments (Class I, Division 2 certified) by monitoring pipeline pressure and equipment status.
- Data Acquisition Systems: Provides high-resolution signal conversion for experimental data recording and analysis in research facilities.
Key Advantages
- Multi-Channel Flexibility: Configurable as 16 single-ended or 8 differential channels to adapt to diverse signal types.
- High Signal Integrity: 24-bit resolution and configurable filtering ensure accurate data acquisition even in noisy environments.
- Robust Design: Withstands extreme temperatures, humidity, and vibrations, making it suitable for harsh industrial settings.
- Ease of Use: LED indicators and PME software enable quick troubleshooting and parameter adjustments without system downtime.
- Cost-Effective: Eliminates the need for external signal conditioners by supporting standard industrial current/voltage signals directly.
