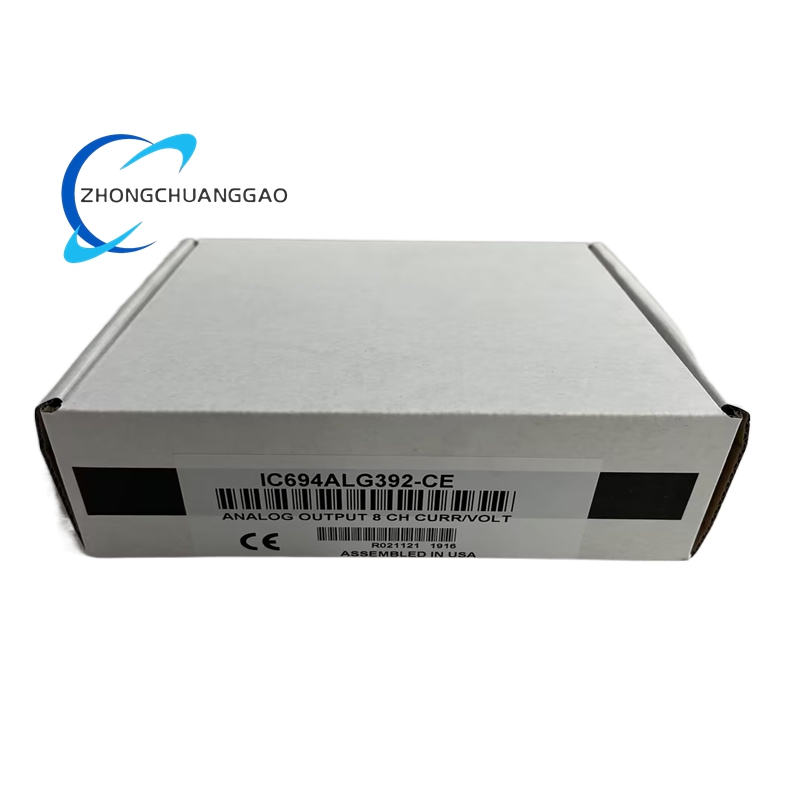

GE IC694ALG392 Analog Output Module

Description

• Power Consumption: 110 mA @ 5 VDC (or user-provided 24 VDC).
• Operating Temperature: 0°C to 60°C (32°F to 140°F).
• Storage Temperature: -40°C to 85°C (-40°F to 185°F).
• Certifications: UL, UL HAZLOC, Zone 2 CE, ATEX C1D2, ABS, BV, DNV, GL, KRS, LR, and others for global compliance.

Functional Characteristics

• High Precision: 16-bit resolution ensures accurate control of analog signals, minimizing errors in critical applications.
• Flexible Output Configuration: Each channel can be independently set to voltage or current mode, adapting to diverse device requirements.
• Fast Response Time: 8 ms update rate enables real-time control for dynamic processes like motor speed adjustment or valve positioning.
• Robust Design: Built to withstand harsh industrial environments with wide temperature tolerance and high vibration resistance.
• Diagnostics and Protection: Features overcurrent, short-circuit, and overvoltage protection to safeguard connected equipment.
• Easy Integration: Seamlessly works with GE PACSystems RX3i PLCs and supports Modbus TCP/IP for networked control.

Application Scenarios

• Manufacturing: Controls motor speeds, pressure regulators, and flow meters in assembly lines and CNC machines.
• Energy Sector: Manages valve positions and pump speeds in power plants, oil refineries, and gas pipelines.
• Water Treatment: Regulates chemical dosing pumps and flow control valves in wastewater treatment facilities.
• Pharmaceuticals: Ensures precise temperature and pressure control in drug manufacturing processes.
• Food and Beverage: Monitors and adjusts filling levels, mixing speeds, and packaging equipment.
• Building Automation: Controls HVAC dampers, lighting dimmers, and boiler systems in smart buildings.
• Transportation: Manages speed and direction of conveyor belts in airport baggage handling or rail yard automation.
