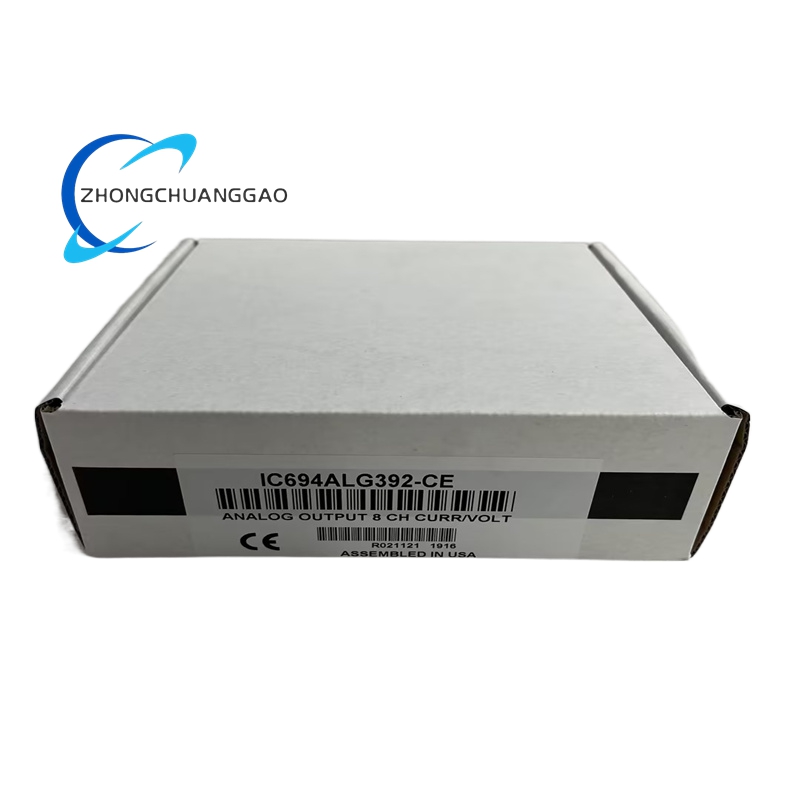

GE IC694ALG392 Analog Output Module

Description

• Power Consumption: 110 mA at 5 VDC (or user-provided 24 VDC).
• Operating Temperature: -40°C to 60°C (adaptable to extreme environments).
• Certifications: UL, UL HAZLOC, Zone 2 CE, ATEX C1D2, ABS, BV, DNV, GL, KRS, LR.

Functional Characteristics

• High Precision: 16-bit resolution ensures ±0.1% accuracy for critical control applications.
• Flexible Configuration: Each channel independently supports multiple voltage/current ranges.
• Robust Protection: Overcurrent, short-circuit, and overvoltage protection prevent system damage.
• Diagnostics: LED indicators for module status and power supply health.
• Modular Design: Fits single RX3i/RX7i expansion slots and supports DIN rail mounting.
• Compatibility: Seamlessly integrates with GE’s PACSystems RX3i PLCs and third-party devices.

Application Scenarios

• Process Control: Regulates pressure, flow, and temperature in chemical, petroleum, and water treatment plants.
• Equipment Monitoring: Controls motor speeds and valve positions in manufacturing and energy systems.
• Automation Lines: Enables precise motion control in automotive assembly and electronics production.
• Energy Management: Optimizes HVAC systems and power grid load in real time.
• Robotics: Manages actuator outputs in industrial robots and CNC machines.
• Power Systems: Monitors and adjusts current/voltage in substations and renewable energy setups.

Key Advantages

• Wide Temperature Tolerance: Operates reliably in harsh conditions (-40°C to 60°C).
• High Channel Density: 8 outputs reduce hardware footprint and costs.
• Enhanced Safety: Built-in protection mechanisms minimize system risks.
• Ease of Maintenance: Compact design and LED diagnostics simplify troubleshooting.
• Scalability: Supports multi-module cascading for expanded I/O capacity.
