Product Short Description
Technical Specifications
- Input Specifications (IC693MDL940K Variant)
- Channel Count: 32 dry contact or DC sink inputs
- Input Voltage: 24 VDC (internal sensing power supplied via backplane)
- Input Current: 5 mA typical per point at 24 VDC
- Logic Levels:
- ON (1): Resistance < 200 Ω between input and common
- OFF (0): Resistance > 50 kΩ between input and common
Description
-
- Isolation: Optical isolation between backplane logic, field wiring, and 24 V sensing power

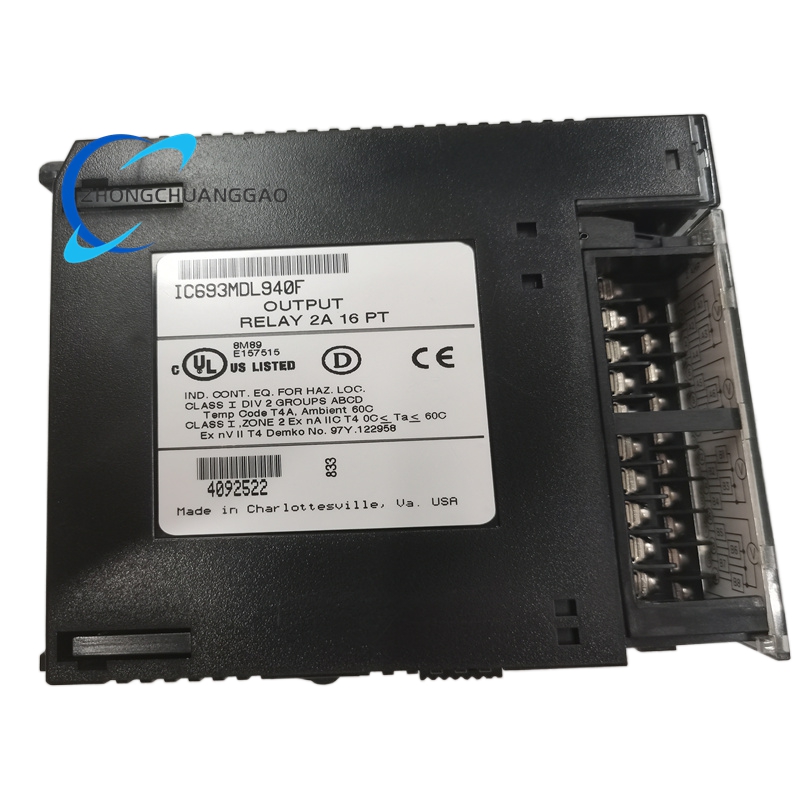

- Output Specifications (IC693MDL940R Variant)
- Channel Count: 16 relay outputs (4 groups of 4 channels each)
- Output Voltage: 24 VDC / 120/240 VAC
- Output Current:
- Per channel: 2 A maximum inductive load
- Per common terminal: 4 A maximum
- Minimum load: 10 mA
- Switching Time: 15 ms max (ON to OFF and OFF to ON)
- Surge Current: 5 A maximum
- Isolation: 1500 VAC field-to-frame, 500 VAC group-to-group
Functional Characteristics
- High-Density Design:
- 32 inputs (IC693MDL940K) or 16 relay outputs (IC693MDL940R) in a single module, reducing cabinet space requirements.
- Flexible Input/Output Configuration:
- Supports dry contact or DC sink inputs (IC693MDL940K).
- Relay outputs accommodate both DC and AC loads (IC693MDL940R).
- Reliable Isolation:
- Optical isolation protects against electrical noise and surges, enhancing system stability.
- Status Indication:
- LED indicators for each input/output channel provide real-time feedback on signal status.
- Integrated Sensing Power:
- Internal 24 VDC power supply for inputs (IC693MDL940K) simplifies wiring and reduces external components.
Application Scenarios
- Manufacturing Automation:
- Monitors position sensors, door switches, and emergency stops on packaging machinery and assembly lines.
- Controls actuators, solenoids, and motors in robotic systems and CNC machines.
- Process Control:
- Manages valve positions, pump statuses, and safety interlocks in chemical, petrochemical, and water treatment plants.
- Energy Management:
- Interfaces with power distribution equipment in substations and renewable energy systems for monitoring and control.
- Material Handling:
- Detects conveyor belt status, photoelectric switches, and limit switches in warehouses and distribution centers.
- Building Automation:
- Controls HVAC systems, lighting, and access control in smart buildings for energy efficiency.
