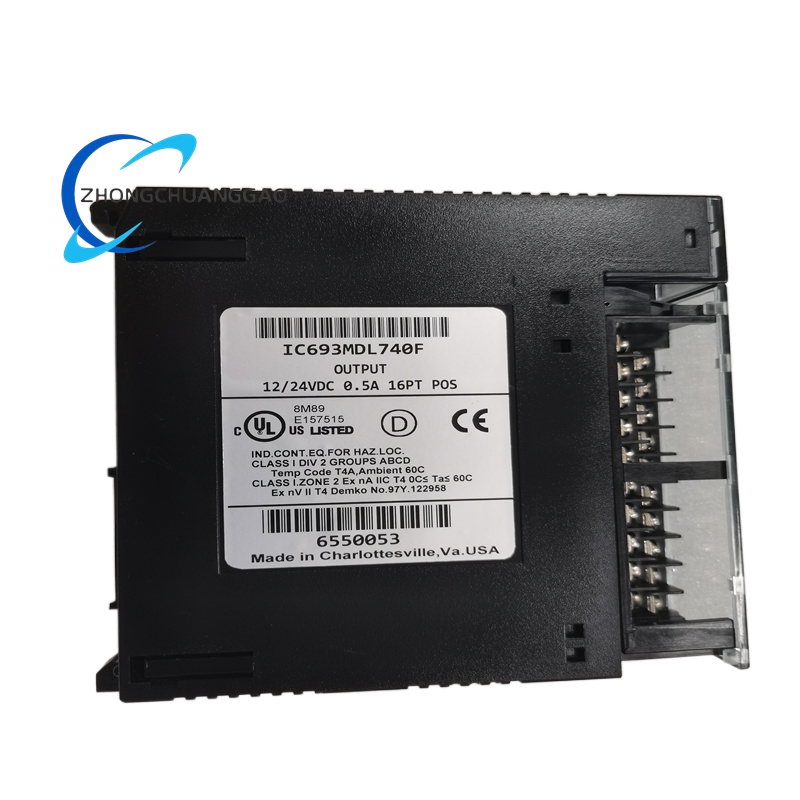

GE IC693MDL740

Description

• Response Time: 2 ms (ON/OFF)
• Surge Current: 4.78 A for 10 ms
• Output Voltage Drop: ≤1 VDC at full load
• Leakage Current: ≤1 mA
• Power Consumption: 110 mA from the 5 VDC backplane bus
• LED Indicators: Dual-row green LEDs for channel status and module health monitoring
• Environmental Tolerance:
  • Operating Temperature: 0°C to 60°C (extended range: -20°C to 70°C)
  • Humidity: 5% to 95% non-condensing
  • Vibration Resistance: 5-9 Hz at 3.5 mm (IEC standard)
• Mechanical Design:
  • Dimensions: Compact form factor for 5-slot or 10-slot 90-30 series baseplates
  • Weight: Approximately 0.5 kg
  • Connector Type: Field-side terminal block for wiring

Functional Characteristics

• Positive Logic Output: Sources current from the positive power bus to connected loads, simplifying wiring for DC-powered devices.
• High Channel Density: 16 outputs in a single module reduce rack space requirements and system complexity.
• Fast Response: 2 ms switching time ensures precise control in high-speed applications.
• Robust Design: Industrial-grade components withstand harsh environments, including temperature extremes and vibration.
• Diagnostic Capabilities: LED indicators provide real-time status feedback for each channel and module health.
• Modular Architecture: Supports hot-swapping for minimal downtime during maintenance or replacement.
• Compatibility: Integrates seamlessly with GE Fanuc 90-30 series PLCs and programming software (e.g., Unity Pro).

Application Scenarios

• Manufacturing: Controls actuators, valves, and motors in assembly lines, packaging machines, and CNC equipment.
• Energy Sector: Manages switchgear, generator control systems, and grid monitoring devices in power plants.
• Transportation: Regulates traffic signals, vehicle detection systems, and conveyor belts in logistics hubs.
• Chemical Processing: Monitors and controls pumps, reactors, and safety interlocks in hazardous environments.
• Water Treatment: Operates valves, pumps, and chemical dosing systems in municipal or industrial facilities.
• Building Automation: Integrates with HVAC, lighting, and security systems for intelligent facility management.
