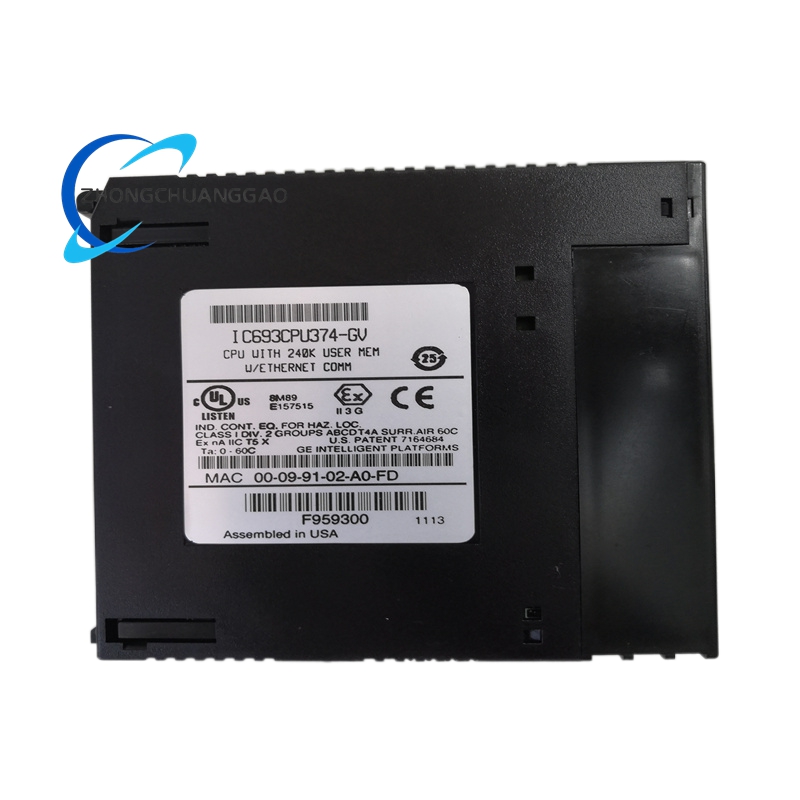

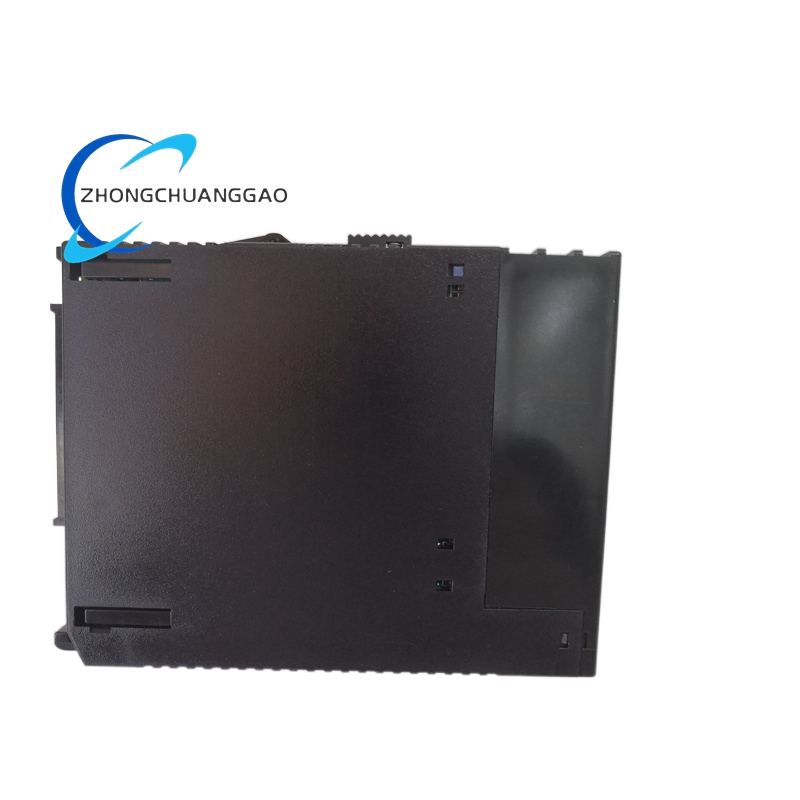

GE IC693CPU374 Programmable Logic Controller (PLC) Central Processing Unit Module

Description

• I/O Capacity:
  • Supports up to 8,192 I/O points (2,048 discrete inputs/outputs + 1280-bit discrete global storage).
  • Local expansion: Up to 16 local I/O modules.
  • Distributed expansion: Up to 32 distributed I/O stations.
• Logic Execution Speed: 0.15 ms per 1,000 Boolean contacts, enabling real-time control.
• Interrupt Priority: 5-level interrupt support for critical tasks (e.g., emergency stop signals with <1 ms response time).
• Communication Interfaces:
  • Dual 10/100 Mbps Ethernet ports with auto-sensing switch functionality.
  • RS-232/RS-485 serial ports (optional expansion via power modules).
  • Optional Profibus-DP master support for third-party device integration.
• Protocols: Compatible with Modbus TCP/IP, SRTP, Ethernet Global Data (EGD), PROFINET, and more.
• Power Requirements: 5 V DC input, 670 mA current draw (requires high-capacity power supply like IC693PWR330/331).
• Environmental Tolerance:
  • Operating temperature: 0°C to 60°C (some models support -25°C to 70°C).
  • Storage temperature: -40°C to 85°C.
  • Humidity: 5% to 95% RH (non-condensing).
• Mechanical Specifications:
  • Dimensions: Approximately 132 mm x 105 mm x 52 mm (W x H x D).
  • Weight: Around 1.36 kg.
  • Mounting: DIN rail installation for easy deployment.

Functional Characteristics

• High-Speed Processing: The 133 MHz processor ensures rapid execution of complex control logic and data-intensive tasks.
• Scalable Architecture: Supports extensive I/O configurations and modular expansion for evolving system requirements.
• Multi-Protocol Communication: Built-in Ethernet and serial ports, along with optional modules, enable seamless integration with diverse networks and devices.
• Real-Time Control: Supports real-time multitasking with deterministic response times for critical applications.
• Redundancy Support: Some models offer dual CPU hot-standby redundancy with <50 ms fault switching time for continuous operation.
• Advanced Diagnostics: Includes sequence event recording and fault diagnosis tools for troubleshooting and system analysis.
• Remote Monitoring: Enables web-based remote access for device status monitoring and system management.
• Robust Design: IP20 protection rating and resistance to vibration, dust, and humidity ensure reliable operation in harsh industrial environments.

Application Scenarios

• Manufacturing Automation: Controls robotic arms, conveyor systems, and assembly lines in automotive and electronics manufacturing, achieving 0.1 ms trajectory correction precision for enhanced production quality.
• Process Control: Manages temperature, pressure, and flow in chemical, petrochemical, and water treatment plants, supporting 2,000+ signal acquisitions for precise parameter regulation.
• Energy Management: Monitors turbine speed and voltage in power plants to ensure grid stability, and optimizes energy distribution in smart grids.
• Material Handling: Orchestrates AGV path planning, obstacle avoidance, and charging management in large warehouses (e.g., 50 AGVs in a 20,000 m² facility with ±5 mm navigation accuracy).
• Building Automation: Integrates lighting, HVAC, and security systems in smart buildings, enabling centralized control and energy savings.
• Renewable Energy: Communicates with 100+ inverters in solar power plants via PROFINET, achieving <10 ms communication delay for efficient energy management.
• Battery Testing: Controls 200 charging/discharging devices with ≤0.05% voltage/current accuracy and ≥1 kHz data refresh rate.
