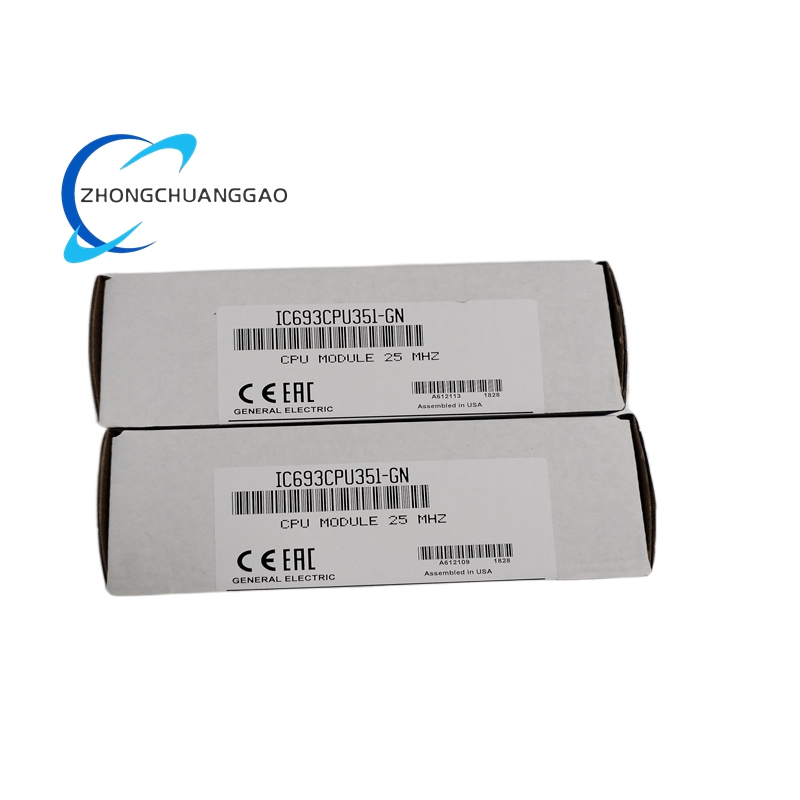

GE IC693CPU351-DF

Description

• Internal Registers:
  • 1280 bits of binary global memory
  • 4096 bits of storage coils
  • 256 bits of temporary output coils
  • 128 bits of system status references
  • Up to 32,640 words of register memory
  • 28,000 words of system register memory (for reference table viewing only)
• Serial Ports: Three serial ports are available for communication. One port is located on the power connector and supports SNP/SNPX slave protocols. The other two ports support RTU slave, SNP/SNPX master/slave protocols.
• Power Requirements: 5 VDC, 890 mA
• Operating Temperature Range: 32°F to 140°F (0°C to 60°C)

Functional Characteristics

• Modular Design: The single-slot CPU module can be easily integrated into existing 90-30 series PLC systems, supporting up to seven I/O expansion or remote I/O baseplates for enhanced system scalability.
• High Processing Speed: With a 25 MHz clock speed, the CPU ensures rapid execution of control logic, making it suitable for time-critical applications.
• Large Memory Capacity: The 240 KB user memory (expandable with firmware updates) allows for the storage of complex control programs and data, supporting sophisticated automation tasks.
• Versatile Communication: The three serial ports enable seamless integration with various visualization systems, such as HMIs and SCADA systems, as well as other automation devices. Optional communication modules (e.g., Profibus, Ethernet) can be installed to further expand communication capabilities.
• Support for Floating-Point Math Functions: Enhances the CPU’s ability to handle complex mathematical calculations, making it suitable for applications requiring precise control and monitoring.
• Built-in Sequential Event Recorder: Facilitates troubleshooting and system optimization by recording and analyzing sequential events within the PLC system.

Application Scenarios

• Industrial Automation Lines: In automotive manufacturing, electronics production, and other automated production lines, the IC693CPU351-DF can receive signals from sensors and controllers to achieve real-time monitoring and control of the production process. Its high-speed data transmission and reliability ensure continuous operation and product quality.
• Energy Monitoring Systems: In the energy sector, including power, oil, and gas industries, the module can receive signals from various energy monitoring devices, such as power meters and pressure sensors. By analyzing and processing these signals, it enables real-time monitoring of energy production, transmission, and distribution processes, helping to detect energy leaks and equipment failures promptly.
• Intelligent Building Control Systems: In smart buildings, the IC693CPU351-DF can receive signals from lighting, air conditioning, and security systems to achieve centralized control and management of various building devices. Its rich communication interfaces and ease of configuration simplify the integration and debugging of smart building systems.
• Distributed Control Systems (DCS): As a crucial component of DCS systems, the IC693CPU351-DF provides robust data transmission and communication support, enabling real-time monitoring and control of remote devices and enhancing overall system performance and reliability.
