Product Overview

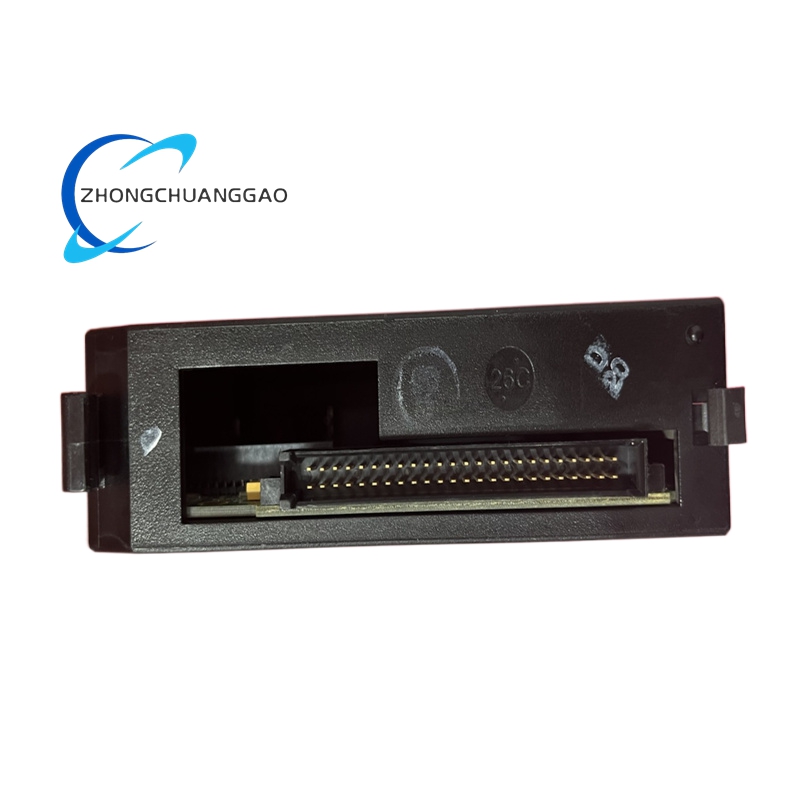

The GE IC693CPU350-BC is a high-performance CPU module designed for the GE Series 90-30 PLC platform, serving as the core control unit in industrial automation systems. It executes user programs, manages I/O devices, and implements automation logic with high reliability and flexibility. This module is widely used in complex control scenarios across manufacturing, energy, and infrastructure sectors.
Technical Specifications
- Processor: GE-dedicated CPU (e.g., 80386EX or equivalent), operating at 20 MHz or higher.
- Memory: 32 KB user memory (non-configurable), supporting large-scale programs.
Description
- I/O Capacity: Up to 4,096 discrete I/O points (2,048 inputs + 2,048 outputs) and 2,560 analog I/O words (2,048 inputs + 512 outputs).
- Logic Execution Speed: 0.22 ms per 1K Boolean operations.
- Communication Interfaces: Supports Ethernet, RS-232C, RS-485, SNP/SNP-X slave protocol, and optional modules for Profibus, DeviceNet, and Genius networks.
- Power Requirements: 5 V DC input, 670 mA current draw.
- Environmental Tolerance:
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% RH (non-condensing)
- Dimensions: 118 mm (L) × 72 mm (W) × 32 mm (H).
- Weight: Approximately 0.35 kg.
- Certifications: cULus, CE, ATEX/IECEx (for hazardous environments).
Functional Characteristics
- High-Speed Processing: The dedicated CPU ensures rapid execution of complex logic and data processing tasks, meeting real-time control demands.
- Scalability: Supports up to 8 racks (1 CPU rack + 7 expansion racks), enabling flexible system expansion for large-scale applications.
- Multi-Protocol Compatibility: Seamlessly integrates with diverse devices via Ethernet, fieldbus networks, and serial communication, reducing interoperability challenges.
- Robust Design: Built to withstand harsh industrial environments with wide temperature tolerance and anti-interference capabilities.
- Advanced Features:
- Supports floating-point math operations for precise process control.
- Includes 2,000+ timers/counters and shift registers for complex sequencing.
- Flash and RAM memory for reliable data storage and retrieval.
Application Scenarios
- Manufacturing Automation: Controls robotic arms, conveyor systems, and assembly lines in automotive and electronics factories.
- Process Control: Manages temperature, pressure, and flow in chemical, petrochemical, and water treatment plants.
- Energy Management: Optimizes power distribution and consumption in renewable energy systems and smart grids.
- Material Handling: Orchestrates crane operations, sorting systems, and warehouse automation in logistics centers.
- Infrastructure: Monitors and controls elevator systems, HVAC, and lighting in commercial buildings.
Additional Considerations
- Configuration Tools: Programmable via LogicMaster 90, Control, VersaPro, and CIMPLICITY Machine Edition Logic Developer software.
- Redundancy Support: Optional redundant configurations enhance system reliability in critical applications.
- Global Compliance: Meets international safety and environmental standards, ensuring suitability for global deployments.
