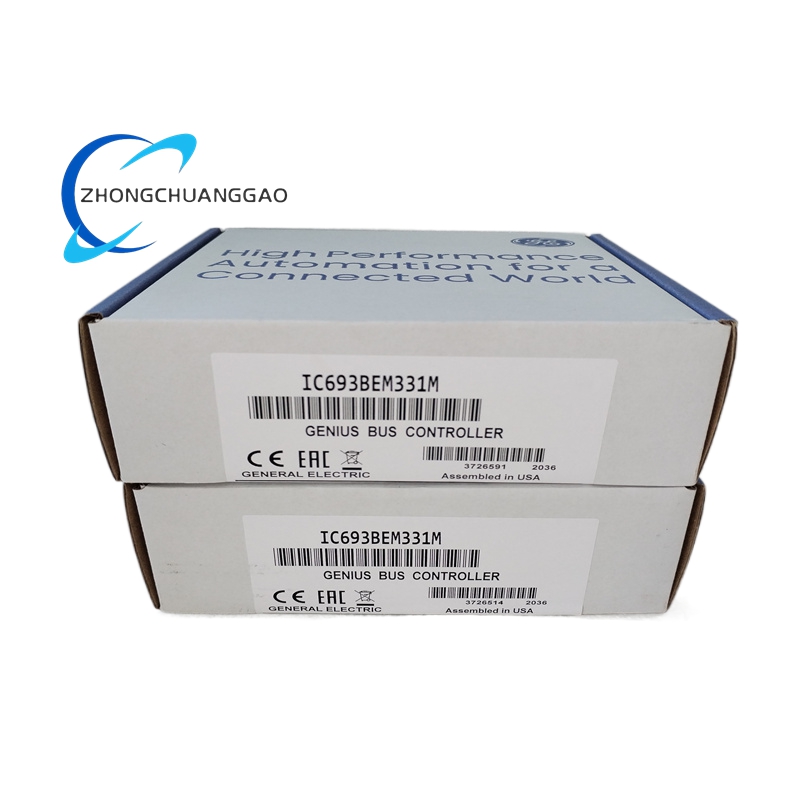

GE IC693BEM331M Genius Bus Controller Module (GBC) for Series 90‑30 PLCs

Description

Technical Specifications

• Module Type: Genius Bus Controller (GBC) for Series 90‑30 PLCs, connects CPU to Genius I/O bus.
• Bus Capacity: Up to 31 Genius I/O devices per bus segment.
• Data Transfer: 128 bytes output data transmitted to each device; 128 bytes input data received from each device.
• Communication Modes: Genius Global Data (real‑time I/O exchange); background communication (configuration/diagnostics).
• Isolation: 1500 VAC channel‑to‑backplane (1 minute); 250 VAC continuous channel‑to‑case.
• Power Consumption: +5 VDC backplane: <300 mA max; no external 24 VDC required.
• Indicators: OK (green steady = module healthy); COMM OK (green steady = bus communication active).
• Connectors: 24‑pin removable screw‑clamp terminal block; 2.5 mm² max wire gauge.
• Physical: 31.24 mm × 35 mm × 87.63 mm; 0.55 kg; DIN rail mountable.
• Environment: 0°C to +60°C; 5–95% RH (non‑condensing); IP20.
• CPU Compatibility: Series 90‑30 CPUs 311K/321K/331L or later; 313/323/340+ with firmware 5.0+.
• Software Compatibility: Logicmaster 90‑30 v5.0+, VersaPro; configurable via HHM.
• System Scalability: Up to 8 GBCs per system (firmware 5.0+), supports multi‑bus networks.
• Certifications: CE, UL 508, CSA C22.2 No. 14; IEC 61131‑2 compliant.

Functional Characteristics

• High‑Capacity Bus Management: Controls up to 31 devices with 128 bytes I/O per device for large distributed I/O systems.
• Multi‑Mode Communication: Global Data enables real‑time I/O; background mode handles configuration/diagnostics without disrupting control.
• Isolation & Noise Immunity: 1500 VAC isolation protects CPU from field noise; stable communication in harsh industrial environments.
• Integrated Diagnostics: Status bits and fault reporting to CPU enable remote monitoring of bus/device health.
• LED Status Monitoring: OK/COMM OK LEDs provide at‑a‑glance health checks and troubleshooting.
• Seamless PLC Integration: Maps to %G/%I/%Q/%AI/%AQ/%R memory; data exchanged automatically with CPU tables.
• Hot‑Swappable: Removable terminals and DIN rail mounting simplify replacement without rewiring.
• Remote Configuration: Works with Genius HHM for on‑site setup without PLC programming software.
• Backward Compatibility: Integrates with Series 90‑70 I/O racks and legacy Genius devices.
• System Scalability: 8 max GBCs per system build multi‑segment bus networks for large plants.

Application Scenarios

• Distributed I/O Networks: Chemical plants, refineries; 31‑device capacity connects remote sensors/valves, 128‑byte data handles analog/digital I/O, 1500 VAC isolation resists noise.
• Factory Automation: Automotive, electronics assembly; Genius Global Data syncs 31+ devices in real time, background mode allows online reconfiguration, HHM supports on‑site troubleshooting.
• Remote I/O Drops: Water/wastewater, mining; connects Series 90‑70 racks to 90‑30 CPUs, 128‑byte transfers reduce scan time, 0.55 kg form factor fits compact remote cabinets.
• Building Automation: HVAC, energy management; 31‑device bus links chillers/RTUs, COMM OK LED alerts to network outages, <300 mA power draw minimizes backplane load.
• Legacy System Retrofit: Series 90‑30 upgrades; replaces obsolete GBCs, preserves Genius I/O infrastructure, Logicmaster compatibility ensures seamless migration.
• Process Control: Pulp/paper, food/beverage; global data mode maintains regulatory compliance, fault reporting triggers predictive maintenance, 24‑pin terminals simplify wiring changes.
• Multi‑Bus Systems: Large manufacturing sites; 8 GBCs support 8 bus segments (248 devices total), 1500 VAC isolation prevents cross‑segment noise, DIN rail mounting eases cabinet layout.
