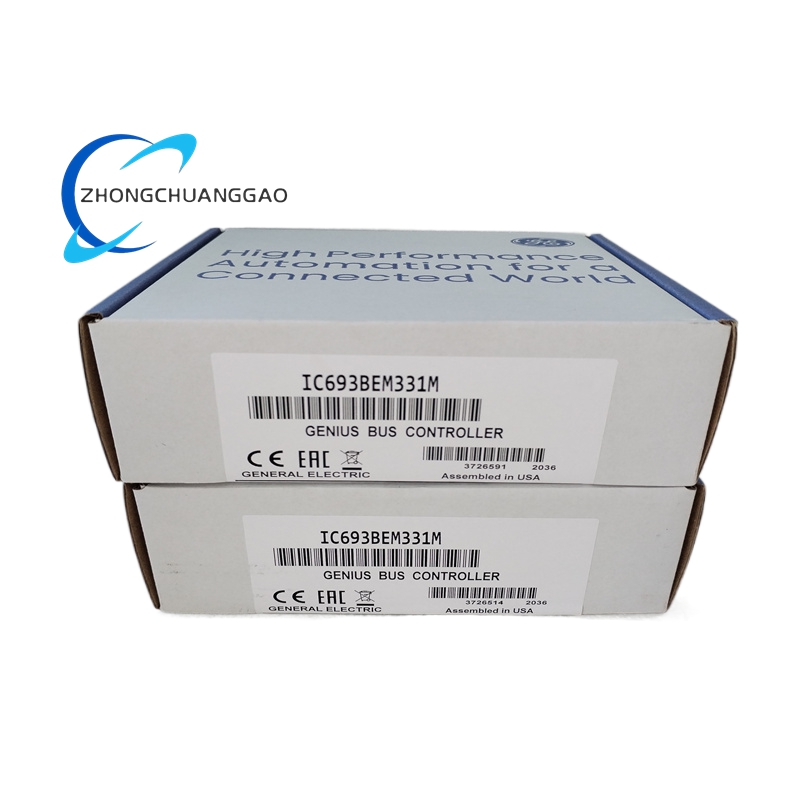

GE IC693BEM331

Description

• Technical Specifications:
  • Module Type: Single‑slot Genius Bus Controller for Series 90‑30 PLCs
  • Device Capacity: Up to 31 Genius I/O devices on a single bus
  • Data Transfer: 128 bytes input and 128 bytes output per device
  • Bus Compatibility: Genius I/O serial bus (supports Global Data and datagram communications)
  • Power Requirements: +5 VDC from backplane; ≤300 mA current draw
  • LED Indicators: 2 front‑panel LEDs (OK: module operational; COMM OK: bus communication active)
  • Physical: Single‑slot DIN rail/backplane mount; dimensions 170mm x 25.4mm x 23.8mm; weight 0.226kg
  • Environmental: 0°C to 60°C operating; -40°C to 85°C storage; 5%–95% RH (non‑condensing)
  • CPU Compatibility: Series 90‑30 CPUs (IC693CPU311K/321K/331L and higher; IC693CPU313/323/340/341/350/351/352/360/363/364) with firmware 5.0+
  • Software Requirement: Logicmaster 90 v5.0 or later for configuration
• Function Features:
  • High Device Density: Supports up to 31 Genius devices for large‑scale distributed I/O systems.
  • Large Data Throughput: 128 bytes I/O data per device enables rich control and monitoring capabilities.
  • Dual Communication Modes: Genius Global Data for real‑time I/O and background communications for diagnostics/config.
  • Seamless Integration: Works with Series 90‑30 CPUs (firmware 5.0+) and Logicmaster 90 software.
  • Real‑Time Diagnostics: Front‑panel LEDs and software status bits for module health and bus errors.
  • Flexible Device Support: Connects to Genius blocks, remote drops (90‑70 I/O racks), field control stations, and HHMs.
  • Plug‑and‑Play Deployment: Pre‑configured for bus communication with minimal setup post‑installation.
• Application Scenarios:
  • Distributed I/O Systems: Extends Series 90‑30 PLCs to remote sensors/actuators in automotive, food/beverage, and water/wastewater plants.
  • Process Control: Integrates analog/digital I/O blocks for temperature, pressure, and flow control in chemical/pharmaceutical facilities.
  • Remote Monitoring: Links remote drops (90‑70 I/O racks) to central PLCs for oil/gas pipeline and power distribution monitoring.
  • Factory Automation: Coordinates multiple Genius devices in assembly lines, packaging machines, and material handling systems.
  • Field Control Stations: Manages self‑contained I/O stations for complex machinery in mining and manufacturing.
  • Mobile Maintenance: Works with Genius HHMs for on‑site configuration and troubleshooting of distributed I/O networks.
• Installation & Maintenance:
  • Mounting: Snap onto Series 90‑30 baseplates; ensure all racks share the same ground potential.
  • Wiring: Use shielded twisted‑pair cables for Genius bus; terminate shields at the module end.
  • Configuration: Set up via Logicmaster 90 v5.0+; define device addresses, data ranges, and communication modes.
  • Diagnostics: Check OK LED (steady on = operational) and COMM OK LED (steady on = active communication; flashing = errors).
  • Firmware Check: Verify CPU firmware ≥5.0; update if needed for full GBC functionality.
  • Safety: Install in IP20 minimum enclosure; follow Zone 2, Group IIC guidelines for hazardous areas.
• Certifications: UL Listed, CE marked; compliant with IEC 61010‑1 (industrial safety) and IEC 61326‑1 (EMC) for reliable operation in harsh industrial environments.
