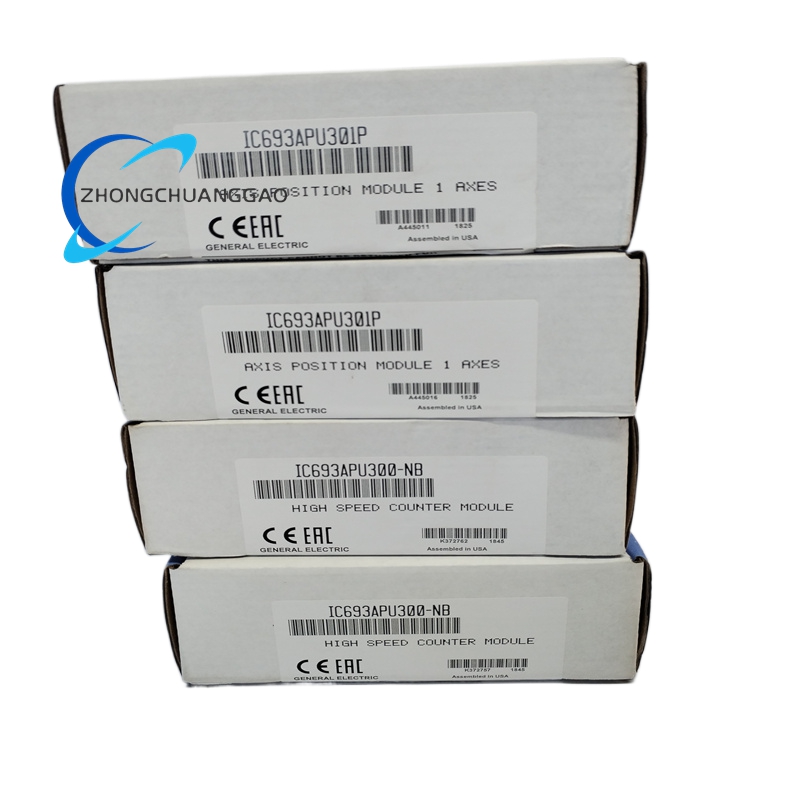

GE IC693APU300

Description

• Technical Specifications:
  • Module Type: Single‑slot high‑speed counter for Series 90‑30 PLCs
  • Input Channels: 12 positive logic inputs; 5 VDC or 10‑30 VDC (configurable via DIP switches)
  • Input Frequency: Up to 200 kHz maximum; 8 kHz standard operation
  • Output Channels: 4 positive logic outputs; 10‑30 VDC @ 500 mA max or 4.75‑6 VDC @ 20 mA max
  • Output Protection: Short‑circuit protection; 3A fuse per channel
  • Count Modes: Up, down, up/down, difference between two variables
  • Configuration Options: 1 complex counter, 2 complex counters, or 4 independent simple counters
  • Power Requirements: +5 VDC from backplane; 250 mA current draw
  • Leakage Current: 10 µA per input point
  • Physical: Single‑slot DIN rail mount; dimensions 170mm x 25.4mm x 23.8mm; weight 0.5 kg (1.1 lbs)
  • Environmental: 0°C to 55°C operating; -40°C to 85°C storage; 5%–95% RH (non‑condensing)
• Function Features:
  • High‑Speed Counting: Processes pulses up to 200 kHz, ideal for turbine flowmeters, velocity measurement, and high‑speed production lines.
  • CPU Independent Processing: Detects, counts, and responds to inputs/outputs without CPU communication, reducing controller load.
  • Flexible Configuration: Supports 1/2/4 counters with up/down/difference modes for diverse counting requirements.
  • Versatile I/O: 12 configurable inputs (count, direction, disable, strobe, preload) and 4 outputs for control/indication.
  • Easy Integration: Removable terminal board for quick wiring; DIP switches for input voltage setup.
  • Internal Diagnostics: Monitors module health, input/output status, and count errors for proactive maintenance.
  • Direct Output Response: Triggers outputs based on count thresholds without CPU latency, ensuring fast control actions.
• Application Scenarios:
  • Flow & Metering: Turbine flowmeter monitoring, meter proving, and batch counting in oil/gas, water/wastewater, and chemical industries.
  • Velocity & Motion Control: Speed measurement for conveyors, motors, and material handling systems; position tracking in packaging and assembly lines.
  • Manufacturing Automation: High‑speed part counting, production batch tracking, and machine cycle monitoring in automotive, electronics, and consumer goods manufacturing.
  • Process Control: Batch processing, ingredient dosing, and flow rate regulation in pharmaceutical, food/beverage, and chemical plants.
  • OEM Machinery: Embedded into custom equipment requiring high‑speed counting (e.g., labeling machines, filling systems, and test stands).
• Installation & Maintenance:
  • Mounting: Snap onto Series 90‑30 baseplates; ensure proper grounding for noise immunity.
  • Wiring: Use shielded cables with high‑frequency ground within 6 inches of the module; connect inputs/outputs via removable terminal board.
  • Configuration: Set input voltage (5 VDC/10‑30 VDC) via DIP switches; configure counter mode, count direction, and output triggers using Series 90‑30 programming software.
  • Diagnostics: Monitor LED indicators for power, input activity, output status, and faults; use software to read diagnostic data and count values.
  • Maintenance: Inspect wiring connections and terminal board integrity; replace fuses if outputs fail (3A per channel).
  • Safety: Install in IP54 minimum enclosure; follow Zone 2, Group IIC safety guidelines for hazardous areas.
• Certifications: UL Listed, CE marked; compliant with IEC 61010‑1 (industrial safety) and IEC 61326‑1 (EMC) standards for reliable operation in harsh industrial environments.
