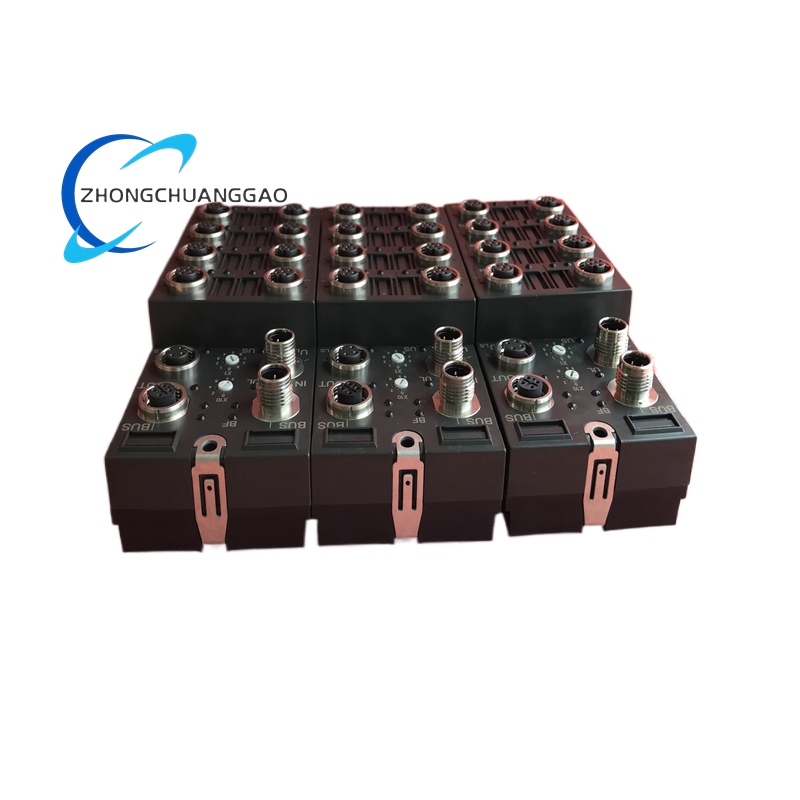

GE IC676PBI016

Description

• Technical Specifications:
  • Digital Inputs: 16 isolated channels; 24VDC nominal input; -30V < UIN < +30VDC permissible range
  • Switching Thresholds: Max low level <5V; min high level >11V; nominal input current 3mA (constant)
  • Delay Times: On: <1ms typical; Off: 2ms typical
  • PROFIBUS‑DP Interface: M12 connectors; autobaud up to 12 Mbaud; supports DP V0/V1 protocols
  • Power Requirements: 18–30VDC; UL current: 35mA typical, 100mA max; US current: 8mA typical + 1.2A max sensor current
  • Protection: IP67 (IEC 60529); Class 3 (VDE 0106/IEC 60536); reverse polarity protection
  • Isolation: 500VAC channel‑to‑channel and channel‑to‑backplane (1 minute)
  • Physical: DIN rail mount; dimensions 105mm x 45mm x 25mm; weight 0.3kg (0.66 lbs)
  • Environmental: 0°C to 55°C operating; -25°C to 85°C storage; 5%–95% RH (non‑condensing)
  • Hot‑Swap: Supported; modules replaceable without powering down the system
• Function Features:
  • IP67 Protection: Dust/waterproof for washdown, outdoor, and harsh plant floor installations.
  • PROFIBUS‑DP Connectivity: M12 connectors enable quick, secure field wiring; autobaud up to 12 Mbaud for fast data transfer.
  • 16 Isolated Inputs: Prevents ground loops and cross‑talk for reliable signal acquisition in noisy environments.
  • Fast Response: <1ms on delay and 2ms off delay ensure real‑time control of critical processes.
  • Dual Power Modes: UL (35mA) and US (8mA + 1.2A max sensor current) modes accommodate diverse power budgets.
  • Hot‑Swap Support: Reduces downtime during module replacement without disconnecting field devices.
  • LED Status Indicators: Power, communication, and channel activity LEDs for quick diagnostics.
  • Wide Compatibility: Works with VersaMax controllers, PACSystems, and Series 90‑30/70 PLCs.
• Application Scenarios:
  • Process Control: Monitors proximity sensors, limit switches, and level switches in chemical, pharmaceutical, and water/wastewater plants.
  • Manufacturing Automation: Connects to machine tools, robotic cells, and packaging lines for high‑speed input signal acquisition.
  • Material Handling: Integrates with conveyors, sorters, and AS/RS systems for position and status monitoring.
  • Automotive Production: Supports body assembly, paint shops, and final assembly lines with IP67 protection for washdown environments.
  • Distributed I/O Systems: Extends I/O to remote plant areas when paired with PROFIBUS‑DP masters for centralized control.
  • OEM Machinery: Embedded into custom equipment requiring rugged, modular I/O with fast communication.
• Installation & Maintenance:
  • Mounting: Snap onto standard 35mm DIN rail; ensure proper grounding for noise immunity.
  • Wiring: Use M12 cables for PROFIBUS‑DP and field inputs; verify polarity to avoid damage.
  • Power Connection: Supply 18–30VDC; connect to UL/US power terminals based on current requirements.
  • Configuration: Set PROFIBUS address via DIP switches; use host software to configure baud rate, input filters, and diagnostics.
  • Hot‑Swap Procedure: Power down the module; disconnect M12 connectors; replace and reconnect without disturbing field wiring.
  • Troubleshooting: Check LEDs for power (PWR), communication (COM), and input activity (CH1–CH16); use a multimeter to verify input voltages and continuity.
• Certifications: UL Listed, CE marked; compliant with IEC 61010‑1, IEC 61326‑1, and IEC 60529 (IP67) for safe operation in industrial environments.
