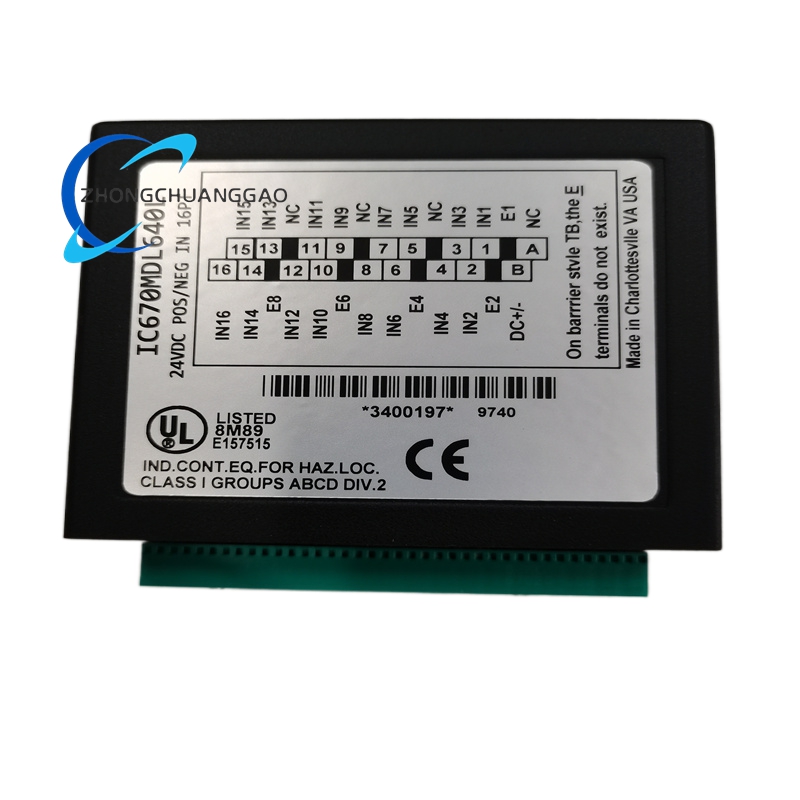

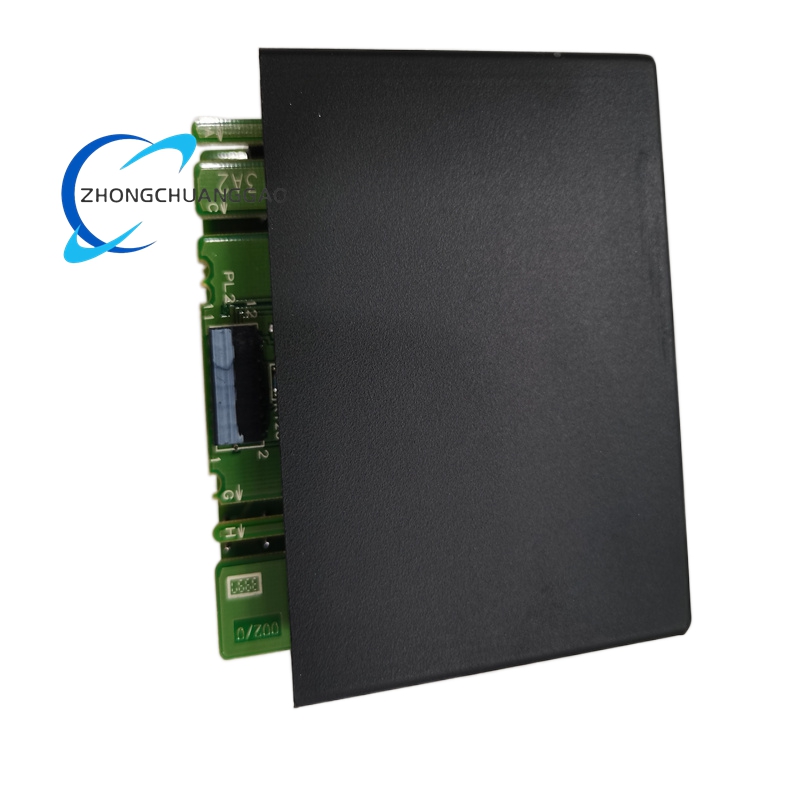

GE IC670MDL640 16‑Channel Positive/Negative Logic Discrete Input Module

Description

Technical Specifications

• Module Type: 16‑channel single‑group discrete input module (Field Control Series), positive/negative logic.
• Input Signal: 24 VDC nominal, 0–30 VDC range; 7.5 mA per‑channel input current (24 VDC).
• Logic Compatibility: Positive logic (source current) and negative logic (sink current) wiring.
• On‑State Voltage: +15 to +30 VDC (positive logic); -15 to -30 VDC (negative logic).
• Off‑State Voltage: 0 to +5 VDC (positive logic); 0 to -5 VDC (negative logic).
• On‑State Current: 3.0–8 mA.
• Off‑State Current: 0–1.5 mA.
• Input Impedance: 3 kΩ typical.
• Response Time: 6 ms typical, 10 ms max (on/off transition).
• Isolation: 1500 VAC (1 minute) between field/backplane; 250 VAC continuous to case; optically isolated inputs.
• Power Supply: 75 mA typical, 83 mA max from BIU power supply; 24 VDC ±10% field power.
• Indicators: Module power, backplane communication, and per‑channel status LEDs.
• Terminals: Removable screw‑clamp terminal block, 2.5 mm² max wire gauge.
• Dimensions: 135 mm × 66 mm × 30 mm; weight 230 g.
• Operating Environment: 0°C to +60°C; 5–95% RH (non‑condensing); IP20 protection.
• Certifications: CE, UL 508, CSA C22.2 No. 14; IEC 61131‑2 compliant.

Functional Characteristics

• 16 Universal Channels: Supports positive/negative logic per module, adapting to global wiring standards and sensor types (proximity, limit, photoelectric switches).
• Dual Logic Wiring: Positive (source) and negative (sink) logic enables direct connection to PNP/NPN sensors without external converters.
• 1500 VAC Isolation: Protects backplane/CPU from field‑side surges, ground loops, and high‑voltage transients.
• 6–10 ms Response Time: Captures fast‑changing digital signals for real‑time control and monitoring.
• Per‑Channel LED Indicators: Instantly shows on/off status for quick troubleshooting; power/communication LEDs confirm module health.
• 0–30 VDC Input Range: Tolerates 24 VDC industrial power fluctuations, reducing false triggering from voltage spikes.
• BIU Power Efficiency: 75 mA typical BIU current draw minimizes backplane power load.
• Compact & Lightweight: 230 g, DIN rail mounting fits dense panels; hot swappable with Series 90‑30 chassis.
• Global Power Compatibility: 24 VDC ±10% field power works with standard industrial power supplies.
• Certified for Industrial Use: CE/UL/CSA compliance ensures safety in heavy industrial environments.

Application Scenarios

• Process Control: Chemical, oil/gas, water treatment; 16 channels monitor limit switches, level sensors, and valve position feedback, 1500 VAC isolation protects PLC from field noise, dual logic supports mixed sensor types.
• Machine Monitoring: Motors, pumps, compressors; 6–10 ms response time detects overload/fault conditions fast, per‑channel LEDs speed fault isolation.
• Manufacturing Automation: Assembly lines, packaging machines; 16 channels track photoelectric/proximity sensor status, dual logic integrates PNP/NPN sensors without adapters.
• HVAC & Building Automation: Chiller, boiler, air handler control; 16 channels monitor fan/motor on/off status, 0–30 VDC range tolerates building power fluctuations, BIU integrates with BMS via Modbus.
• Legacy System Retrofit: Upgrades Series 90‑30 PLCs with 16‑channel input expansion; preserves existing 24 VDC sensor infrastructure, dual logic supports global wiring standards.
• Remote I/O Racks: Distributed process monitoring; 24 VDC power and 230 g weight suit remote cabinets, BIU enables central data aggregation via backplane.
• Safety Interlocks: Conveyor, press, and robot safety systems; 16 channels monitor emergency stops and guard door switches, 1500 VAC isolation prevents common‑mode noise from triggering false safety trips.
