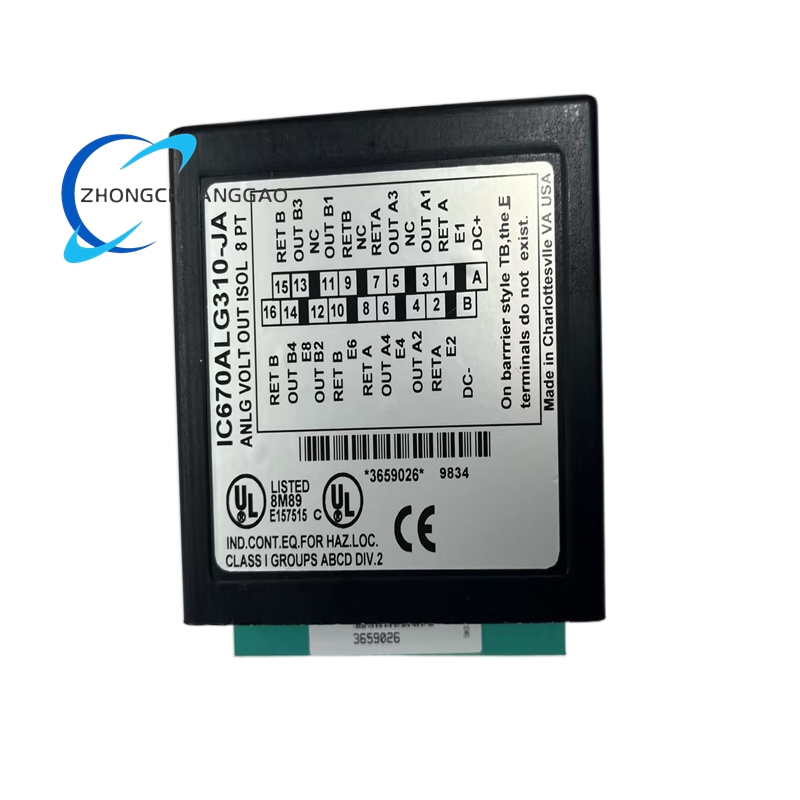

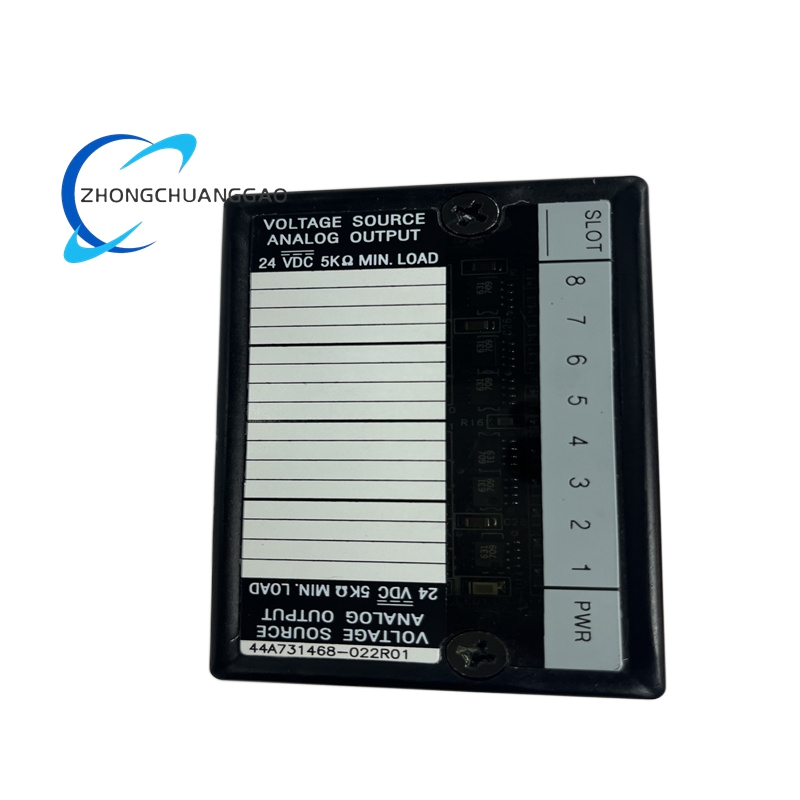

GE IC670ALG310‑JA

Description

• Technical Specifications:
  • Analog Outputs: 8 isolated voltage output channels (2 groups of 4); output range ±10VDC; 10.25VDC overrange capability
  • Resolution & Accuracy: 14‑bit digital resolution; ±0.1% full‑scale accuracy; 0.61mV analog resolution
  • Isolation: 1500VAC between channels, groups, and backplane (1 minute); 250VAC continuous isolation to case
  • Power Requirements: 24VDC (20.4–28.8VDC); 4W power consumption; 167mA backplane current draw
  • Output Update Time: 100µs per channel; 800µs total update time for all 8 channels
  • Calibration: Field‑calibratable; calibration data stored in non‑volatile flash memory; factory reset option available
  • Physical: DIN rail mount; dimensions 3.0″ x 3.0″ x 4.0″ (7.6cm x 7.6cm x 10.2cm); weight 0.1kg (4.0 oz)
  • Environmental: 0°C to 55°C operating temperature; -40°C to 85°C storage temperature; 5%–95% RH (non‑condensing)
• Function Features:
  • Isolated Channel Design: 1500VAC isolation prevents ground loops and voltage transients, ensuring stable operation in noisy industrial environments.
  • High Precision Output: 14‑bit resolution and ±0.1% full‑scale accuracy deliver precise voltage signals for critical process control.
  • Overrange Capability: 10.25VDC overrange accommodates transient signal demands without module damage.
  • Flexible Configuration: Individual channel scaling, support for word/bit data types, and field calibration enable customization for diverse applications.
  • Built‑in Diagnostics: Detects over/under‑range conditions, power loss, and uncalibrated status, with user‑configurable alarms for proactive maintenance.
  • Easy Integration: Works with any Field Control BIU, mounts on standard DIN rails, and connects to the backplane for seamless communication with the host PLC.
  • Non‑volatile Storage: Flash memory retains calibration data during power cycles, eliminating the need for repeated calibration.
• Application Scenarios:
  • Process Control: Controls valves, pumps, and actuators in chemical, pharmaceutical, and food/beverage industries to maintain precise temperature, pressure, and flow parameters.
  • Manufacturing Automation: Provides analog voltage signals for variable speed drives, robotic arms, and material handling systems in automotive, electronics, and packaging production lines.
  • Test & Measurement: Generates calibrated voltage signals for equipment testing, sensor calibration, and laboratory experimentation.
  • Building Automation: Controls HVAC systems, lighting, and energy management equipment to optimize comfort and energy efficiency.
  • Water/Wastewater Treatment: Regulates flow control valves, chemical dosing pumps, and aeration systems for water purification and wastewater treatment processes.
• Installation & Maintenance:
  • Mounting: Snap onto standard DIN rail; ensure proper grounding for noise immunity and signal stability.
  • Power Connection: Supply 24VDC (20.4–28.8VDC); verify voltage compatibility and polarity before installation.
  • Wiring: Connect output channels to actuators/instruments using shielded cables; route power and signal cables separately to minimize interference.
  • BIU Integration: Connect to a Field Control BIU via the backplane; set the module address via DIP switches for communication with the host PLC.
  • Configuration: Use host PLC software to set output ranges, scaling parameters, and alarm thresholds for each channel.
  • Calibration: Perform field calibration using host software or a calibration tool; store calibration data in flash memory for retention during power loss.
  • Troubleshooting: Check LED indicators for power, communication, and diagnostic status; use host software to monitor output values and alarm conditions for quick issue resolution.
• Certifications: UL Listed, CE marked; compliant with IEC 61010‑1 safety standards and IEC 61326‑1 EMC standards for reliable operation in harsh industrial environments.
