Product Short Description
Product Introduction:

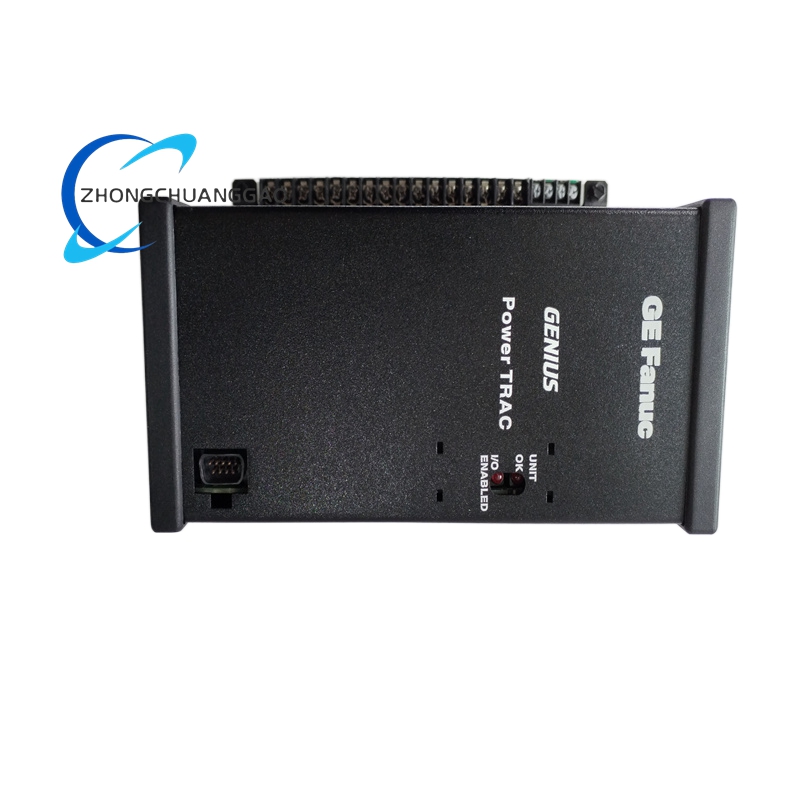

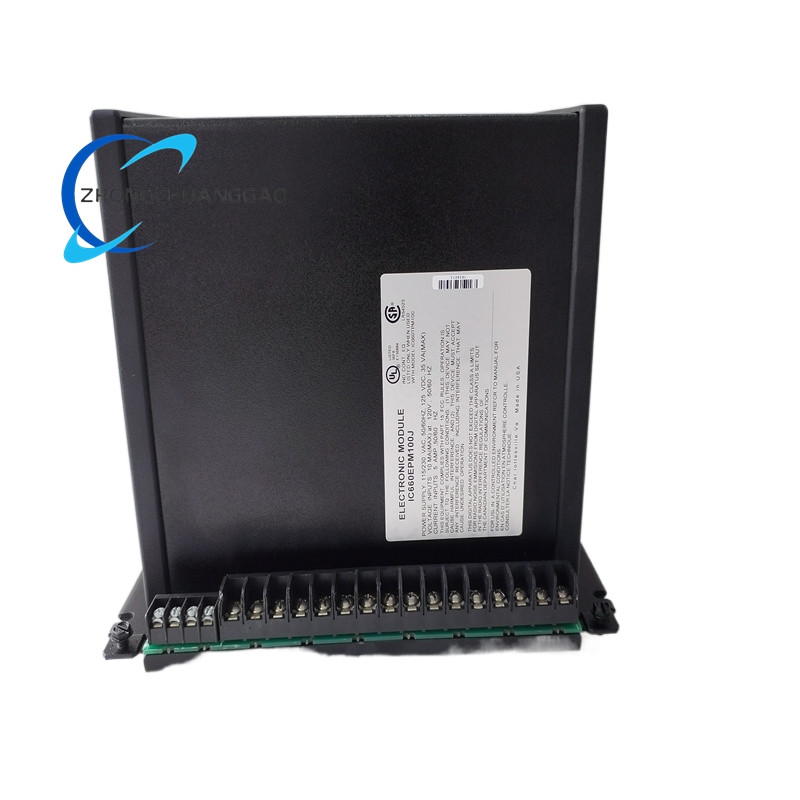

The IC660EPM100J is a Genius POWERTRAC electronic assembly for power monitoring, part of GE Fanuc’s Genius I/O system, designed to measure and analyze electrical parameters in single or 3-phase delta power systems. It accepts voltage inputs from 1-3 potential transformers and current inputs from up to 3 line current transformers plus 1 neutral current transformer, digitizes waveform values, and calculates active/reactive power, RMS voltage/current, power factor, and kilowatt-hours. Data transmits to a host PLC/computer every 0.5 seconds via the Genius bus, and a Genius handheld monitor (HHM) can display data locally or remotely. It operates on 115/230VAC or 125VDC power, works standalone or with a host, and installs up to 7500 feet from the host on the Genius bus. The module is an electronic assembly only; the IC660TBM100 terminal block is required for field wiring.
Description
- Technical Specifications:
- Power Input: 115/230VAC (50/60Hz) or 125VDC; 4.6W power consumption
- Measurement Channels: 1-3 voltage inputs (from potential transformers); 3 line current + 1 neutral current inputs (from current transformers)
- Calculated Parameters: Active power, reactive power, RMS voltage, RMS current, power factor, kilowatt-hours
- Communication: Genius bus interface; data transmission rate 0.5 seconds; max distance 7500 feet from host
- Configuration: Host PLC or Genius handheld monitor (HHM)
- Operating Temperature: 0°C to 55°C; Storage Temperature: -40°C to 85°C
- Relative Humidity: 5%–95% (non-condensing)
- Physical: Electronic assembly (no terminal block); requires IC660TBM100 for field connections
- Function Features:
- Multi-Phase Monitoring: Works with single-phase or 3-phase delta systems for flexible power system integration.
- Comprehensive Measurement: Captures voltage/current waveforms to compute active/reactive power, RMS values, power factor, and energy usage.
- Genius Bus Connectivity: Transmits data to the host every 0.5 seconds; supports remote monitoring via HHM.
- Standalone Operation: Functions without a host PLC for independent power monitoring applications.
- Long-Distance Installation: Installs up to 7500 feet from the host on the Genius bus for distributed setups.
- Easy Configuration: Configurable via host PLC or HHM for quick setup and parameter adjustment.
- Application Scenarios:
- Industrial Power Management: Monitors electrical parameters in manufacturing plants to optimize energy usage and detect inefficiencies.
- Process Control Systems: Integrates with PLCs to monitor power quality in chemical, water/wastewater, and food/beverage processes.
- Building Automation: Tracks energy consumption in commercial buildings for HVAC, lighting, and equipment control.
- Utility Monitoring: Measures power flow in utility distribution systems to ensure reliable supply.
- OEM Equipment: Embedded in industrial machinery to monitor power usage and prevent overloads.
- Remote Site Monitoring: Uses long-distance Genius bus capability to monitor power in remote facilities.
- Installation & Maintenance:
- Terminal Block: Use IC660TBM100 for field wiring connections; ensure proper grounding for noise immunity.
- Power Connection: Supply 115/230VAC or 125VDC; verify voltage compatibility before installation.
- Transformer Wiring: Connect potential transformers (voltage) and current transformers (current) per the user manual to ensure accurate measurements.
- Genius Bus Integration: Connect to the Genius bus; set the module address via DIP switches for communication with the host.
- Configuration: Use a host PLC or HHM to set measurement parameters, transformer ratios, and communication settings.
- Troubleshooting: Check LED indicators for power, communication, and measurement status; use HHM to verify data accuracy and diagnose issues.
- Certifications: UL Listed, CE marked; compliant with industrial safety and EMC standards for reliable operation in harsh industrial environments.
