Product Introduction:

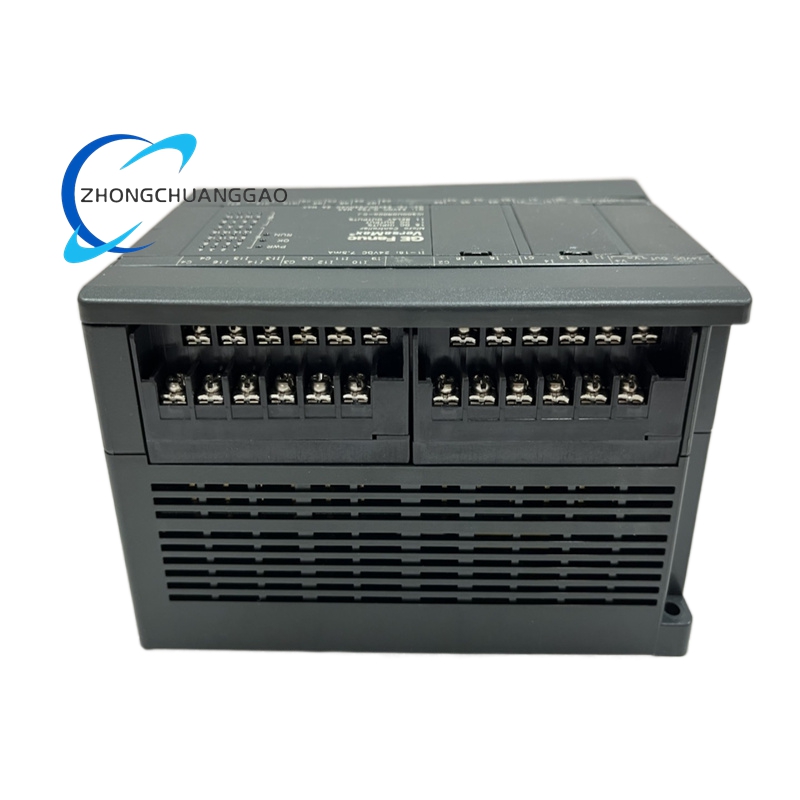

The IC200UDR005 is a 28-point micro PLC from GE Fanuc’s VersaMax series, designed for small-to-medium industrial automation. It integrates 16×24VDC digital inputs, 11×2A NO relay outputs, and 1×0.5A 24VDC output, with 9K words of logic memory, 2K words of register storage, dual serial ports (RJ45 RS-232 Port 1, DB-15 RS-485 Port 2), two analog pots, and a real-time clock. It supports up to 4 discrete and 4 analog expansion units (max 140 I/O points), runs on 120/240VAC (26VA), and uses VersaPro or Proficy Machine Edition for programming, with SNP, SNPX, and MODBUS RTU protocols. It features floating-point math, high-speed counters, and requires an IC200ACC403 battery for memory backup, offering a compact, cost-effective solution for standalone or distributed control in manufacturing, packaging, and building systems.
Description
- Technical Specifications:
- I/O Configuration: 16×24VDC inputs (18–30VDC, 7mA@24VDC); 11×NO relay outputs (5A@250VAC/30VDC resistive, 2A max per point); 1×24VDC output (0.5A)
- Memory: 9K words logic memory; 2K words register storage
- Expansion: Up to 4 discrete + 4 analog expansion units; max 140 I/O points
- Power: 120/240VAC (90–264VAC range), 47–63Hz, 26VA input power
- Communication: Port 1 (RJ45 RS-232): SNP, SNPX (breakless); Port 2 (DB-15 RS-485): SNP, SNPX, MODBUS RTU master/slave, SNP master, serial read/write
- High-Speed Counters: 1×Type B, 4×Type A high-speed counters
- Physical: 150mm×76mm×90mm (W×D×H); 0.6kg (1.32 lbs); DIN rail mount
- Environment: 0°C to 55°C operating; -40°C to 85°C storage; 5%–95% RH (non-condensing)
- Memory Backup: Requires IC200ACC403 battery
- Function Features:
- Integrated I/O: 28-point mix of 24VDC inputs, relay outputs, and 24VDC output for direct sensor/actuator connection
- Flexible Expansion: Supports up to 8 expansion units (4 discrete + 4 analog) for scalable I/O up to 140 points
- Dual Serial Ports: RS-232 (Port 1) for programming/HMI; RS-485 (Port 2) for networked devices with MODBUS RTU support
- Analog Pots: Two built-in pots for on-the-fly parameter adjustment without reprogramming
- High-Speed Counting: 5 counters (1×Type B, 4×Type A) for precise motion/process control
- Advanced Math: Floating-point math instructions for complex calculations
- Real-Time Clock: Supports time-stamping and scheduled operations
- Memory Backup: IC200ACC403 battery preserves program/registers during power loss
- Application Scenarios:
- Manufacturing Automation: Controls conveyors, sensors, and actuators in automotive, electronics, and packaging lines
- Process Control: Manages pumps, valves, and mixers in food/beverage, water/wastewater, and chemical systems
- Building Automation: Integrates HVAC, lighting, and access control with BMS via MODBUS RTU
- OEM Machinery: Embedded in compact equipment for standalone control with expansion capability
- Material Handling: Coordinates sorters, lifts, and AGVs using high-speed counters for position tracking
- Small-Scale Distributed Control: Links to HMI and remote I/O via dual serial ports for modular systems
- Programming & Maintenance:
- Software: VersaPro 1.1+ or Proficy Machine Edition Logic Developer for ladder logic, function block, structured text programming
- Online Editing: Modify logic without stopping the controller for minimal downtime
- Battery Replacement: Install IC200ACC403 to back up memory during power loss
- Mounting: Snap-on DIN rail for quick panel integration; secure wiring to terminal blocks for vibration resistance
- Diagnostics: LED indicators for power, I/O status, and communication activity; serial port access for remote troubleshooting
- Certifications: UL Listed, CE marked; compliant with IEC 61131-2 for industrial control equipment.
