Product Short Description
Product Introduction:

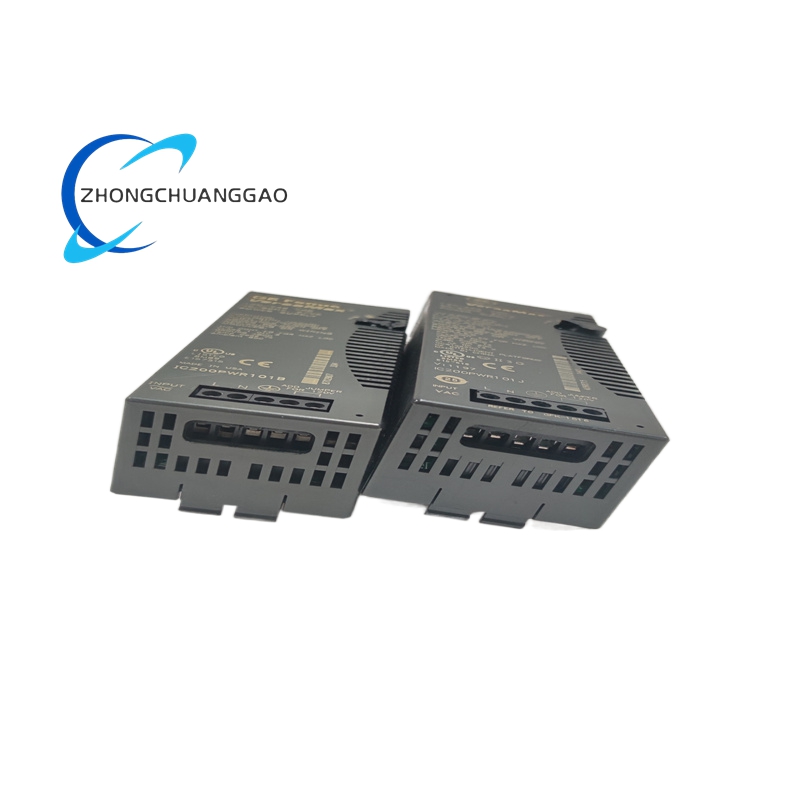

The IC200PWR101E is an AC-input power supply module from GE Fanuc’s VersaMax series, engineered to deliver 5VDC backplane power and 3.3VDC auxiliary logic power to VersaMax CPUs, NIUs, and I/O modules. It operates as a primary power source on CPU/NIU carriers or a secondary booster on IC200PWB001A carriers for large I/O chains, supporting 120/240VAC input (via jumper selection) with 47–63Hz frequency compatibility. It provides up to 1.5A total output (3.3VDC max 0.25A; 5VDC max 1.5A minus 3.3VDC current) with 20ms holdup time, and includes short circuit, overload, and input surge protection. DIN rail-mountable with Class 1 Div 2, Groups A–D, Temp Code T4 certification, it ensures reliable power for industrial automation in manufacturing, process control, and building systems.
Description
- Technical Specifications:
- Input Voltage: 120/240VAC (selectable via jumper); 90–264VAC (operating range)
- Input Frequency: 47–63Hz
- Input Power: 27VA
- Output Voltages: 5VDC (backplane power); 3.3VDC (auxiliary logic)
- Output Current: 3.3VDC max 0.25A; 5VDC max 1.5A (total minus 3.3VDC current)
- Holdup Time: 20ms (sustains output during brief input loss)
- Protection: Short circuit, overload, input surge (1500VAC, 1 minute)
- Mounting: 7.5mm × 35mm DIN rail (snap-on); fits CPU/NIU or IC200PWB001A carriers
- Dimensions: 49mm × 133.4mm × 39mm (width × height × depth, excluding DIN rail)
- Weight: 0.252kg (0.555 lbs)
- Environmental Ratings: 0°C to +60°C (operating); -40°C to +85°C (storage); 5%–95% RH (non-condensing)
- Certifications: Class 1 Div 2, Groups A–D; Temp Code T4; CE, UL Listed
- Function Features:
- Dual Voltage Input: 120/240VAC selectable via jumper for global grid compatibility
- Dual Output Power: 5VDC backplane power + 3.3VDC auxiliary logic power for VersaMax modules
- Primary/Booster Role: Works as main power on CPU/NIU carriers or booster on IC200PWB001A for large I/O chains
- High Holdup Time: 20ms output sustain during momentary input voltage dips
- Robust Protection: Short circuit, overload, and input surge safeguards prevent module damage
- Industrial Certification: Class 1 Div 2 rating for hazardous location use
- DIN Rail Compatibility: Snap-on installation for quick integration into control panels
- Application Scenarios:
- Manufacturing Automation: Primary/booster power for VersaMax I/O in automotive assembly, packaging lines, electronics production
- Process Control: Stable backplane power for pumps, valves, transmitters in chemical, water/wastewater, food/beverage plants
- Building Automation: Powers VersaMax NIU/CPU for HVAC, lighting, access control systems
- OEM Machinery: Embedded in custom equipment for compact, reliable power distribution
- Large I/O Systems: Combines with IC200PWB001A to eliminate voltage drop in long module chains
- Hazardous Locations: Class 1 Div 2 certification for oil/gas, chemical processing facilities
- Installation & Maintenance:
- Mounting: Snap onto DIN rail; attach to CPU/NIU or IC200PWB001A carrier
- Input Selection: Set jumper for 120VAC or 240VAC input before power-on
- Wiring: Connect L/N to AC input; ensure proper grounding for safety/EMC
- Power Setup: Verify input voltage matches jumper setting; avoid exceeding 1.5A total output current
- Diagnostics: Check carrier PWR/OK LEDs for power supply health; replace if faults persist
- Expansion: Add multiple modules via IC200PWB001A carriers for extended I/O chains
- Replacement: Hot-swappable (power off carrier first); no system shutdown required
- Carrier Compatibility:
- Primary Power: Mount on CPU or NIU carriers to power all modules in the chain
- Booster Power: Use with IC200PWB001A carriers to boost 5VDC for modules to the right
- Max Modules per Booster: Powers up to 8 VersaMax I/O modules per IC200PWB001A carrier
