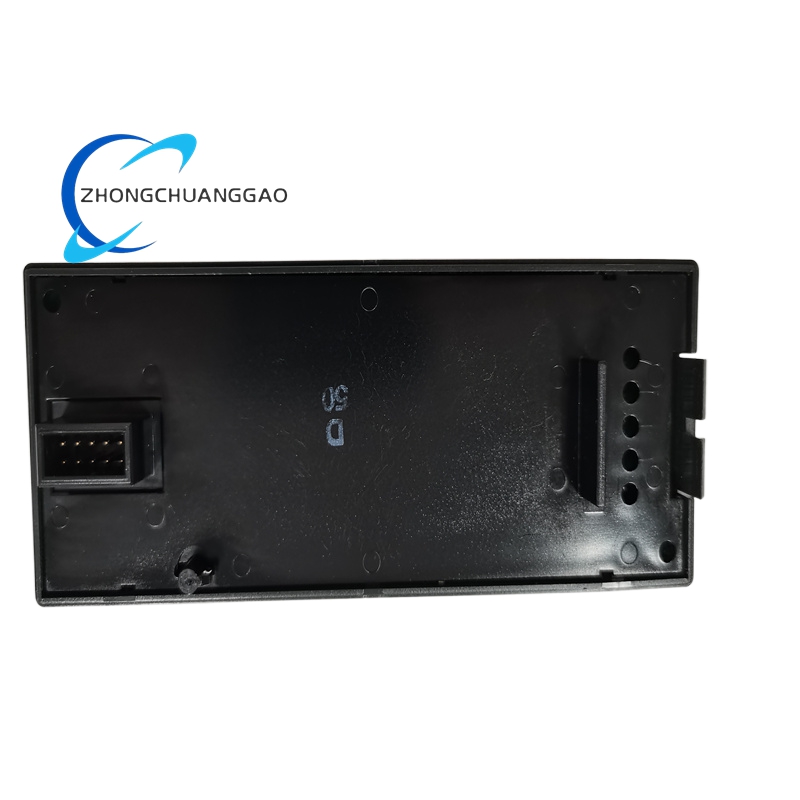

GE IC200PWB101D VersaMax 10‑Slot I/O Carrier Base

Description

Technical Specifications

• Module Type: 10‑slot I/O carrier base for VersaMax CPU/NIU and I/O modules.
• Slot Configuration: 1 leftmost slot (CPU/NIU); 9 right slots (discrete/analog/specialty I/O).
• Backplane Power Distribution: +5 VDC (max 1.5 A) and +3.3 VDC (max 0.25 A) from IC200PWR101D/001D power modules.
• Power Input: Terminal block (screw clamp, 2.5 mm² wire gauge) for 120/240 VAC (IC200PWR101D) or 24 VDC (IC200PWR001D).
• LED Indicators: Power (green, backplane power on); Carrier Status (green, carrier/module communication OK).
• Dimensions: 133.4 mm × 66.8 mm × 70 mm (depth); weight 0.14 kg (0.31 lbs).
• Mounting: 35 mm × 7.5 mm DIN rail (conductive/unpainted finish, grounded for EMC); panel mounting optional.
• Isolation: 250 VAC continuous (field‑to‑logic/frame ground); 1500 VAC for 1 minute (field‑to‑logic).
• Hot Insertion: Supported (I/O module replacement without system shutdown).
• Operating Environment: 0°C to +60°C; 5–95% RH (non‑condensing); IP20 protection.
• Certifications: CE, UL, CSA; Class I, Div. 2, Groups A–D; Class 1 Zone 2.

Functional Characteristics

• High‑Density I/O Integration: 10 slots accommodate CPU/NIU + 9 I/O modules, supporting up to 64 distributed I/O points.
• Dual Status LEDs: Power/Carrier Status indicators enable quick fault isolation (power loss, backplane errors, module misconfiguration).
• Hot Insertion: Allows I/O module replacement without system shutdown, minimizing maintenance downtime.
• Backplane Power Management: Distributes +5 VDC/+3.3 VDC to all slots, with overload/short‑circuit protection via IC200PWR101D/001D.
• EMC Protection: Grounded DIN rail reduces noise and transient interference, ensuring stable communication.
• VersaMax Compatibility: Works with all VersaMax I/O modules (discrete/analog/specialty) and carriers, preserving system integration.
• Mechanical Flexibility: DIN rail mounting with panel mounting option for high‑vibration environments (manufacturing, transportation).
• Firmware Update Support: Updates via backplane (controller in stop mode, network disconnected) for easy maintenance.

Application Scenarios

• Industrial Automation: Assembly lines, packaging machines, material handling; 10‑slot capacity integrates CPU + 9 I/O modules (discrete/analog), hot insertion supports maintenance without production stoppages.
• Process Control: Chemical, water treatment, food processing; links distributed sensors/valves to PLC via 9 I/O slots, dual LEDs isolate power/communication faults to avoid system shutdowns.
• Machine Control: CNC machines, textile equipment, printing presses; interfaces CPU with 9 I/O modules (motion control/auxiliary devices), high I/O density supports multi‑axis and auxiliary device control.
• Building Automation: HVAC, lighting, access control; integrates 10‑slot carrier with BMS networks, grouped isolation contains zone faults and simplifies wiring.
• Remote I/O Expansion: Distributed systems with 8+ I/O racks; 10‑slot capacity and hot insertion enable scalable, low‑downtime remote I/O management.
• Retrofit Projects: Upgrades legacy GE PLCs (Series 90‑70, PacSystems RX7i/RX3i) to VersaMax I/O, reusing existing power infrastructure while adding 10‑slot carriers for high‑density integration.
• High‑Density Installations: Factories with scattered I/O points; 10‑slot carrier reduces rack count and wiring costs vs. 8‑slot bases, diagnostics minimize troubleshooting time.
