Product Short Description
Product Introduction:

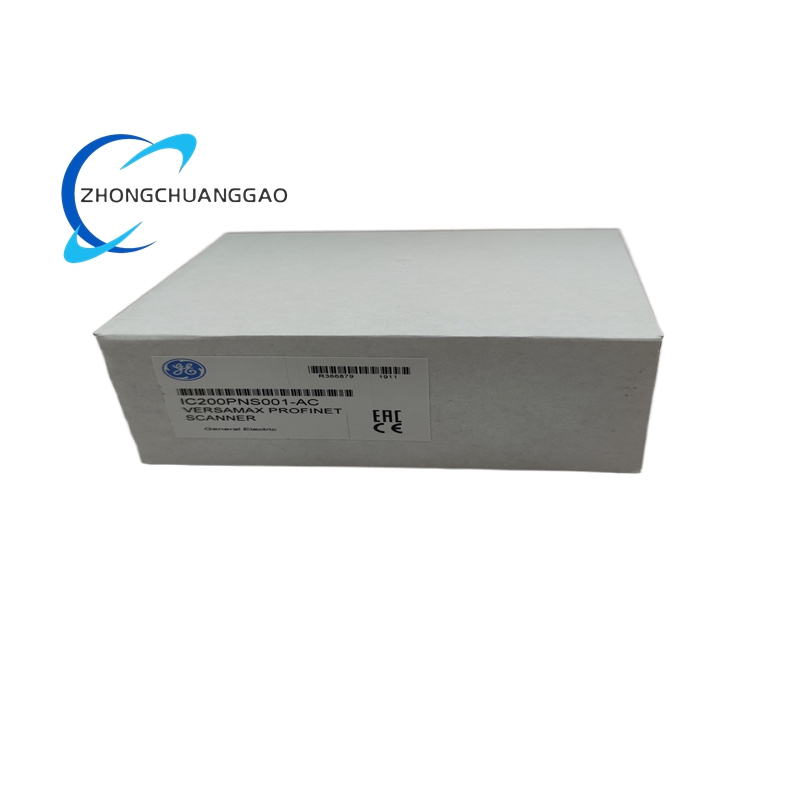

The IC200PNS001 is a PROFINET network interface unit (NIU) for GE Fanuc’s VersaMax I/O system, serving as a Class A IO-Device slave to connect up to 8 VersaMax I/O modules (discrete/analog) to a PROFINET controller (e.g., PACSystem RX3i/RX7i). It features two 10/100 Mbps RJ45 ports with embedded switch, supporting linear/daisy-chain/star/ring topologies, and handles 2880 bytes total discrete I/O (1440 in/1440 out) plus 2880 bytes analog I/O (1440 in/1440 out). Backplane-powered (5VDC @ 0.6A, 3W) with dual redundant power inputs, it includes status LEDs (OK, Connect, PWR1/PWR2) for diagnostics, enabling distributed I/O in manufacturing, process control, and building automation.
Description
- Technical Specifications:
- Network Protocol: PROFINET V2.2 Class A IO-Device (slave); Modbus TCP/RTU via backplane
- Ports: 2 RJ45 (10/100 Mbps auto-sensing; embedded switch for daisy-chain/ring)
- I/O Capacity: 2880 bytes discrete (1440 in/1440 out); 2880 bytes analog (1440 in/1440 out)
- Update Rate: 1ms–512ms configurable
- Max I/O Modules: 8 VersaMax modules per NIU
- Power: 5VDC backplane (0.6A max, 3W); dual 24VDC field power inputs (redundant)
- Isolation: 250VAC field-to-logic; 1500VAC surge (1 minute)
- Transmission Distance: 100m per segment (CAT5e/CAT6); extendable via switches/converters
- Dimensions: 134mm × 132mm × 52mm (width × height × depth)
- Weight: 0.59kg (1.3 lbs)
- Environmental Ratings: 0°C to +60°C (operating); -40°C to +85°C (storage); 5%–95% RH (non-condensing)
- LED Indicators: OK (green: operational; amber: fault); Connect (green: linked; amber: unlinked); PWR1/PWR2 (green: powered)
- Function Features:
- Embedded Switch: 2-port RJ45 enables daisy-chain/ring topologies without external switches
- High I/O Throughput: 2880 bytes discrete + 2880 bytes analog for large distributed systems
- Dual Power Redundancy: Two 24VDC inputs prevent single-point power failure
- Flexible Topologies: Linear/daisy-chain/star/ring (MRP support) for layout flexibility
- Real-Time Diagnostics: LEDs for network link, module health, and power status
- Controller Compatibility: Works with VersaMax CPUs, PACSystem RX3i/RX7i, Series 90-70
- Easy Configuration: Proficy Machine Edition V7.0+ for I/O mapping and update rate setup
- Application Scenarios:
- Manufacturing Automation: Automotive assembly, packaging lines, electronics production (distributed I/O for sensors/actuators)
- Process Control: Chemical, water/wastewater, food/beverage (remote I/O for pumps, valves, transmitters)
- Building Automation: HVAC, lighting, access control (distributed I/O with PROFINET integration)
- Material Handling: Conveyors, AGVs, palletizers (real-time I/O for motion control)
- Power Distribution: Motor starters, circuit breakers (remote monitoring/control via PROFINET)
- OEM Machinery: Embedded in custom equipment for compact distributed I/O with PROFINET connectivity
- Installation & Maintenance:
- Mounting: Snap onto VersaMax carrier (IC200CHSxxx); DIN rail-compatible
- Wiring: Connect RJ45 to PROFINET controller/switch; link modules via daisy-chain; connect dual 24VDC power
- Configuration: Use Proficy Machine Edition to set I/O mapping, update rate, and topology (ring/daisy-chain)
- Diagnostics: Check OK/Connect LEDs for network/module health; PWR1/PWR2 for power redundancy
- Redundancy: Enable MRP for ring topology; use dual 24VDC power inputs
- Replacement: Hot-swappable (carrier power off); restore configuration via backplane/software backup
