Product Short Description
Product Introduction:

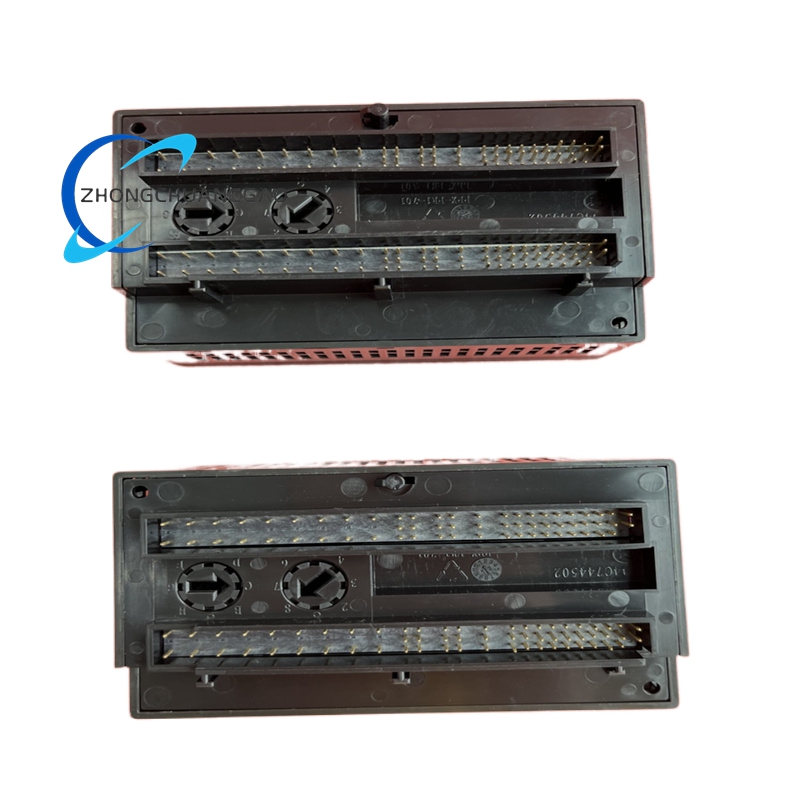

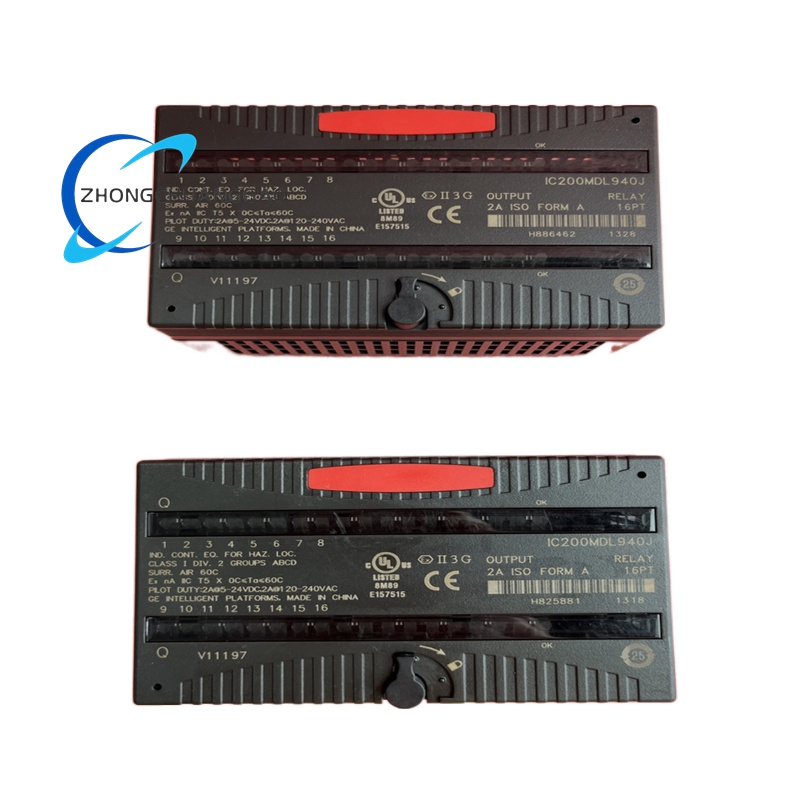

The IC200MDL940K is a 16‑point Form A (NO) relay output module from GE Fanuc’s VersaMax I/O series, designed for industrial automation to switch AC/DC loads (contactors, valves, heaters) with individually isolated channels and group isolation (2 groups × 8 points). It uses fixed‑coil moving‑armature relays with silver alloy contacts, supporting 0–265VAC (47–63Hz) and 0–125VDC, with 2.0A resistive rating (5–265VAC/5–30VDC) and 0.2A for 31–125VDC. Backplane‑powered (5VDC @ 490mA max) with external field power, it features individual output LEDs, plus OK/FLD PWR LEDs for diagnostics, and integrates with VersaMax CPUs/NIUs for manufacturing, process control, and building automation.
Description
- Technical Specifications:
- Output Configuration: 16 individually isolated Form A (NO) relay contacts; 2 groups × 8 points
- Field Voltage: 0–265VAC (47–63Hz); 0–125VDC (nominal 24VDC/120VAC/240VAC)
- Output Current: 2.0A (5–265VAC/5–30VDC resistive); 0.2A (31–125VDC); 10mA minimum per point
- Response Time: 10ms (open‑to‑close); 10ms (close‑to‑open)
- Voltage Drop: ≤0.3V at rated current
- Isolation: 250VAC continuous (field‑to‑logic/frame); 1500VAC for 1 minute (surge); channel‑to‑channel/group‑to‑group isolated
- Backplane Power: 5VDC @ 490mA max
- Terminals: Screw terminals; isolated per channel; shared common per group
- Dimensions: 117mm × 80mm × 47mm (width × height × depth)
- Weight: 0.25kg (0.55 lbs)
- Environmental Ratings: Operating 0°C to +60°C; storage -40°C to +85°C; humidity 5%–95% (non‑condensing)
- LED Indicators: 16 green (output on); OK (backplane power/communication); FLD PWR (field power)
- Protection: No internal fuses; rely on external protection for overcurrent/short‑circuit
- Function Features:
- Individual Channel Isolation: Enables mixed AC/DC loads per channel; prevents cross‑channel interference
- Wide Voltage Range: Supports 0–265VAC/0–125VDC for diverse industrial loads
- High Current Capacity: 2.0A rating drives heavy loads (contactors, heaters, large valves)
- Real‑Time Diagnostics: Individual output LEDs and OK/FLD PWR LEDs enable fast fault localization
- Grouped Isolation: 2 groups × 8 points simplify wiring and enhance system safety
- Silver Alloy Contacts: Ensure low contact resistance and long cycle life (10⁵ operations minimum)
- Backplane Power: No external logic power needed; hot‑swappable (carrier power off)
- Application Scenarios:
- Manufacturing Automation: Automotive assembly, packaging lines, electronics production for high‑power contactor/valve control
- Process Control: Chemical, water treatment, food/beverage plants for discrete actuation in distributed I/O setups
- Material Handling: Conveyor systems, palletizers, AGV control with mixed AC/DC load switching
- Building Automation: HVAC, lighting, access control with 24VDC/120VAC/240VAC devices
- OEM Equipment: Embedded in custom machines to minimize panel space and component count
- Power Distribution: Control of motor starters, circuit breakers, and transfer switches
- Installation & Maintenance:
- Mounting: Snap onto VersaMax carrier (IC200CHSxxx); ensure backplane alignment for power/communication
- Wiring: Connect field power to group commons; wire loads to individual output terminals; use shielded cables grounded at the module
- Configuration: Use VersaPro or PAC Machine Edition to set output mapping and fault handling
- Diagnostics: Check OK LED for backplane power/communication; FLD PWR for field power; output LEDs for status; clear faults via software reset
- Protection: Add external fuses (2–5A per channel) and surge suppressors for inductive loads
- Replacement: Hot‑swappable (carrier power off); confirm compatibility with VersaMax CPUs/NIUs
