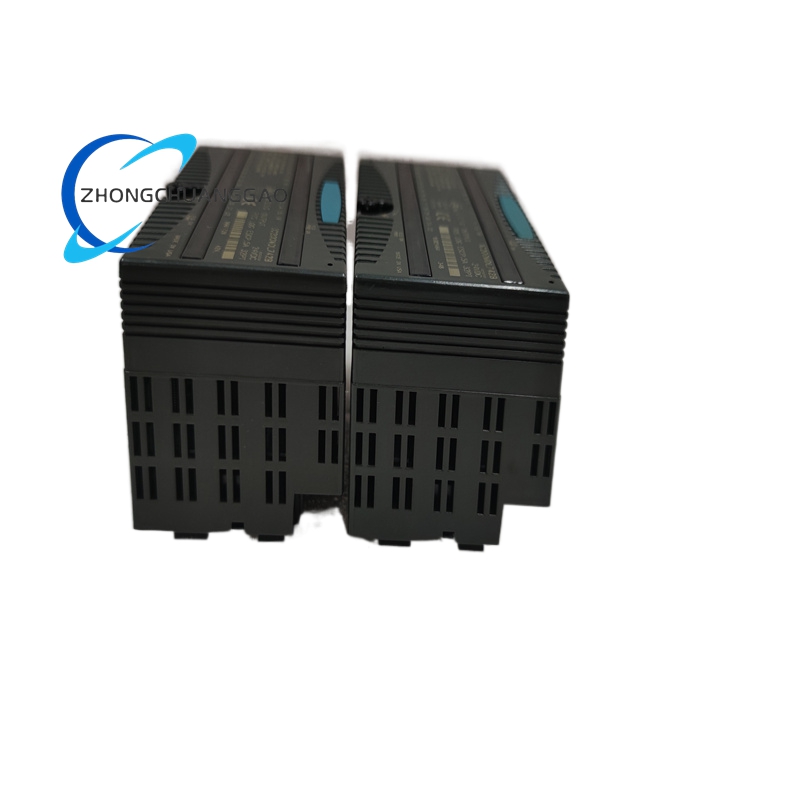

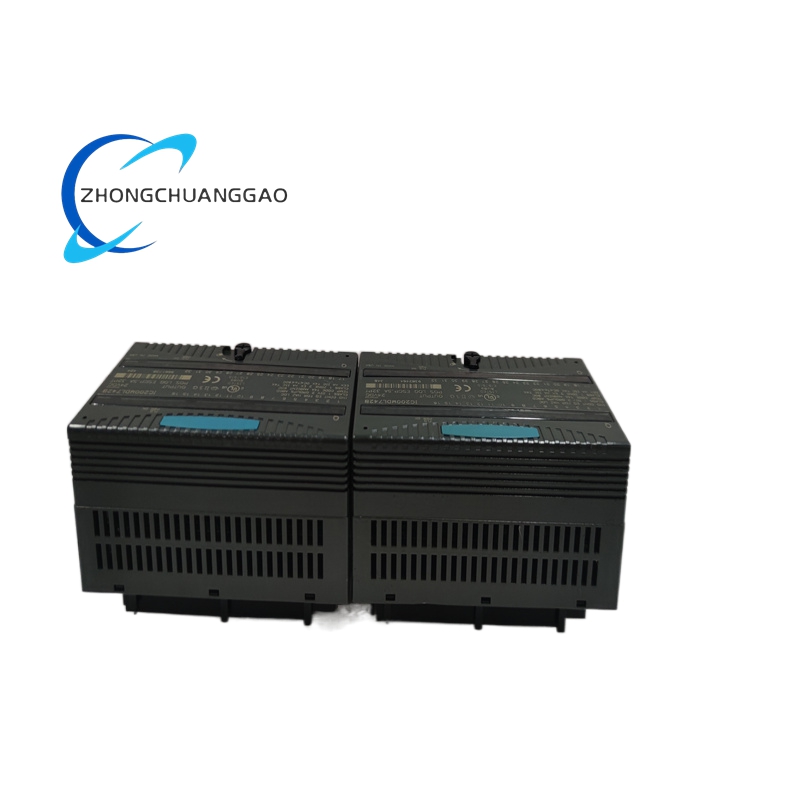

GE IC200MDL742 VersaMax 24 VDC Positive Logic 32‑Point Discrete Output Module

Description

Technical Specifications

• Module Type: 32‑point DC discrete output module for VersaMax I/O carriers.
• Output Configuration: 32 discrete outputs split into 2 groups of 16 points each.
• Output Logic: Positive logic/sinking; returns current to 24 VDC field devices via common terminals.
• Voltage Range: 18–30 VDC (nominal 24 VDC); output voltage drop max 0.5 V; leakage current max 0.5 mA (30 VDC).
• Output Current: 0.5 A per point continuous (resistive, 30 VDC); 2.0 A inrush for 100 ms (max).
• Response Time: On/off: max 0.5 ms each.
• Isolation: 250 VAC continuous (field‑to‑logic/frame ground; group‑to‑group); 1500 VAC for 1 minute.
• Protection Features: Electronic short circuit protection (ESCP), free‑wheeling diodes, overcurrent limiting per output.
• Power Requirements: Backplane +5 VDC @ 150 mA max; external field power 18–30 VDC (24 VDC nominal).
• LED Indicators: 32 individual green LEDs (output on/off); 1 green FLD PWR LED (field power present); 1 green OK LED (backplane power present).
• Dimensions: 110 mm × 66.8 mm × 50 mm; weight ~0.2 kg.
• Mounting: 35 mm × 7.5 mm DIN rail (conductive finish); hot insertion supported.
• Operating Environment: 0°C to +60°C; 5–95% RH (non‑condensing); CE, UL, CSA certified; Class I, Div. 2, Groups A–D; Class 1 Zone 2.
• Derating: No derating for ≤30 VDC; derate above 30 VDC based on ambient temperature and load type.

Functional Characteristics

• Dual Group Isolation: 2 isolated groups of 16 prevent cross‑group interference and simplify multi‑source wiring.
• Robust Output Protection: ESCP, free‑wheeling diodes, and overcurrent limiting safeguard outputs from short circuits and inductive kickbacks.
• Fast Response: 0.5 ms on/off response enables precise control of fast‑acting devices (e.g., small solenoids, valves).
• Inrush Handling: 2.0 A inrush for 100 ms accommodates startup surges from motors, solenoids, and other inductive loads.
• Real‑Time Status Monitoring: Individual LEDs verify output states; FLD PWR/OK LEDs confirm power presence for quick diagnostics.
• Hot Insertion Support: Allows replacement without system shutdown, minimizing maintenance downtime.
• Backplane‑Powered Logic: Eliminates external logic power wiring, reducing installation complexity.
• Broad Compatibility: 18–30 VDC range works with standard 24 VDC industrial actuators and control devices.

Application Scenarios

• Industrial Automation: Assembly lines, packaging machines, material handling; 32 outputs control 24 VDC solenoids, contactors, and indicator lights with grouped isolation preventing ground loops.
• Process Control: Chemical, water treatment, food processing; 0.5 ms response and inrush handling manage fast valves/pumps, while ESCP protects against pipe‑leak‑induced shorts.
• Machine Control: CNC machines, textile equipment, printing presses; positive logic integrates with 24 VDC sinking actuators, free‑wheeling diodes protect outputs from motor/inductor transients.
• Building Automation: HVAC, lighting, access control; 24 VDC compatibility integrates with building actuators, grouped isolation simplifies zone wiring.
• Remote I/O Expansion: Distributed systems using VersaMax NIUs; hot insertion supports maintenance without production stoppages.
• Retrofit Projects: Upgrades legacy GE PLCs (Series 90‑70, PacSystems RX7i/RX3i) with modern 32‑point I/O while reusing existing 24 VDC field wiring.
• High‑Density Installations: Space‑constrained enclosures needing 32 outputs in a single module, with protection features reducing downtime from wiring errors.
