Product Short Description
Product Introduction:

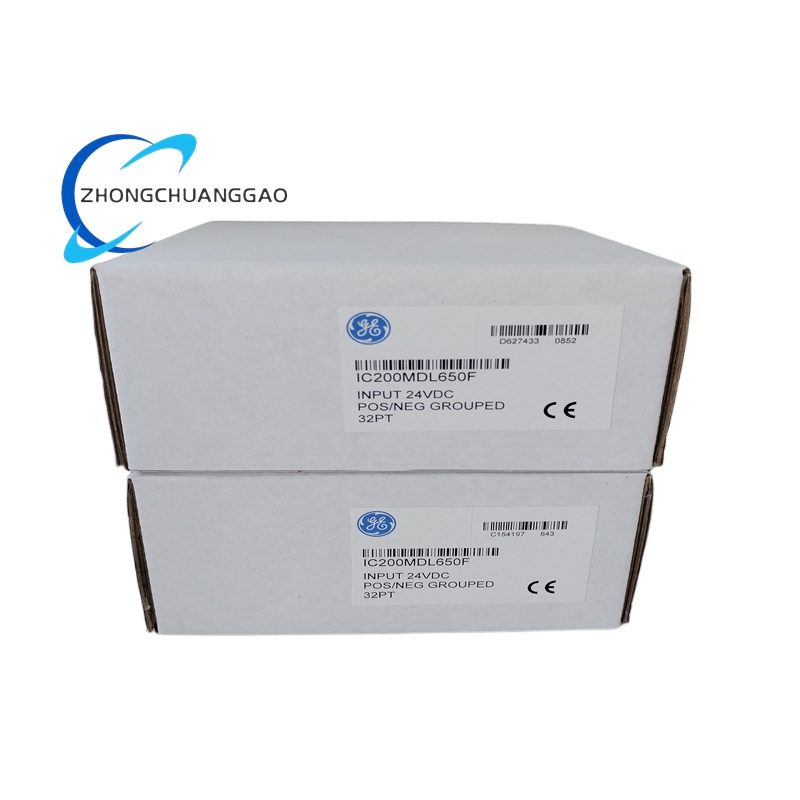

The IC200MDL650 is a 32‑point 24 VDC discrete input module in GE Fanuc’s VersaMax PLC series, organized into 4 isolated groups of 8 points each. It supports both positive logic (sourcing) and negative logic (sinking) configurations, with negative logic requiring version IC200MDL650C or higher. It uses backplane power (+5 VDC @ 50 mA) and relies on the host CPU/NIU for intelligent processing, delivering 32 bits of discrete input data. It features individual input status LEDs and a backplane power OK indicator, with 250 VAC continuous (1500 VAC for 1 minute) isolation between field‑to‑logic/frame ground and group‑to‑group. It supports hot insertion and fits standard DIN rails, making it ideal for industrial environments requiring flexible 24 VDC input acquisition.
Description
Technical Specifications
- Module Type: 32‑point discrete input module for VersaMax I/O carriers.
- I/O Configuration: 32 inputs in 4 groups of 8 points each.
- Logic Type: Positive logic (sourcing) and negative logic (sinking); negative logic requires IC200MDL650C or higher.
- Input Voltage: 0–30 VDC (nominal 24 VDC); ON: 15–30 VDC; OFF: 0–5 VDC.
- Input Current: ON: 2.0–5.5 mA; OFF: 0–0.5 mA.
- Input Impedance: ≤10 kΩ.
- Response Time: Base 0.5 ms; selectable filters (0/1/7 ms) via CPU configuration.
- Isolation: 250 VAC continuous (field‑to‑logic/frame ground; group‑to‑group); 1500 VAC for 1 minute.
- Power Requirements: Backplane +5 VDC @ 50 mA; no external power needed.
- LED Indicators: 32 individual green LEDs (input on/off); 1 green OK LED (backplane power).
- Dimensions: 110 mm × 66.8 mm × 50 mm; weight ~0.2 kg.
- Mounting: 35 mm × 7.5 mm DIN rail (conductive finish); hot insertion supported.
- Operating Environment: 0°C to +60°C; 5–95% RH (non‑condensing); CE, UL, CSA certified; Class I, Div. 2, Groups A–D; Class 1 Zone 2.
- Derating: No derating for ≤240 VAC; derate above 240 VAC based on ambient temperature.
Functional Characteristics
- Dual Logic Support: Positive/negative logic (sourcing/sinking) with IC200MDL650C+ enables flexible device compatibility.
- Quad Group Isolation: 4 isolated groups of 8 prevent cross‑group interference and simplify multi‑source wiring.
- Configurable Filtering: 0/1/7 ms filters suppress noise and contact bounce for reliable signal acquisition.
- Backplane‑Powered Operation: Eliminates external power wiring, reducing installation complexity.
- Real‑Time Status Monitoring: Individual LEDs enable instant input state verification; OK LED confirms backplane power.
- Hot Insertion: Allows replacement without system shutdown, minimizing maintenance downtime.
- Host‑Driven Processing: CPU/NIU handles intelligent control for consistent I/O processing across distributed systems.
- Broad Input Compatibility: 0–30 VDC range works with standard 24 VDC industrial sensors/switches.
Application Scenarios
- Industrial Automation: Assembly lines, packaging machines, material handling; 32 inputs monitor PNP/NPN sensors, pushbuttons, and limit switches with grouped isolation preventing ground loops.
- Process Control: Chemical, water treatment, food processing; 0.5 ms base response captures fast‑changing sensor data, while filters ensure noise immunity.
- Machine Control: CNC machines, textile equipment, printing presses; dual logic supports legacy sinking and modern sourcing sensors in mixed systems.
- Building Automation: HVAC, lighting, access control; 24 VDC compatibility integrates with building sensors/actuators, grouped isolation simplifies zone wiring.
- Remote I/O Expansion: Distributed systems using VersaMax NIUs; hot insertion supports maintenance without production stoppages.
- Retrofit Projects: Upgrades legacy GE PLCs (Series 90‑70, PacSystems RX7i/RX3i) with modern 32‑point I/O while reusing existing 24 VDC field wiring.
- Space‑Constrained Installations: Compact design fits small enclosures while delivering 32 inputs for cost‑effective system design.
