Product Short Description
Product Introduction:

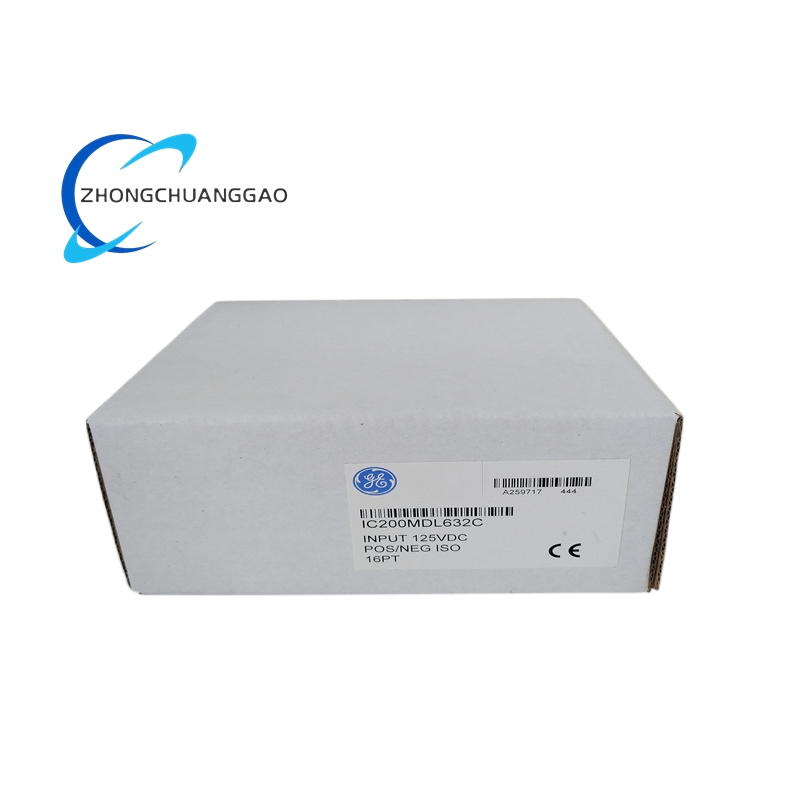

The IC200MDL632 is a 16-point discrete input module designed for GE Fanuc’s VersaMax PLC system, supporting both positive and negative logic for 125VDC field devices. It features channel-to-channel optical isolation, configurable input filters, and individual green LEDs for each input’s on/off status, with a green OK LED for backplane power/communication confirmation. The module is backplane-powered, requiring no external logic power, and integrates seamlessly with VersaMax CPUs/NIUs to provide 16 bits of discrete input data for industrial automation systems needing reliable 125VDC signal acquisition.
Description
- Technical Specifications:
- Input Configuration: 16 isolated discrete inputs (channel-to-channel isolation)
- Input Voltage: 125VDC nominal (0–150VDC operating range)
- Input Logic: Positive/negative selectable via software
- Input Threshold: ON ≥75 VDC, OFF ≤25 VDC
- Input Current: 1.7 mA typical at 125 VDC; 2.2 mA typical at 150 VDC
- Input Response Time: Base 0.5 ms; configurable filters (0/1.0/7.0 ms) for total 0.5/1.5/7.5 ms (default 1.0 ms filter = 1.5 ms total)
- Isolation: 250 VAC continuous (field-to-logic/frame); 1500 VAC for 1 minute (surge)
- Power: Backplane 5 VDC @ 80 mA max (no external logic power needed)
- Mounting: VersaMax I/O carrier (7.5 mm × 35 mm DIN rail-compatible)
- Dimensions: 44.5 mm × 121 mm × 82.5 mm (width × height × depth)
- Weight: 0.2 kg (0.44 lbs)
- Environmental Ratings: Operating 0°C to +60°C; storage -40°C to +85°C; humidity 5%–95% (non-condensing)
- LED Indicators: 16 individual green (input status); 1 green OK (backplane power/communication)
- Function Features:
- Dual Logic Support: Positive/negative logic enables flexible connection to 125VDC sensors/switches
- Channel Isolation: 250 VAC continuous isolation prevents cross-channel interference and protects logic circuits
- Configurable Filters: 0/1.0/7.0 ms filter times optimize noise immunity for high-speed/low-noise applications
- Real-Time Diagnostics: Individual input LEDs and OK LED enable quick troubleshooting of power/signal issues
- Backplane Power: Simplified installation with no external logic power required
- Seamless Integration: Works with all VersaMax CPUs/NIUs for distributed I/O systems
- Application Scenarios:
- Heavy Industry: Steel mills, mining, and oil/gas for high-voltage 125VDC sensor monitoring
- Process Control: Chemical, water/wastewater, and power plants for 125VDC discrete signal acquisition
- Manufacturing Automation: Paper mills, textile production, and metal processing with 125VDC limit switches/relays
- Transportation: Railway signaling, port cranes, and marine systems using 125VDC control circuits
- OEM Equipment: Embedded in custom machinery requiring isolated 125VDC input integration
- Retrofit Projects: Upgrading legacy systems to VersaMax with minimal wiring changes for 125VDC devices
- Installation & Maintenance:
- Mounting: Snap onto VersaMax carrier; ensure proper backplane alignment for power/communication
- Wiring: Connect 125VDC field devices to input terminals and return; use shielded cables grounded at the module
- Configuration: Use VersaPro or PAC Machine Edition to set input logic and filter times
- Diagnostics: Check OK LED for backplane power; input LEDs for status; verify filter settings via software
- Protection: Avoid reverse polarity on field wiring; use surge suppressors for inductive loads
- Replacement: Hot-swappable (with carrier power off) to minimize downtime; confirm logic setting compatibility
