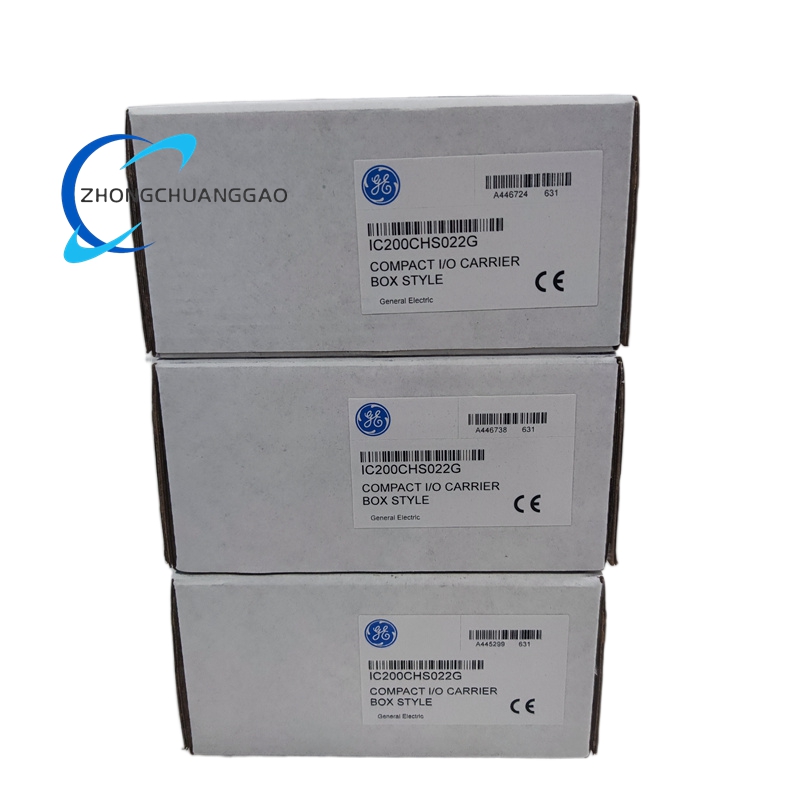

GE IC200CHS022 Compact Box‑Style I/O Carrier

Description

Technical Specifications

• Carrier Type: Compact box‑style I/O carrier for 1 VersaMax I/O module.
• Terminal Configuration: 36 IEC box‑style terminals (A1‑A18, B1‑B18).
• I/O Capacity: 32 I/O points + 4 shared power connections.
• Wire Compatibility: Single wire: AWG 14–22 (0.36–2.1 mm²); 2‑wire: AWG 18 (0.86 mm²); solid/stranded copper wire.
• Current Ratings: 2 A max per I/O point; 8 A max per power/ground segment.
• Voltage Rating: 0–264 VAC continuous; 300 VAC transient withstand.
• Mounting: 7.5 mm × 35 mm DIN rail (horizontal); panel mounting for vibration/shock; top/bottom clearance: 5.1 cm (2 in), side: 2.54 cm (1 in).
• Dimensions: ~66.8 mm × 167.89 mm × 70 mm (2.63 in × 6.61 in × 2.75 in).
• Weight: ~0.24 kg (0.53 lbs).
• Operating Temperature: -40°C to +70°C.
• Humidity: 5–95% RH (non‑condensing).
• EMC Protection: Requires grounded DIN rail (conductive, corrosion‑resistant finish).
• Backplane Connection: Male/female carrier connectors for tool‑free backplane installation.
• Certifications: CE, UL, FCC; Class I, Div. 2, Groups A–D; Class 1 Zone 2.

Functional Characteristics

• Single Module Hosting: Supports 1 VersaMax I/O module with backplane communication, mounting, and field wiring.
• Mechanical Keying: Prevents incorrect module installation via keying dials matched to module base keying.
• Transparent Hinged Cover: Protects terminals from dust while enabling visual inspection.
• Tool‑Free Backplane Assembly: Male/female connectors allow fast module‑to‑carrier installation without extra tools.
• Secure Module Latching: Module latch hole locks I/O modules firmly to the carrier.
• High‑Density Termination: 36 terminals for efficient wiring of 32 I/O points + 4 power lines.
• Robust Power Handling: 2 A per point and 8 A per power/ground segment for industrial loads.
• EMC Compliance: Grounded DIN rail ensures EMC protection in industrial environments.

Application Scenarios

• Industrial Automation: Hosts VersaMax digital/analog I/O modules in factories, connecting sensors/actuators to PLCs with compact DIN‑rail mounting.
• Process Control: Chemical/oil/gas/water treatment plants with 0–264 VAC devices; 32‑point I/O + 4 power lines for valves, pumps, and analyzers; certified for hazardous locations.
• Building Automation: HVAC/BMS with VersaMax I/O modules for centralized monitoring/control of dampers, meters, and controllers.
• Machine Control: Machine tools and packaging lines using DIN‑rail/panel mounting for quick I/O expansion and maintenance.
• Hazardous Locations: Class I, Div. 2 and Class 1 Zone 2 sites requiring reliable I/O connectivity in explosive atmospheres.
• Space‑Constrained Cabinets: Compact footprint fits into small control panels while supporting full I/O functionality.
