Product Short Description

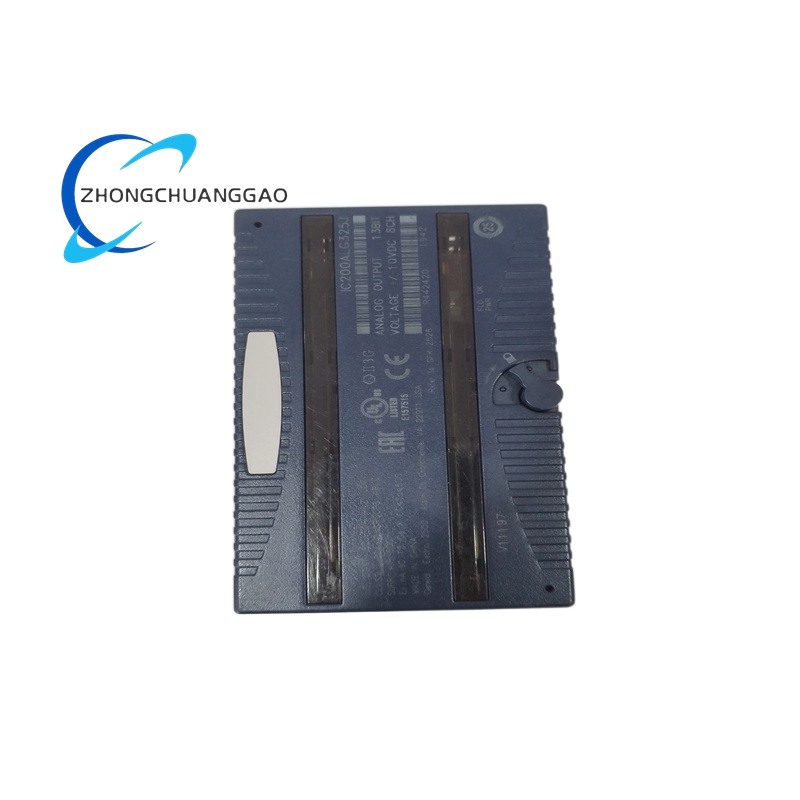

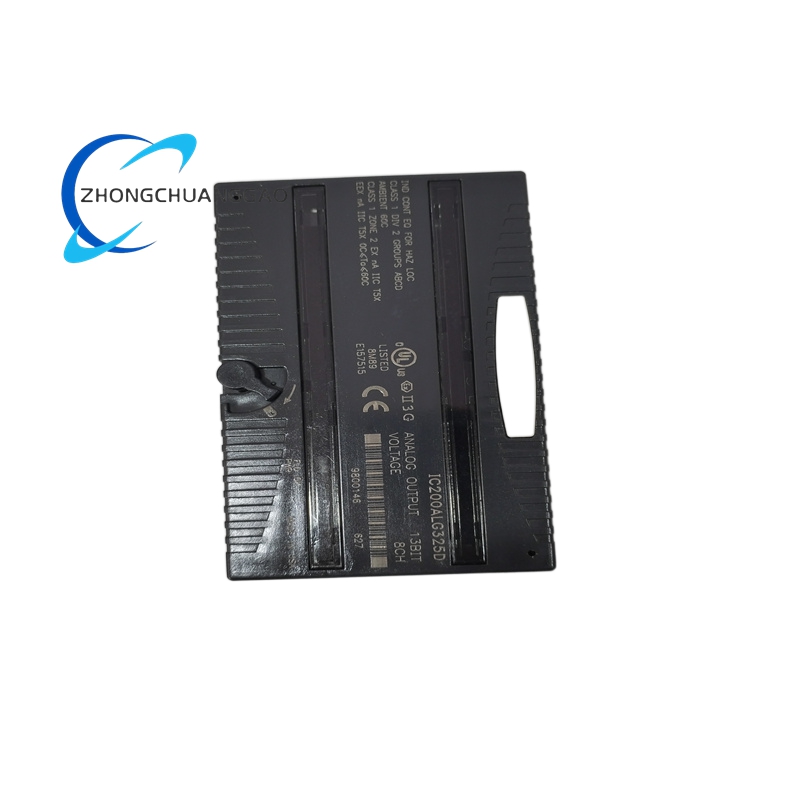

Product Introduction: The IC200ALG325 is an 8-channel, 13-bit voltage analog output module from GE Fanuc’s VersaMax series, converting digital data from PLCs into -10.24V to +10.24V DC (bipolar) or 0V to +10.24V DC (unipolar) voltage signals for industrial actuators/processes. It has 8 single-ended channels with a common return, requires external field power (user-side), and uses optical isolation between field circuits and logic/frame ground. It draws 50mA from the 5V backplane, supports software configuration for default/hold last state, and includes onboard diagnostics with LED indicators for reliable industrial control.
Description
Technical Specifications
- Channels: 8 single-ended voltage output channels in one group, common return, no channel-to-channel isolation.
- Output Signal Type: Bipolar (-10.24V to +10.24V DC) or unipolar (0V to +10.24V DC), software selectable.
- Resolution: 13-bit (8192 discrete levels); bipolar: 2.5 mV = 1 count; unipolar: 1.25 mV = 1 count.
- Accuracy: ±0.5% maximum of full scale at 25°C; ±1% maximum of full scale at 0-60°C.
- Output Impedance: 0.1 Ω typical (sourcing/sinking voltage output).
- Update Rate: 10 ms per module.
- Output Load: Minimum 1 kΩ (bipolar/unipolar).
- Isolation: 250 VAC continuous (user output to logic); 1500 VAC for 1 minute (user output to frame ground).
- Power Requirements: 50 mA max from 5V DC backplane; external field power: 12-36 VDC (24 VDC typical).
- Operating Temperature: -40°C to +70°C.
- Humidity: 5-95% RH (non-condensing).
- Dimensions: ~110 mm × 66.8 mm × 50 mm (4.3 in × 2.63 in × 1.956 in).
- Weight: ~0.5 kg.
- LED Indicators: “FLD PWR” (external field power present); “OK” (backplane power, configuration, no hardware faults).
- Software Compatibility: VersaPro Software Version 2.0+; VersaMax Ethernet NIU Firmware Version 1.10+; VersaMax PLC CPU Firmware Version 2.10+.
Functional Characteristics
- 8-Channel Density: 8 single-ended channels maximize I/O coverage for cost-efficient voltage signal control.
- Software Range Selection: Bipolar/unipolar mode selected via software, no manual jumper changes.
- Output State Management: Software-configurable default/hold last state operation for error handling.
- Optical Isolation: 250 VAC continuous, 1500 VAC for 1 minute isolation protects logic circuits from field-side noise/surges.
- Onboard Diagnostics: Detects loss of field power, backplane power, and output driver faults, with LED status indication for quick troubleshooting.
- Fast Update Rate: 10 ms per module ensures real-time responsiveness to dynamic process changes.
- Backplane Power Efficiency: Low 50 mA draw from 5V backplane minimizes power load on the system.
- Seamless Integration: Works with VersaMax CPUs/NIUs, providing 8 words of analog output data for host interfaces.
Application Scenarios
- Process Control: Chemical plants, oil refineries, and water treatment facilities for valve positioning, pH adjustment, and flow control with voltage-driven actuators.
- Manufacturing Automation: Assembly lines and packaging machines connecting variable frequency drives (VFDs), positioners, and heaters to PLCs for closed-loop control.
- Building Automation: HVAC systems controlling dampers, valves, and VFDs with 0-10V or ±10V control signals.
- Energy Management: Power generation/distribution for generator voltage regulation, transformer tap changer control, and grid reactive power management via voltage outputs.
- Test & Measurement: Lab and production line testing requiring high-channel-count voltage signal generation with 13-bit precision.
- Remote SCADA: Unattended sites with VersaMax PLCs, leveraging external field power, isolation, and diagnostics for reliable long-term operation.
