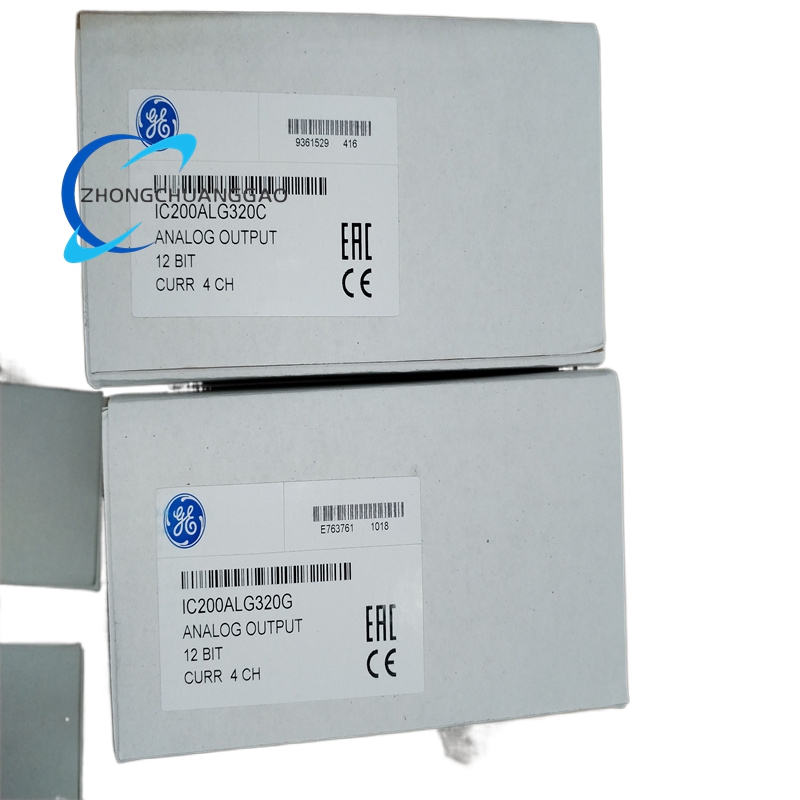

GE IC200ALG320

Description

• Technical Specifications:
  • Output Channels: 4 single-ended current-sourcing outputs (single group, shared common)
  • Output Signal: 4–20 mA (current-sourcing); Over-range capacity up to 20.38 mA
  • Resolution: 12 bits (4096 discrete levels); Digital resolution: 4 µA per count
  • Update Rate: 0.3 ms maximum per module
  • Accuracy: ±0.3% typical full scale; ±1% maximum full scale (0–60°C)
  • Power Requirements: External field power: 9.6–15 VDC (12 VDC nominal) or 18–30 VDC (24 VDC nominal); Backplane power: 5 VDC, 50 mA max consumption
  • Output Impedance: Sufficient to drive up to 600 Ohms (24 VDC supply) or 300 Ohms (12 VDC supply)
  • Isolation: Optical isolation between outputs and logic; 250 VAC continuous/1500 VAC for 1 minute to frame ground
  • Diagnostics: Loss of user-side power detection; LED indicators (FLD PWR, OK)
  • Power Loss Response: Jumper-configurable: retains last state or defaults to 4 mA
  • Environmental Ratings: Operating temperature 0°C to +60°C; Storage temperature -40°C to +85°C; Humidity 5%–95% (non-condensing)
  • Dimensions: Standard VersaMax module form factor; Weight 0.15 kg (0.33 lbs)
  • Module ID: FFFF9007
• Function Features:
  • Current-Sourcing Topology: Drives 4–20 mA loops for industrial actuators, valves, and transmitters with stable current output
  • 12-Bit Precision: Delivers 4 µA resolution for fine control in process and motion applications
  • Fast Update Rate: 0.3 ms response supports dynamic closed-loop control systems
  • Jumper-Configurable Power Loss Response: Allows tailored fault handling (last state retention or safe 4 mA default)
  • Dual Voltage Compatibility: Works with 12 VDC or 24 VDC field power for flexible system integration
  • Integrated Diagnostics: LED indicators for field power and module status; loss of user power detection for fault alarms
  • Seamless Integration: Installs on VersaMax I/O carriers (IC200CHS series) for modular I/O expansion
  • Over-Range Capability: Up to 20.38 mA output for edge-case control scenarios
• Application Scenarios:
  • Process Control: Drives control valves, variable frequency drives (VFDs), and actuators in chemical, oil/gas, and water treatment plants using 4–20 mA signals
  • Manufacturing Automation: Provides precise current outputs for proportional control of hydraulic/pneumatic valves, motor speed controllers, and quality control actuators in automotive, packaging, and assembly lines
  • Power Generation/Distribution: Controls grid equipment (circuit breakers, tap changers) and generator excitation systems via 4–20 mA command signals
  • Building Automation: Operates HVAC dampers, lighting dimmers, and energy management actuators in commercial and industrial facilities
  • Material Handling: Controls conveyor speed, crane positioning, and automated storage system actuators for precise motion control
• Installation & Maintenance:
  • Mounting: Install on VersaMax I/O carriers (IC200CHS001/002/005/022/025) with auxiliary terminal strips (IC200TBM series) for wiring
  • Configuration: Set power loss response jumper (last state/default 4 mA) before power-up; select external field power (12 VDC or 24 VDC) based on load impedance
  • Wiring: Use single-ended wiring with shielded cables; ground shields at source or module via auxiliary terminal; ensure field power matches load impedance requirements
  • Maintenance: No scheduled replacement parts; check LED indicators for field power and module status; verify power loss response during commissioning
  • Replacement: Direct drop-in for IC200ALG320; retains configuration via jumper settings and backplane communication
