Product Short Description
- Product Introduction:

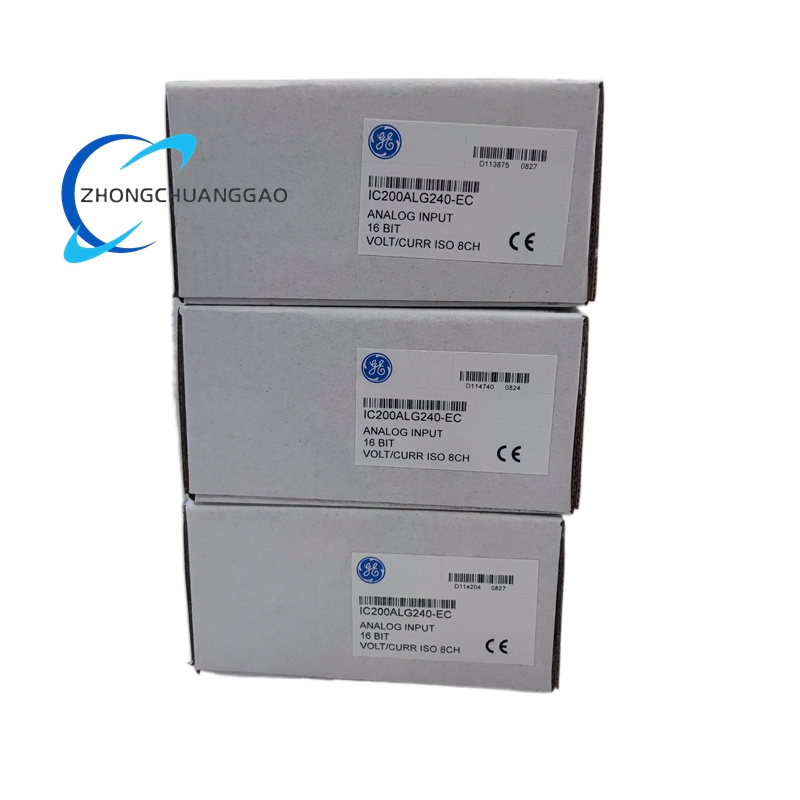

- The IC200ALG240 is an 8-channel isolated analog input module in GE’s VersaMax series, designed for industrial data acquisition by converting ±10 VDC voltage or 1–20 mA (4–20 mA standard) current signals into 16-bit digital values for PLC/controller processing. It features full optical isolation between channels and logic, software-configurable ranges, open wire detection, and factory calibration for high accuracy. The module requires backplane logic power and optional external field power for current mode, with LED indicators for status/diagnostics, enabling seamless integration with VersaMax I/O carriers for industrial control systems.
Description
- Technical Specifications:
- Input Channels: 8 isolated channels (each channel individually isolated)
- Signal Types: Voltage (±10 VDC); Current (1–20 mA, compatible with 4–20 mA)
- Resolution: 16 bits (65,536 discrete levels)
- Accuracy: ±0.1% of full scale at 25°C
- Update Rate: 20 ms (50 Hz filter); 16.7 ms (60 Hz filter)
- Isolation: 250 VAC continuous / 1500 VAC for 1 minute (input-to-logic/frame ground; channel-to-channel)
- Power: Backplane (5 VDC: 15 mA max; 3.3 VDC: 120 mA max); External field power (+19.5–+30 VDC, 100 mA max)
- Input Impedance: Voltage mode 760 kΩ; Current mode 150 Ω
- Diagnostics: Open wire detection, over/underrange, field power loss, NVRAM full
- Environmental Ratings: Operating temperature 0°C to +60°C; Storage temperature -40°C to +85°C; Humidity 5%–95% (non-condensing)
- Dimensions: 10.8 cm × 6.3 cm × 5.7 cm (4.3″ × 2.5″ × 2.3″); Weight 0.1 kg (4.8 oz)
- Function Features:
- 8 Individually Isolated Channels: Prevents cross-talk and protects the control system from ground loops/noise in industrial environments
- 16-Bit High Resolution: Captures small signal changes for precise measurement and control
- Software-Configurable Ranges: Voltage/current mode and ranges set via programming, no jumpers needed
- Open Wire Detection: Identifies broken sensor wires for proactive maintenance and fault prevention
- Factory Calibration: Ensures long-term accuracy without field calibration
- Dual Power Options: Backplane logic power and optional external field power for current mode flexibility
- Comprehensive Diagnostics: Alarms for over/underrange, field power loss, and NVRAM full; LED indicators (FLD PWR, OK) for status monitoring
- Seamless Integration: Works with VersaMax I/O carriers (IC200CHS series) and terminal strips for modular I/O expansion
- Configurable Fault Response: Holds last valid state or uses predefined value on module error
- Application Scenarios:
- Process Control: Monitors pressure, temperature, flow, and level via transmitters in chemical, oil/gas, and water treatment plants
- Manufacturing Automation: Acquires analog data from sensors for machine control, quality monitoring, and closed-loop feedback in automotive, packaging, and assembly lines
- Power Generation/Distribution: Captures voltage, current, and power signals from transformers, switchgear, and generators for monitoring and protection
- Building Automation: Interfaces with HVAC, lighting, and energy management sensors (temperature, humidity, airflow) for facility control systems
- Material Handling: Monitors load cells, position sensors, and speed feedback for conveyors, cranes, and automated storage systems
- Installation & Maintenance:
- Mounting: Install on VersaMax I/O carriers (IC200CHS001/002/005) with auxiliary terminal strips (IC200TBM001/002/005) for wiring
- Configuration: Set signal type/range via programming software; no jumpers required
- Wiring: Connect voltage/current signals to isolated channels; use shielded cables for noise immunity; provide external field power for current mode
- Maintenance: No scheduled replacement parts; check LED indicators for power/status; verify open wire detection during troubleshooting
- Replacement: Direct drop-in for IC200ALG240; retains configuration via backplane communication and programming software
