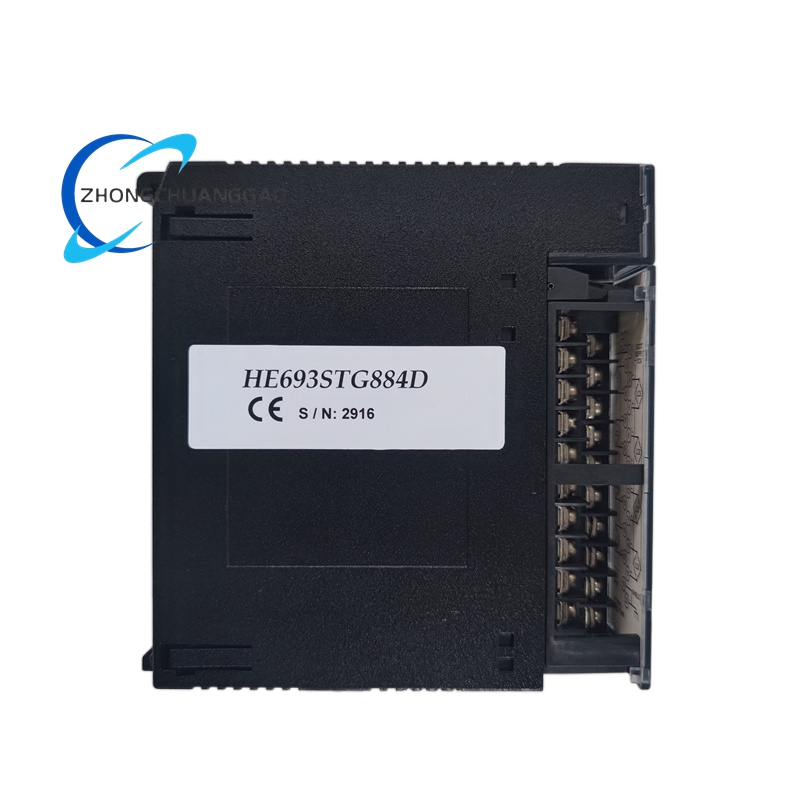

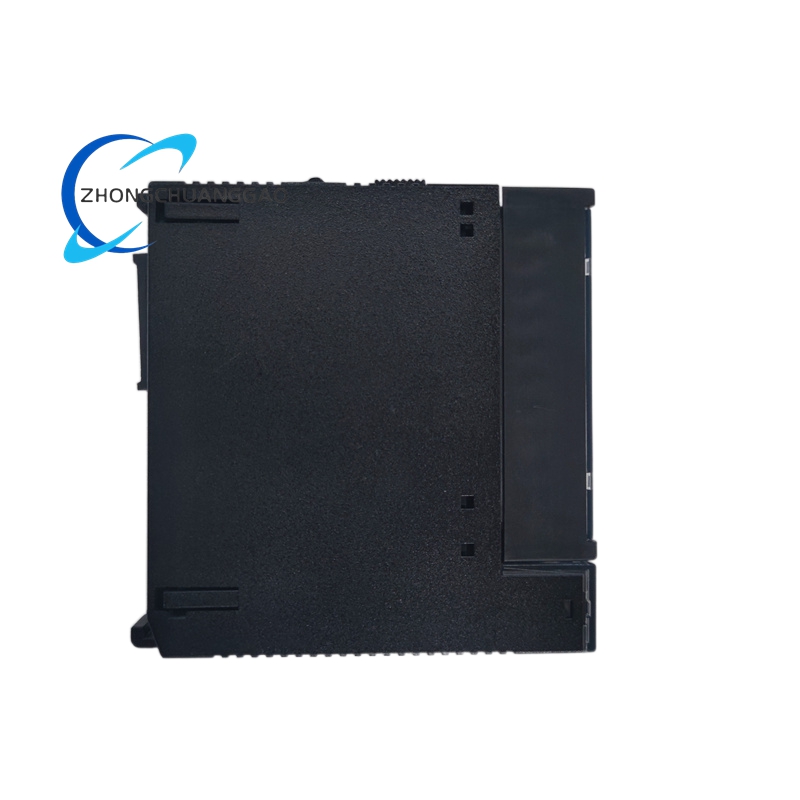

The GE HE693STG884D is an 8-channel isolated strain gage and millivolt input module tailored for GE Fanuc Series 90-30 PLC systems, designed to directly interface with bridged strain gages and low-level millivolt sensors without external signal conditioners. It converts differential strain gage signals and millivolt inputs into 16-bit digital values, which are then made available to the PLC via the backplane. The module performs on-board signal conditioning, linearization, and noise reduction, and it supports channel-by-channel configuration of input ranges (±25mV, ±50mV, ±100mV) through Logicmaster software. It incorporates 250 VDC channel-to-bus isolation and 50 VAC channel-to-channel isolation to prevent ground loops and voltage transients in industrial settings. It integrates 8 dedicated %AI registers for input data, 8 %AQ registers for alarm setpoints, and 16 %I bits for alarm status indication, making it ideal for precision weighing, force measurement, and strain monitoring applications that demand high accuracy and real-time data acquisition.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE Fanuc (Series 90-30 PLC Product Line) |
| Model | HE693STG884D (8-Channel Isolated Strain Gage/Millivolt Input Module) |
| Product Type | Series 90-30 PLC Strain Gage/Millivolt Input Module |
| Number of Channels | 8 independent differential input channels |
| Input Type | Bridged strain gages (120 Ω/350 Ω), low-level millivolt signals |
| Configurable Input Ranges | ±25 mV, ±50 mV, ±100 mV (channel-by-channel selectable via software) |
| Resolution | 16-bit (0.8 μV for ±25 mV; 1.6 μV for ±50 mV; 3.1 μV for ±100 mV) |
| Accuracy | ±0.05% of full scale (after calibration and linearization) |
| Isolation | 250 VDC channel-to-bus isolation; 50 VAC channel-to-channel isolation |
| Power Requirements | 5 VDC @ 150 mA (typical); 0.75 W max power consumption |
| Conversion Time | 4 ms per channel (all 8 channels updated within 32 ms) |
| Data Access | 8 %AI registers (input data); 8 %AQ registers (alarm setpoints); 16 %I bits (alarm status) |
| Strain Gage Compatibility | 120 Ω and 350 Ω full-bridge, half-bridge, quarter-bridge configurations |
| Input Impedance | >10 MΩ (differential mode) to minimize sensor loading |
| Operating Temperature | -40°C to +70°C (ambient) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0%–95% RH (non-condensing) |
| EMI/RFI Immunity | Complies with EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4 |
| Dimensions | 110 mm × 90 mm × 30 mm (standard Series 90-30 module size) |
| Weight | Approximately 200 g |
| Compliance | UL 508, CE Mark, RoHS compliant |
Functional Features
- 8 Independent Channels: Supports eight bridged strain gages or millivolt sensors simultaneously for multi-point measurement.
- On-Board Signal Conditioning: Handles amplification, filtering, and linearization locally, reducing PLC CPU load and data latency.
- Channel-Configurable Ranges: Selects ±25 mV, ±50 mV, or ±100 mV per channel via Logicmaster, matching diverse sensor output levels.
- 250 VDC Channel-to-Bus Isolation: Shields the PLC backplane from high-voltage transients in industrial power environments.
- 50 VAC Channel-to-Channel Isolation: Eliminates cross-talk and ground loops between channels, ensuring data integrity.
- 16-Bit High Resolution: Delivers microvolt-level precision for strain, force, and weight measurements.
- Dedicated Alarm Registers: 8 %AQ registers set alarm thresholds; 16 %I bits indicate active alarms for rapid status checks.
- Direct Strain Gage Interface: Connects directly to 120 Ω/350 Ω strain gages without external signal conditioners, reducing costs.
- Software Configuration: Channel ranges and alarm parameters configured via Logicmaster, no hardware jumpers required.
- Fast Conversion Rate: 4 ms per channel enables real-time monitoring of dynamic processes.
- Robust Environmental Rating: Operates in -40°C to +70°C ambient temperatures, suitable for harsh industrial installations.
- RoHS Compliance: Uses lead-free components to meet global environmental standards.
Application Scenarios
- Industrial Weighing Systems: Measures tank contents, hopper loads, and conveyor belt weights in manufacturing and logistics, ensuring accurate inventory and process control.
- Structural Health Monitoring: Tracks strain on bridges, buildings, and industrial machinery for load monitoring and safety assessment.
- Aerospace & Automotive Testing: Measures material strain during component testing, crash simulations, and engine performance evaluations.
- Material Processing: Monitors roll force in steel mills, press load in metal forming, and tension in fiber manufacturing to maintain product quality.
- Mining & Construction: Tracks load on excavator arms, crane cables, and concrete formwork to prevent equipment overload and structural failure.
- Food & Beverage Production: Controls filling machine weights, packaging line loads, and mixing tank ingredient dosing for consistent product volumes.
- Pharmaceutical Manufacturing: Measures pressure and force in tablet presses and capsule filling machines to ensure dosage accuracy and regulatory compliance.
