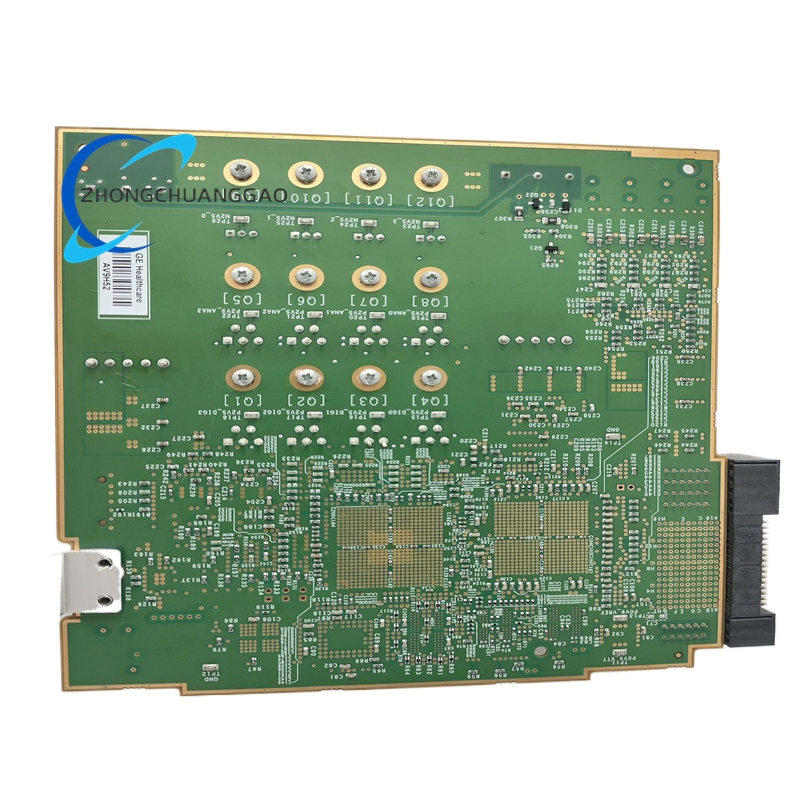

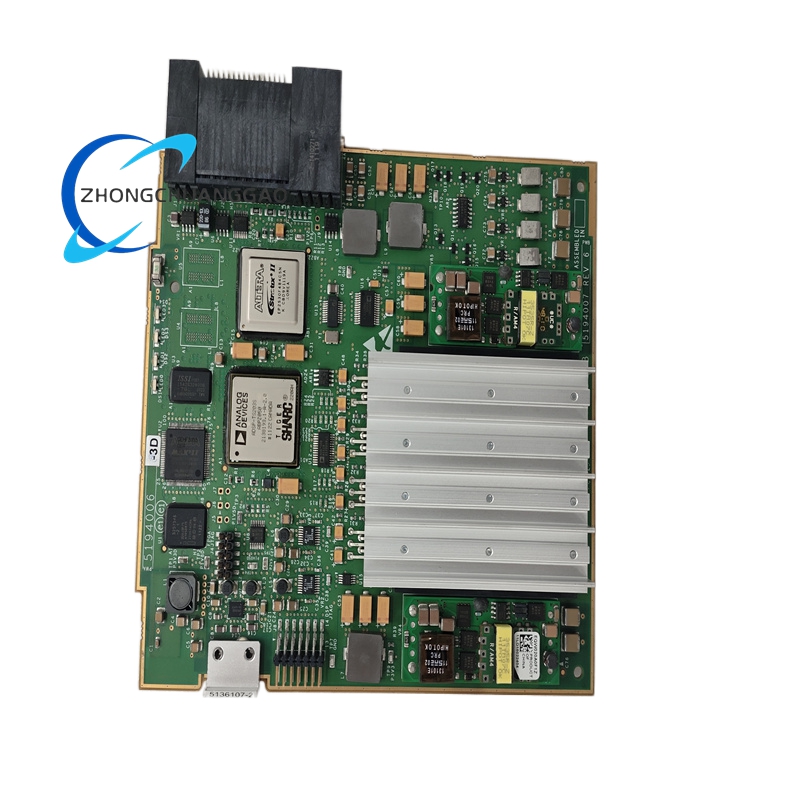

The GE HD DIFB 5194006-3 is a High-Definition DAS (Data Acquisition System) Interface Board designed for GE HealthCare Computed Tomography (CT) scanners, specifically integrated into DAS subsystems like VCT HD, HALO LS64, Sherlock to HALO Upgrade Kit, and CT DAS assemblies. It acts as the core interface between A/D converter modules and the DAS Controller Board (DCB), receiving raw scan data from detectors, executing low-level processing (including data formatting, noise reduction, and synchronization), and transmitting processed data via LVDS to the DCB for further reconstruction. The board incorporates high-precision SMT components, a lead-free power supply sequencer, LVDS dual CMOS differential line receivers, and a Cast CAN IP Core for reliable communication. It ensures consistent data integrity and signal stability in high-speed CT scanning environments, supporting high-resolution imaging with minimal latency. The HD DIFB 5194006-3 is a critical replacement part for maintaining scanner uptime, with a substitute part number 5143018 and a remanufactured variant (5194006-3-R) available for exchange programs. It complies with medical device quality standards, featuring robust construction with enhanced durability for continuous clinical operation.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE HealthCare (Grid Solutions, Medical Imaging Division) |
| Model | HD DIFB 5194006-3 (High-Definition DAS Interface Board) |
| Product Type | CT Scanner DAS Interface Board (Detector to DCB Data Link) |
| Primary Function | Data acquisition, low-level processing, LVDS data transmission to DCB |
| Compatible CT Systems | VCT HD, HALO LS64, Sherlock to HALO Upgrade Kit, GE Revolution CT, CT DAS Subsystems |
| Substitute Part Number | 5143018; Remanufactured Variant: 5194006-3-R |
| Key Components | SMT resistors/capacitors, LED indicator (green), inductors, clock driver, A/D converter interface, surface-mount pin headers, Zener diodes, protection fuses, IC amplifiers, operational amplifiers, flash memory, logic interface drivers, ferrit chips, reference voltage regulators, lead-free power supply sequencer, LVDS dual CMOS differential line receivers, crystal oscillator, resistor arrays, linear multiplexers, Cast CAN IP Core, heat sink, Philips head screw assembly |
| Data Input | Raw analog-to-digital converted scan data from detector A/D modules |
| Data Output | Processed data via LVDS (Low-Voltage Differential Signaling) to DCB |
| Communication Protocol | LVDS (for high-speed data transfer); Cast CAN IP Core (for system control/monitoring) |
| Power Requirements | Board-level power: 3.3 VDC / 5 VDC (supplied by DAS subsystem); Lead-free power supply sequencer for voltage regulation |
| Form Factor | Printed Wiring Assembly (PWA); Surface-mount technology (SMT) construction |
| Operating Temperature | 0°C to +40°C (clinical environment); Storage: -20°C to +60°C |
| Humidity | 10%–90% RH (non-condensing); Compliant with IEC 60601-1-2 EMC standards |
| EMC Compliance | EN 55011 (radiated emissions); EN 61000-4-2 (ESD); EN 61000-4-3 (RF immunity); EN 61000-4-4 (electrical fast transients) |
| Mechanical Features | Heat sink for thermal management; Spring pins and spacers for secure mounting; Flip-chip underfill encapsulation for vibration resistance |
| Quality Certification | ISO 13485 (medical device quality); CE Marked for European market; FDA 510(k) cleared |
| Packaging | ESD-shielded anti-static bag; labeled with QA seal and part details to prevent transit damage |
Functional Features
- Low-Level Data Processing: Formats raw scan data, reduces noise, and synchronizes signals to ensure consistent data integrity for high-resolution CT imaging.
- LVDS High-Speed Communication: Uses LVDS dual CMOS differential line receivers for low-latency, high-bandwidth data transmission to the DCB, supporting rapid scan sequences.
- Cast CAN IP Core: Enables robust system control and monitoring, facilitating real-time diagnostics and fault reporting.
- Lead-Free Power Sequencer: Regulates voltage delivery to components, preventing power surges and extending board lifespan.
- SMT Component Design: High-precision surface-mount components enhance dimensional stability and signal accuracy, minimizing interference.
- Integrated Heat Sink: Dissipates heat from high-power components, maintaining optimal operating temperatures during extended scans.
- Protection Fuses & Zener Diodes: Safeguards against overvoltage and short circuits, preventing damage to the board and connected subsystems.
- Green LED Indicator: Provides visual status of board operation, simplifying troubleshooting and system checks.
- Direct A/D Module Interface: Connects seamlessly to detector A/D converters, ensuring minimal signal loss during data acquisition.
- Remanufactured Availability: 5194006-3-R variant offers cost-effective exchange options, reducing maintenance costs while maintaining performance.
- Substitute Part Compatibility: Works as a drop-in replacement for part 5143018, eliminating the need for system reconfiguration.
- Medical-Grade Durability: Engineered for continuous clinical use, with enhanced strength and toughness to withstand daily operational stress.
Application Scenarios
- CT Scanner Maintenance: Replaces faulty interface boards in VCT HD, HALO LS64, and Revolution CT scanners, restoring data acquisition functionality and minimizing downtime in hospitals and imaging centers.
- DAS Subsystem Upgrades: Integrates into Sherlock to HALO Upgrade Kits, enabling existing scanners to support high-resolution HALO imaging capabilities.
- Clinical Imaging Operations: Ensures reliable data transfer for routine diagnostic scans, including oncology, cardiology, and emergency radiology, supporting accurate image reconstruction.
- Radiology Department Uptime Management: Serves as a critical spare part for proactive maintenance programs, reducing the risk of unplanned scanner outages during peak hours.
- Medical Device Service & Repair: Used by GE-certified service technicians to troubleshoot DAS communication errors, data dropouts, and signal integrity issues.
- Research & Academic Imaging: Supports high-throughput scanning in research settings, enabling advanced studies requiring consistent data quality and fast acquisition speeds.
- Veterinary & Specialized CT Centers: Maintains performance in non-human medical imaging systems using compatible GE CT platforms.
