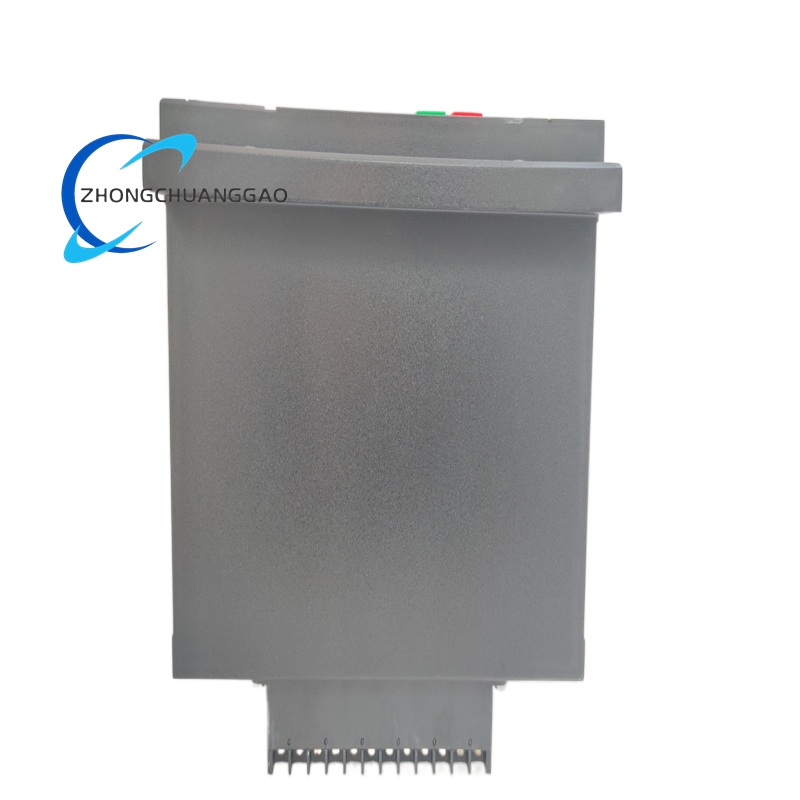

GE F650NFLF2G5HIP6E

Description

Technical Specifications

• Manufacturer: GE Vernova (Multilin Product Line)GE Vernova
• Product Series: Multilin F650 Feeder Protection & Bay ControllerGE Vernova
• Model Configuration (F650NFLF2G5HIP6E):
  • HMI: Enhanced Graphical Display with front USB, single-line diagram support
  • Communication: Redundant Ethernet (10/100 Base TX), Rear Serial Comm Board (F)
  • I/O Modules: Slot F (8 DI + 8 DO + 2 Trip/Close Supervision), Slot G (16 DI + 8 DO)
  • Auxiliary Power: HI Range (88-300 VDC, 96-250 VAC)
  • Protocol Package: P6E (IEC 61850 Edition 2, Modbus TCP/RTU, DNP 3.0, IEC 60870-5-103/104)GE Vernova
• Protection Core:
  • Processor: 32-bit RISC; Control Logic Scan Cycle ≤1ms; Fault Response Time ≤1 cycle (60Hz)GE Vernova
  • Event Recording: 1024 time-tagged events (1ms resolution); Oscillography: 5 seconds max sample rateGE Vernova
• I/O Specifications:
  • Digital Inputs: 24 (16 from Slot G, 8 from Slot F)
  • Digital Outputs: 16 (8 from Slot G, 8 from Slot F)
  • Trip/Close Supervision: 2 circuits (Slot F)
  • Analog Inputs: Configurable via expansion; CT/VT inputs for current/voltage sensingGE Vernova
• Metering Accuracy:
  • Current/Voltage: ±0.2% of full scale
  • Power: ±0.5% of full scale
  • Energy: ±0.5% of full scale
• Communication Protocols:
  • IEC 61850 Edition 2, IEC 60870-5-103/104, IEC 62439/PRP/HSR
  • Modbus RTU/TCP, DNP 3.0, IEEE 1588 (PTP), IRIG-B, SNTPGE Vernova
• Physical & Environmental:
  • Dimensions: 130mm × 135mm × 35mm; Weight: 0.8 kg
  • Mounting: 19-inch rack, draw-out modular design
  • Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C
  • Environmental Rating: IP20 (indoor); Conformal Coating Option availableGE Vernova
• Certifications: IEC 61850 Edition 2 compliant; UL, CE, ATEX certifiedGE Vernova

Functional Features

• Comprehensive Protection Functions: Time, instantaneous, and directional phase/neutral/ground/sensitive ground overcurrent; 2nd harmonic restraint; CT supervision; wattmetric ground fault detection; over/under voltage; over/under frequency; load encroachment supervisionGE Vernova.
• High-Speed Fault Handling: Detects and isolates faults within ≤1 cycle (60Hz), minimizing equipment damage and service disruptionGE Vernova.
• Flexible Control Logic: Manual close with cold load pick-up control; forward/directional power units; load shedding and bus transfer schemes for system stabilityGE Vernova.
• Advanced HMI & Data Management: Enhanced graphical display with USB data export; event logs and waveform capture for root-cause analysis; 1ms time-tagging for precise event sequencingGE Vernova.
• Modular & Scalable Design: Draw-out construction enables hot-swapping of I/O modules without system shutdown; configurable I/O adapts to varying feeder configurationsGE Vernova.
• Redundant Communication: Dual Ethernet ports and multi-protocol support ensure seamless integration with SCADA and third-party automation systemsGE Vernova.
• Precise Time Synchronization: IEEE 1588 (PTP), IRIG-B, and SNTP for accurate event timestamping and coordinated system operationGE Vernova.
• Embedded Automation: Custom logic programming via F650 Logic Configuration for arc flash detection, distributed generation interconnection, and load managementGE Vernova.

Functional Advantages

• Integrated Protection & Control: Combines protection, control, and metering in one device, reducing hardware count and installation costsGE Vernova.
• Maximized System Uptime: High-speed fault isolation and load transfer schemes minimize downtime and improve power supply reliability.
• Simplified Maintenance: Modular design and advanced diagnostics reduce troubleshooting time and replacement effortGE Vernova.
• Enhanced Data Visibility: Real-time metering, waveform capture, and event logs enable proactive maintenance and performance optimizationGE Vernova.
• Seamless Integration: Multi-protocol support ensures compatibility with legacy and modern substation automation systemsGE Vernova.
• Customizable Solutions: Flexible I/O and logic programming adapt to unique feeder and substation requirementsGE Vernova.
• Cost Efficiency: Reduces installation time and hardware investment, lowering total cost of ownership over the device lifecycleGE Vernova.

Application Scenarios

1. Utility Substations: Feeder protection, bus transfer, and arc flash detection in medium-voltage distribution networks, ensuring grid stability and reliable power deliveryGE Vernova.
2. Industrial Power Systems: Protection of feeders supplying motors, transformers, and switchgear in manufacturing plants, refineries, and chemical facilitiesGE Vernova.
3. Commercial & Institutional Buildings: Power distribution control in data centers, hospitals, and large commercial complexes, safeguarding critical loads against faultsGE Vernova.
4. Renewable Energy Integration: Distributed generation interconnect protection for solar, wind, and other renewable energy sources, ensuring grid compatibility and safetyGE Vernova.
5. Transmission & Distribution Automation: Load shedding and fault location for improved system efficiency and reduced outage durationGE Vernova.
6. Critical Infrastructure: Protection of feeders in water treatment plants, wastewater facilities, and transportation systems, maintaining continuous operation of essential servicesGE Vernova.
