Product Short Description
Product Introduction

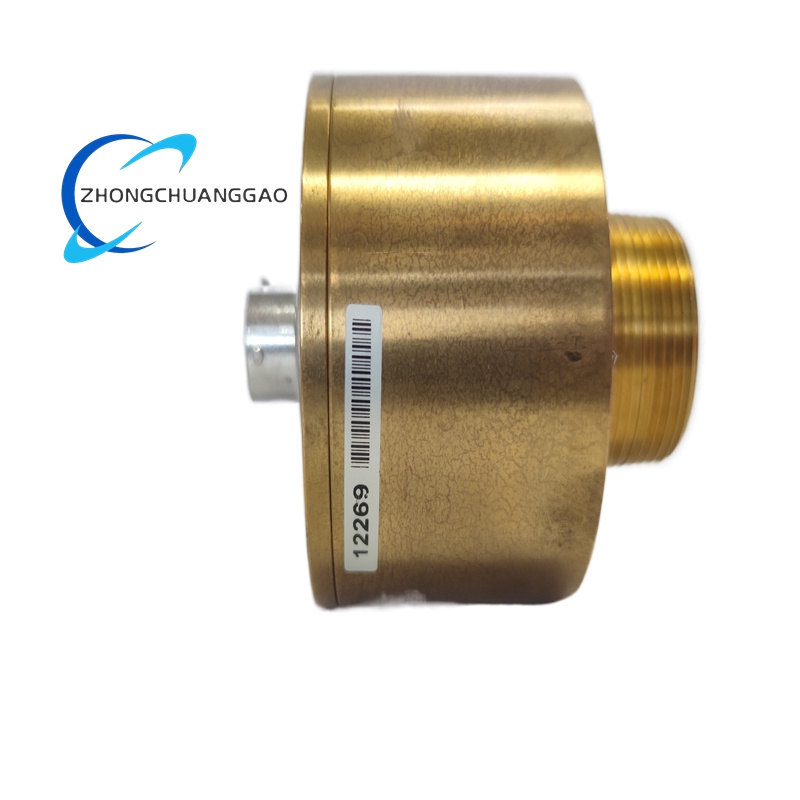

The GE DT07H-10-6PN is a robust industrial pressure transmitter module designed to convert gas, liquid, or steam pressure signals into a standardized 4-20 mA analog output for seamless integration with distributed control systems (DCS), programmable logic controllers (PLC), and turbine control systems like GE Mark IV/Mark V. It integrates a stainless steel sensing element, precision signal conditioning circuitry, and a 6-pin Deutsch DT connector for reliable field wiring. The module features ±0.5% full-scale accuracy, a wide operating temperature range of -40°C to +85°C, and IP67 protection against dust and water immersion, making it suitable for harsh industrial environments. It operates on 24 VDC power, incorporates reverse polarity protection, and uses industrial-grade materials for long-term stability in continuous process applications. It is fully calibrated at the factory, requires minimal field adjustment, and complies with industrial standards for pressure measurement and signal transmission, ensuring consistent performance in critical industrial control loops.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE (General Electric) DT07 Series |
| Model | DT07H-10-6PN |
| Product Type | Industrial Pressure Transmitter Module |
| Measurement Medium | Gases, liquids, steam (compatible with stainless steel wetted parts) |
| Pressure Range | 0 to 60 psi (0 to 4.14 bar) |
| Accuracy | ±0.5% of full scale (FS) |
| Output Signal | 4 to 20 mA DC (two-wire loop-powered) |
| Power Supply | 24 VDC (12–36 VDC operating range) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Wetted Materials | 316L stainless steel (sensing element, process connection) |
| Process Connection | 1/4 NPT male thread |
| Electrical Connection | 6-pin Deutsch DT07H-10-6PN connector (IP67-rated) |
| Protection Rating | IP67 (dust-tight, water immersion to 1 m for 30 minutes) |
| Response Time | ≤ 500 ms (90% step change) |
| Insulation Resistance | ≥ 100 MΩ (500 VDC) |
| Reverse Polarity Protection | Yes (built-in diode protection) |
| Weight | Approx. 0.25 kg |
| Compliance | CE, RoHS, IEC 61010-1 |
Functional Features
- Precision Pressure Sensing: ±0.5% FS accuracy delivers reliable pressure measurement for process control and monitoring.
- Standard 4-20 mA Output: Two-wire loop-powered design ensures compatibility with all major industrial control systems and PLC/DCS platforms.
- Rugged Sensing Element: 316L stainless steel wetted parts resist corrosion from aggressive media, extending service life.
- IP67 Environmental Protection: Sealed housing and Deutsch connector prevent dust ingress and water immersion, ensuring operation in harsh industrial settings.
- Wide Temperature Range: -40°C to +85°C operation handles extreme temperature fluctuations in outdoor and industrial environments.
- Reverse Polarity Protection: Built-in diodes safeguard against wiring errors, preventing module damage during installation.
- Fast Response Time: ≤ 500 ms response to pressure changes enables real-time control in dynamic process applications.
- Factory Calibration: Pre-calibrated at the factory, reducing field setup time and ensuring measurement consistency.
- Low Power Consumption: Loop-powered design minimizes energy use, ideal for remote installations with limited power access.
- Stable Signal Output: Signal conditioning circuitry filters noise and drift, maintaining output stability during long-term operation.
- Versatile Process Connection: 1/4 NPT male thread allows easy integration with standard industrial process piping.
Application Scenarios
- Gas Turbine Compressor Pressure Monitoring: Measures inlet, discharge, and interstage pressure in gas turbine compressors, providing data for load control and surge protection in Mark IV/Mark V systems.
- Steam Turbine Auxiliary Systems: Monitors lubrication oil pressure, cooling water pressure, and gland steam pressure to ensure safe and efficient turbine operation.
- Petrochemical Refining: Tracks process pressure in distillation columns, reactors, and pipelines, supporting closed-loop control and leak detection.
- Power Plant Boiler Feedwater Control: Measures feedwater pressure to maintain optimal flow rates and prevent boiler damage from overpressure.
- HVAC and Chiller Systems: Monitors refrigerant pressure and water loop pressure for efficient temperature control in commercial and industrial buildings.
- Oil and Gas Production: Measures wellhead pressure, pipeline pressure, and separator pressure in upstream and midstream operations.
- Food and Beverage Processing: Tracks pressure in pasteurization, filling, and packaging equipment, complying with hygiene standards via stainless steel wetted parts.
- Water and Wastewater Treatment: Monitors pump discharge pressure, filter backwash pressure, and pipeline pressure for process optimization.
- Marine and Offshore Applications: Withstands saltwater corrosion and vibration to measure pressure in shipboard systems and offshore platforms.
- Industrial Hydraulic Systems: Measures hydraulic fluid pressure in machinery, preventing equipment damage from overpressure and ensuring system efficiency.
