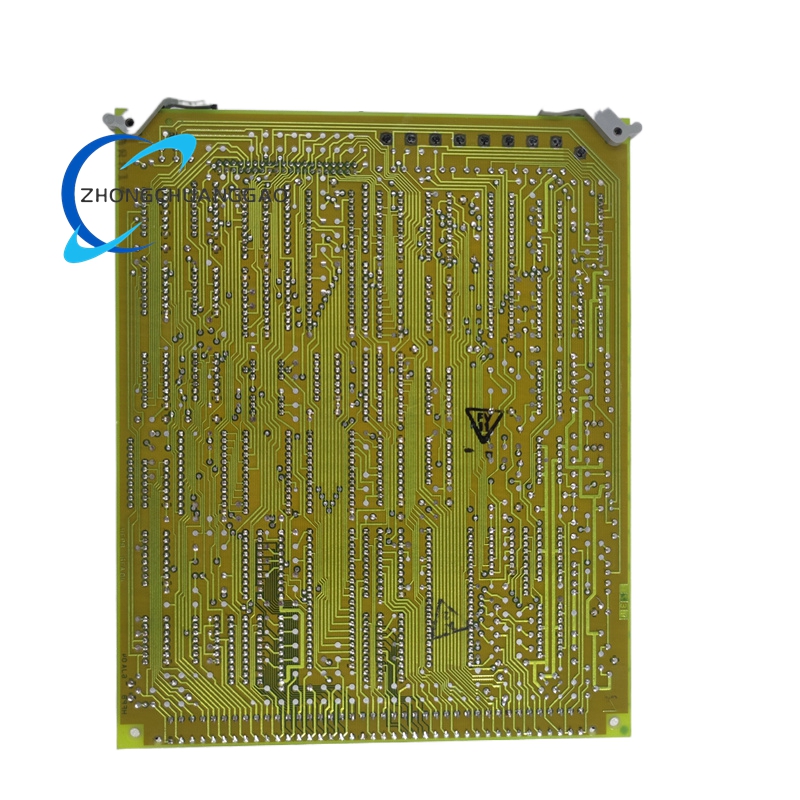

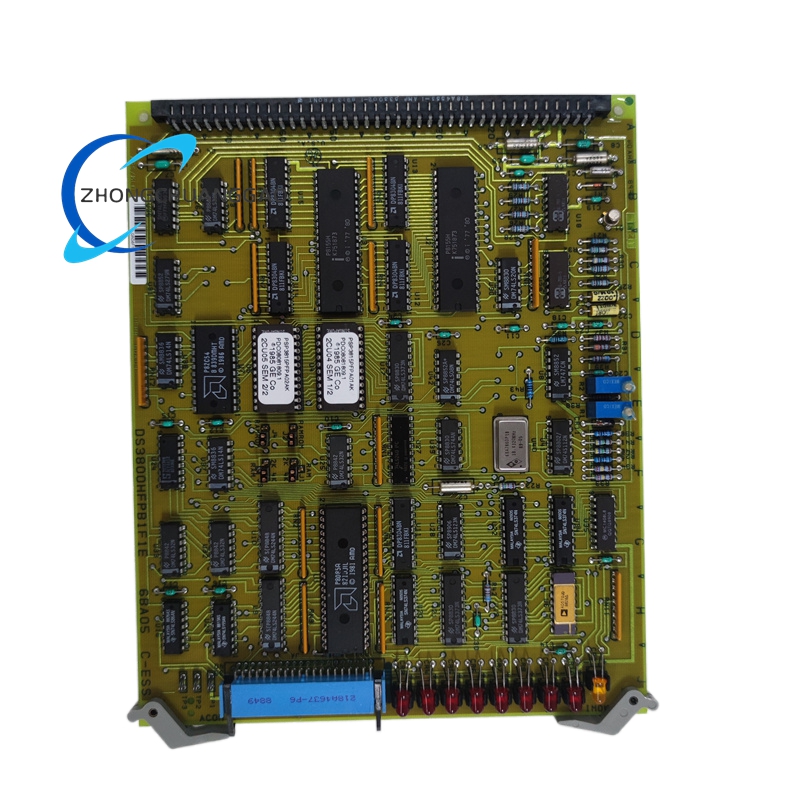

GE DS3800HFPB1F1E

Description

Technical Specifications

• Manufacturer: GE (General Electric) Industrial Control Systems
• Series: DS3800 (Series 3800) Industrial Control/PLC
• Board Type: High-Speed Control Processor Board (HFPB)
• Processor: Motorola 68040 32-bit microprocessor, 25 MHz clock speed
• Memory Configuration:
  • 4 MB DRAM for real-time program execution and data storage
  • 512 KB FRAM for non-volatile data retention, preserving critical parameters during power loss
  • 2 MB Flash Memory for firmware storage and system bootloader
• Communication Interfaces:
  • 1 Ethernet port (10/100 Mbps) for network communication and remote monitoring
  • 2 RS-232 serial ports for local configuration and device communication
  • 1 RS-485 port for multi-drop communication with field devices
  • Support for Modbus, Profibus-DP industrial communication protocols
• I/O Interface: 40-pin male connector for I/O module integration and signal transmission
• Power Supply: +5 V DC, maximum power consumption 8 watts
• Isolation: Optically isolated I/O signal paths (2500 V AC isolation rating) to prevent electrical interference
• Physical Dimensions: Standard 6U VME form factor (233.35 mm × 160 mm), weight 0.80 lbs (0.36 kg)
• Operating Temperature: -40 to 85°F (-40 to 29.4°C)
• PCB Coating: Conformal coating for protection against dust, moisture, and industrial contaminants
• Mounting: VME card cage compatible, designed for secure insertion and vibration resistance in industrial cabinets

Functional Features

• High-Performance Processing: Motorola 68040 microprocessor executes control logic with deterministic response, handling complex industrial control algorithms efficiently.
• Non-Volatile Data Storage: 512 KB FRAM retains critical control parameters, calibration data, and system configurations without battery backup, even during prolonged power loss.
• Multi-Protocol Communication: Ethernet, RS-232, and RS-485 interfaces support seamless integration with SCADA systems, HMIs, and field devices via Modbus and Profibus-DP protocols.
• Modular I/O Integration: 40-pin connector enables flexible connection to digital/analog I/O modules, supporting scalable system expansion based on application requirements.
• Real-Time Data Processing: Processes input signals from sensors and actuators in real time, ensuring timely execution of control actions and alarm responses.
• Built-In Diagnostics: Monitors internal memory, communication interfaces, and power supply status, providing fault indication for quick troubleshooting.
• Industrial-Grade Reliability: Conformal coating and rugged component selection ensure stable operation in high-vibration, temperature-fluctuating industrial environments.
• Deterministic Control Execution: Fixed-cycle program execution guarantees consistent response times for time-critical control tasks in turbine and process automation.

Functional Advantages

• Robust Processing Capability: 68040 microprocessor and 4 MB DRAM handle large data volumes and complex logic, supporting high-precision control in industrial processes.
• Data Integrity: FRAM non-volatile memory eliminates data loss risks, critical for maintaining control system consistency during power cycles.
• Flexible System Integration: Multiple communication interfaces and modular I/O support easy integration with existing industrial control infrastructure.
• Simplified Maintenance: Built-in diagnostics and standard VME form factor reduce downtime by enabling quick module replacement and fault isolation.
• Extended Operational Lifespan: Industrial-grade components and conformal coating ensure reliable performance in harsh environments, extending the board’s service life.
• Deterministic Response: Fixed execution cycles meet the strict timing requirements of turbine control, process automation, and motion control applications.

Application Scenarios

1. Turbine Control Systems: Legacy Mark IV/Series 3800 Speedtronic systems for gas/steam turbines, serving as the core processor to manage startup, load balancing, and safety protection functions.
2. Industrial Process Control: Petrochemical refineries, chemical plants, and paper mills, executing PLC logic for batch processing, flow control, and pressure regulation.
3. Power Generation Auxiliaries: Thermal power plants and combined-cycle facilities, controlling pumps, fans, and valve actuators to support turbine and generator operation.
4. Oil and Gas Infrastructure: Pipeline compression stations and offshore platforms, managing compressor control systems and ensuring process safety via real-time data processing.
5. Manufacturing Automation: Production lines and assembly systems, executing motion control and sequence logic to maintain production efficiency and product quality.
6. Building Automation: Large-scale commercial and industrial buildings, controlling HVAC, lighting, and security systems through integration with building management systems.
