Product Short Description
Product Introduction

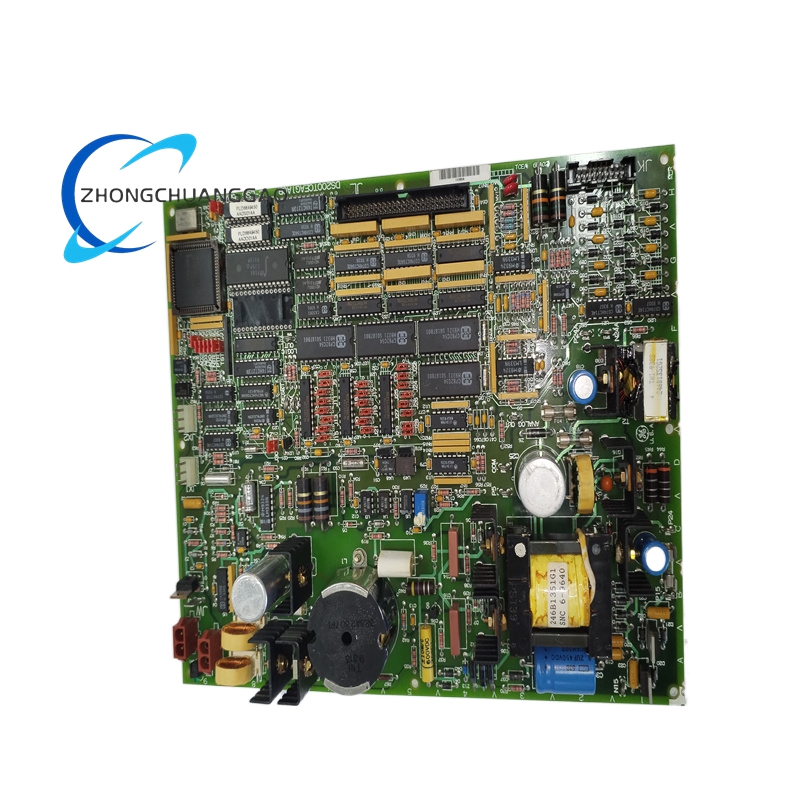

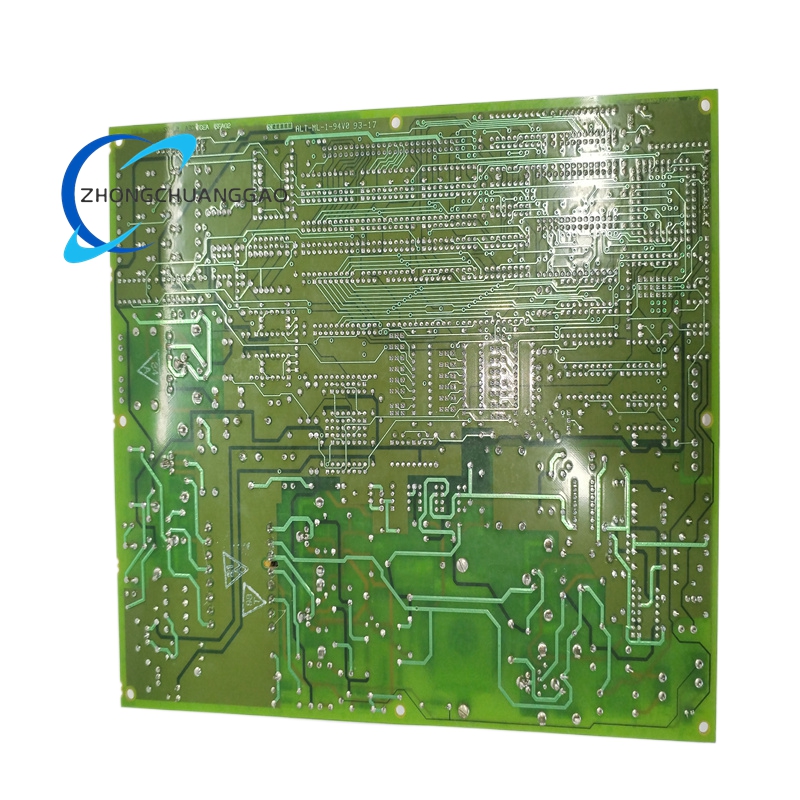

The GE DS200TCEAG1ACB is a TC2000 Enhanced Analog I/O Board (TCEA) in the Mark V Speedtronic DS200 series, serving as a high-precision analog signal processing interface between field sensors/actuators and the Mark V turbine control system. It mounts in the Mark V C core via the VME P1 connector, occupying one full VME slot, and integrates an 80196 microprocessor, PROM firmware modules, 16 differential analog input channels, 16 analog output channels, two 50-pin field connectors (JCC/JDD), and a side-mounted status LED. It processes thermocouple, RTD, 4-20 mA, and ±10 VDC signals with 12-bit resolution and 0.1% full-scale (FS) accuracy, and features 1500 Vrms isolation between field and logic circuits via optoelectronic isolation to eliminate noise and ground loops. The board supports software-based configuration for channel assignment and signal range setting, uses standard PCB coating for harsh industrial durability, and is designated Group 1 with artwork/functional revisions A/C/B. It is supported by the GEH-6153 reference manual, ensuring seamless integration into Mark V architectures for critical turbine monitoring and closed-loop control applications.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE (General Electric) Mark V Speedtronic DS200 Series |
| Model | DS200TCEAG1ACB |
| Product Type | TC2000 Enhanced Analog I/O Board (TCEA), Group 1, Revisions A/C/B |
| Application | Mark V Speedtronic Gas/Steam Turbine Control Systems |
| Mounting | Mark V C core, 1 full VME slot via VME P1 connector |
| Processor | Intel 80196 microprocessor |
| Firmware Storage | Multiple PROM modules |
| Analog Input Channels | 16 differential channels |
| Analog Output Channels | 16 channels |
| Input Signal Compatibility | Thermocouple, RTD, 4-20 mA, ±10 VDC |
| Output Signal Ranges | 4-20 mA, ±10 VDC |
| Resolution | 12 bits (input and output) |
| Accuracy | 0.1% FS |
| Isolation | 1500 Vrms (field-logic circuits, optoelectronic) |
| Connectors | 2×50-pin field connectors (JCC/JDD), ribbon cable interfaces |
| Status Indicator | 1 side-mounted LED (power/communication/fault) |
| PCB Coating | Standard Coating |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Dimensions | Approx. 12.5 × 5.5 × 2.5 inches (317.5 × 139.7 × 63.5 mm) |
| Weight | Approx. 2.9 kg (6.3 lbs) |
| Power Supply | 5 V DC ± 5% (from VME backplane) |
| Data Transfer Rate | Up to 2 MB/s (VMEbus standard) |
| Compliance | IEC 61010-1, IEC 61326-1 |
| Reference Manual | GEH-6153 |
Functional Features
- High-Precision Signal Conversion: 12-bit resolution and 0.1% FS accuracy ensure precise measurement and control of critical turbine parameters like temperature, pressure, and flow.
- Microprocessor-Driven Processing: 80196 microprocessor enables firmware-based signal filtering, scaling, and calibration for consistent performance across all channels.
- Dual 16-Channel Density: 16 differential analog inputs + 16 analog outputs handle multi-point monitoring and closed-loop control of turbine auxiliary systems.
- Multi-Signal Compatibility: Supports thermocouple, RTD, 4-20 mA, and ±10 VDC signals for flexible integration with diverse field sensors and actuators.
- Optoelectronic Isolation: 1500 Vrms isolation eliminates noise and ground loops, enhancing signal integrity and operator safety.
- Software-Configurable I/O: Enables channel assignment and signal range setting via software, eliminating hardware jumper changes for faster reconfiguration.
- Status Monitoring: Side-mounted LED provides real-time power, communication, and fault alerts for quick diagnostics and reduced downtime.
- Industrial-Grade Durability: Standard PCB coating protects against dust, moisture, and vibration in power generation environments.
- Plug-and-Play Integration: VME backplane compatibility allows hot-swappable replacement without full system shutdown, minimizing operational disruptions.
- Firmware Upgradeability: PROM modules support field-upgradeable firmware to adapt to evolving turbine control requirements.
- Low Signal Distortion: Precision components maintain signal accuracy for critical closed-loop control loops (speed, temperature, pressure).
Application Scenarios
- Gas Turbine Auxiliary Control: Processes temperature, pressure, and flow signals from lubrication, cooling, and fuel systems to support safe start-stop cycles and load regulation in Mark V setups.
- Steam Turbine Monitoring: Interfaces with steam pressure/temperature sensors and actuators to maintain optimal turbine performance in power plant operations.
- Combined Cycle HRSG Control: Manages analog I/O for heat recovery steam generators, enabling efficient heat transfer and steam production in combined-cycle power plants.
- Industrial Turbine Compressors: Handles analog signals for turbine-driven compressors in petrochemical refineries and natural gas processing plants, withstanding harsh industrial environments.
- Mark V System Retrofits: Replaces legacy TCEA boards in existing Mark V installations, preserving I/O compatibility and control precision while supporting firmware upgrades.
- Turbine Commissioning & Testing: Enables reliable signal processing during parameter calibration and system validation, simplifying setup and reducing commissioning time.
- Grid-Connected Power Plants: Supports turbine load control and grid synchronization via accurate analog feedback, ensuring stable power output and grid compatibility.
- Marine Turbine Propulsion: Integrates with shipboard Mark V systems to manage analog I/O for propulsion control, ensuring reliable at-sea operations in harsh marine environments.
- Turbine Safety System Interfacing: Transmits critical analog signals (e.g., overspeed, high temperature) to emergency shutdown (ESD) systems, triggering safe shutdown during abnormal conditions.
