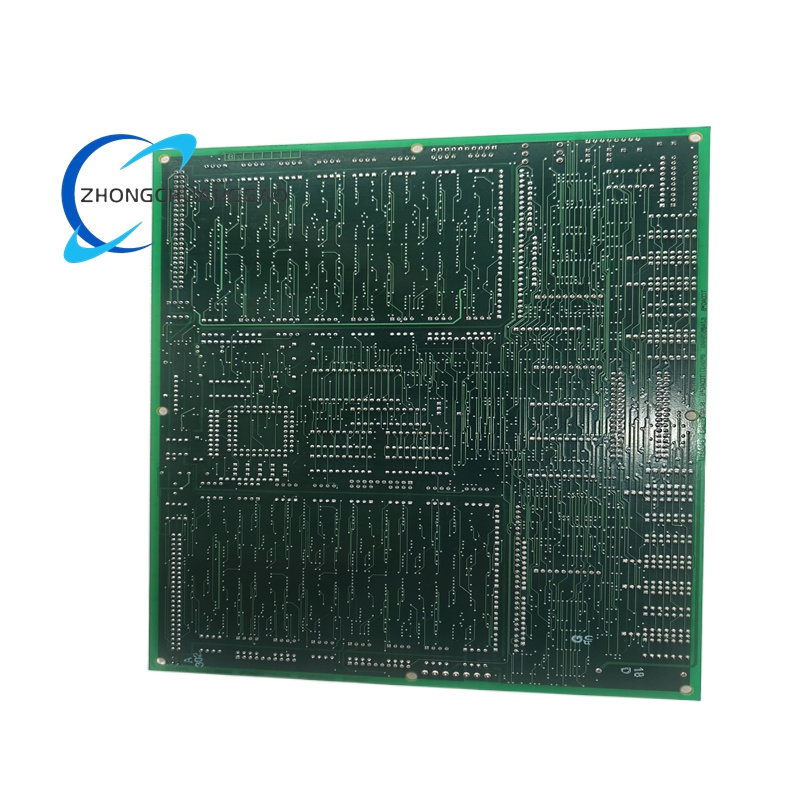

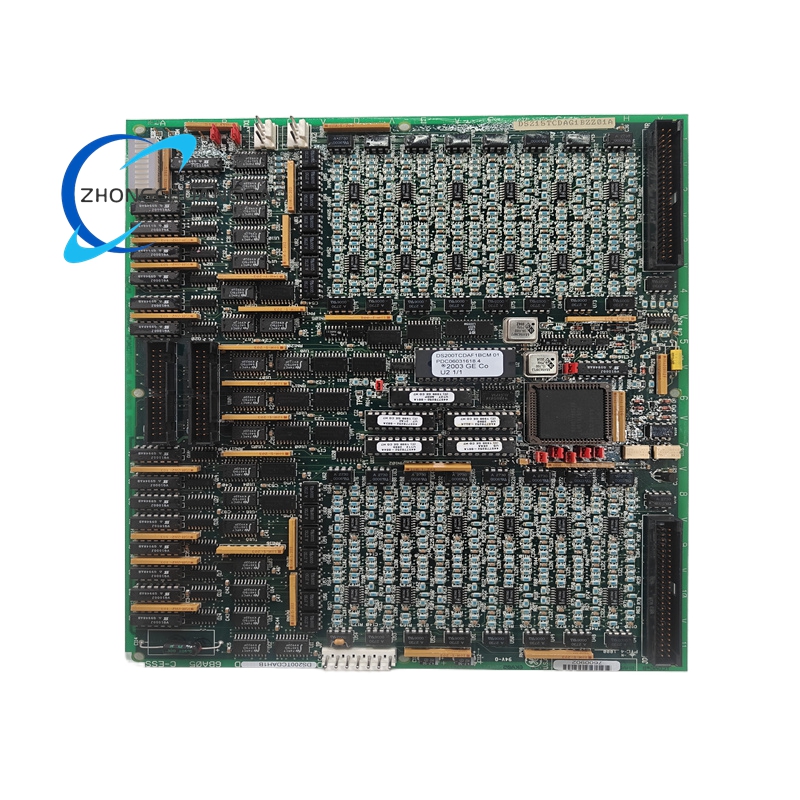

GE DS200TCDAH1B

Description

Technical Specifications

• Manufacturer: GE (General Electric) Boards & Turbine Control
• Series: Mark V DS200 (Speedtronic)
• Board Type: Digital I/O Board (TCDA)
• Processor: Single microprocessor with multiple PROM modules for firmware and operation instructions
• I/O Channels: 32 bidirectional digital I/O channels, 200mA per channel current capacity
• Signal Voltage Range: 5V – 24V DC
• Connectors:
  • JP: Power distribution from TCPS board
  • JQ: Contact input signals from DTBA terminal board
  • JR: Contact input signals from DTBB terminal board
  • JO1/JO2: Contact output signals to TCRA boards
  • JX1/JX2: IONET daisy-chain connectors for system communication
  • 2×50-pin connectors for terminal board interface; 2×3-pin connectors for IONET signals
• Jumpers: 8 hardware jumpers (JP1-JP8) for configuration customization
• Status Indication: 1 block of 10 LEDs for fault and operational status; 1 side-visible LED for overall board status
• Protection Features: Reverse polarity protection, overcurrent protection for I/O channels
• Power Supply: 5V DC, 24V DC via JP connector from TCPS board
• PCB Coating: Conformal coating for dust, moisture, and industrial contaminant protection
• Operating Temperature: -40 to 85°F (-40 to 29.4°C)
• Functional Revision: B; Artwork Revision: D
• Mounting: Installed in the Mark V control system cabinet, R5 core

Functional Features

• Digital Signal Conditioning: Terminates and conditions contact input/output signals, ensuring accurate processing and transmission of discrete system states.
• IONET Communication: Transmits processed digital data via IONET network, enabling real-time data exchange with the Mark V system bus.
• Microprocessor-Based Control: Manages signal processing, I/O state monitoring, and communication, ensuring reliable and low-latency operation.
• Modular Signal Routing: Dedicated connectors for different signal types enable organized signal flow between terminal boards, TCRA boards, and the system network.
• Configurable Hardware Settings: 8 jumpers allow customization for specific application requirements and system configurations.
• Comprehensive Status Monitoring: 10-LED block and side LED provide clear visual indicators for fault detection and operational status tracking.
• Industrial-Grade Protection: Reverse polarity and overcurrent protection prevent component damage from electrical anomalies; conformal coating enhances durability in harsh environments.
• Seamless System Integration: Interfaces with TCPS, DTBA/DTBB, and TCRA boards for full integration into the Mark V control architecture.

Functional Advantages

• High Signal Integrity: Rigorous signal conditioning and protection mechanisms ensure accurate discrete state monitoring and control.
• Efficient Data Transmission: IONET network connectivity minimizes communication latency for real-time system response.
• Flexible Configuration: 8 jumpers adapt to diverse field requirements without extensive hardware modifications.
• Simplified Troubleshooting: LED status indicators enable quick identification of I/O and communication faults, reducing downtime.
• Robust Environmental Adaptability: Conformal coating and industrial-grade components maintain performance in temperature variations, vibration, and contamination.
• Scalable I/O Capacity: 32 bidirectional channels support expansion of discrete control points for turbine and auxiliary systems.

Application Scenarios

1. Power Generation: Deployed in gas/steam turbine control systems to monitor and control valve positions, motor start/stop commands, and safety interlock states, ensuring turbine operational safety and efficiency.
2. Oil and Gas Industry: Integrated into compressor and pump control systems for discrete signal management during extraction, refining, and pipeline transportation processes.
3. Industrial Automation: Applied in material handling, production line machinery, and heavy-duty equipment to control contact inputs/outputs for process sequencing and equipment protection.
4. Chemical Processing: Utilized in reactor and heater control systems to manage discrete safety interlocks, valve actuation, and alarm states in harsh chemical plant environments.
5. Marine Propulsion: Integrated into shipboard turbine control systems for digital I/O management of propulsion system components, supporting reliable vessel operation at sea.
