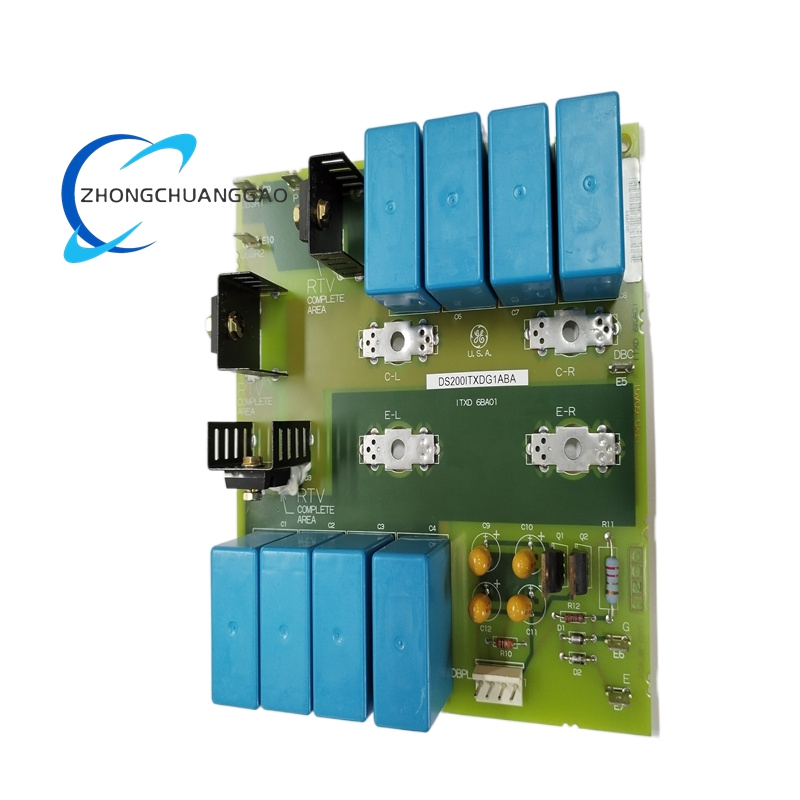

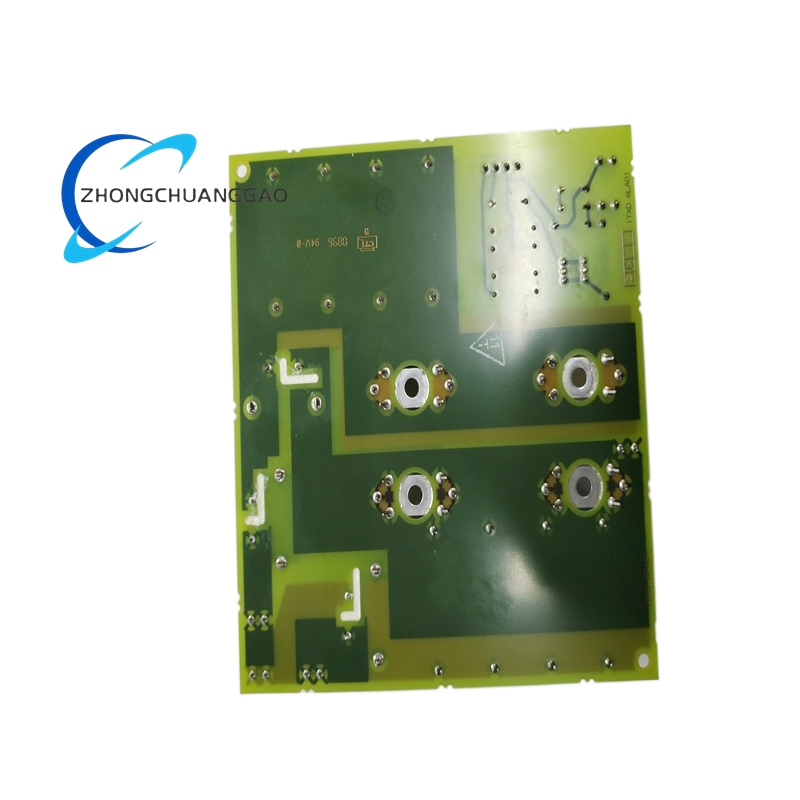

GE DS200ITXDG1ABA

Description

Technical Specifications

• Manufacturer: GE (General Electric) Boards & Turbine Control
• Series: Mark V DS200
• Board Type: Dynamic Braking Snubber Board
• Connector Type (DBPL Connection): Four – Pin Connector
• Input Voltage Range: 0 to 55 VDC
• Frequency Range: 14 to 60kHz
• Long – Term Drift: < 0.3%
• Operation Temperature: -40 to 85°F (-40 to 29.4°C)
• Drive – Rated Output Current (Variable Torque Applications): 500 ARMS
• PCB Coating: Conformal coating for enhanced protection against dust and moisture
• Mounting: External to the drive board, designed for easy integration into existing drive systems

Functional Features

• Dynamic Braking Snubber Circuitry: Effectively absorbs energy and suppresses voltage spikes generated during the switching of power components, preventing damage to IGBTs and other critical drive components.
• Output Conditioning: Adjusts the outputs from the IGBT Gate Driver Board to ensure compatibility with the electrical properties of AT frame drives, optimizing drive performance and stability.
• Transient Protection: Offers robust protection against switching transients, which can occur during dynamic braking or rapid changes in motor load, safeguarding the entire drive system from potential damage.
• Microprocessor – Based Control: Incorporates microprocessor control for precise and reliable operation, ensuring consistent performance even under varying load conditions.
• Modular Design: Features a modular structure that simplifies installation, maintenance, and troubleshooting, reducing downtime in industrial operations.
• Compatibility: Specifically engineered for use with AT Frame drives, supporting both variable and constant torque applications commonly found in industrial motor control systems.

Functional Advantages

• High Reliability: Built with industrial – grade components and conformal coating on the PCB, ensuring durability and stable operation in harsh industrial environments.
• Enhanced System Longevity: By suppressing voltage spikes and transients, it significantly reduces the stress on IGBTs and other drive components, extending the overall lifespan of the drive system.
• Seamless Integration: Supports smooth integration with the Mark V control system and AT Frame drives, maintaining the integrity of the overall control architecture.
• Low Maintenance Requirements: The modular design and straightforward external mounting allow for quick inspection and replacement if necessary, minimizing operational interruptions.
• Consistent Performance: Maintains stable performance across a wide range of operating conditions, including varying temperatures and voltage fluctuations, ensuring reliable drive operation.

Application Scenarios

1. Power Generation: Used in gas turbine control systems, steam turbine auxiliaries, and generator cooling systems, where precise motor control and reliable braking are essential for operational safety and efficiency.
2. Oil and Gas Refining: Applied in pump and compressor control systems, ensuring stable operation and effective braking during process changes or emergency shutdowns.
3. Chemical Processing: Utilized in agitator, mixer, and conveyor motor drives, protecting the drive systems from transients in harsh chemical plant environments.
4. Water and Wastewater Treatment: Integrated into blower, pump, and aerator motor controls, providing reliable dynamic braking and transient protection for continuous treatment processes.
5. Industrial Automation: Employed in various heavy – duty industrial machinery with AT Frame drives, such as material handling systems and production line motors, enhancing system reliability and reducing maintenance costs.
