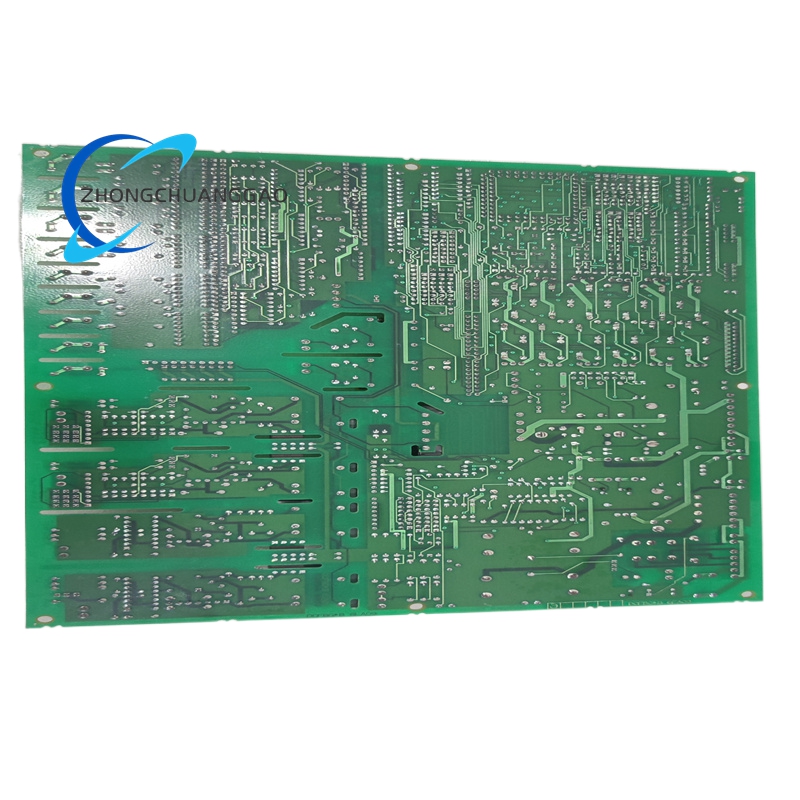

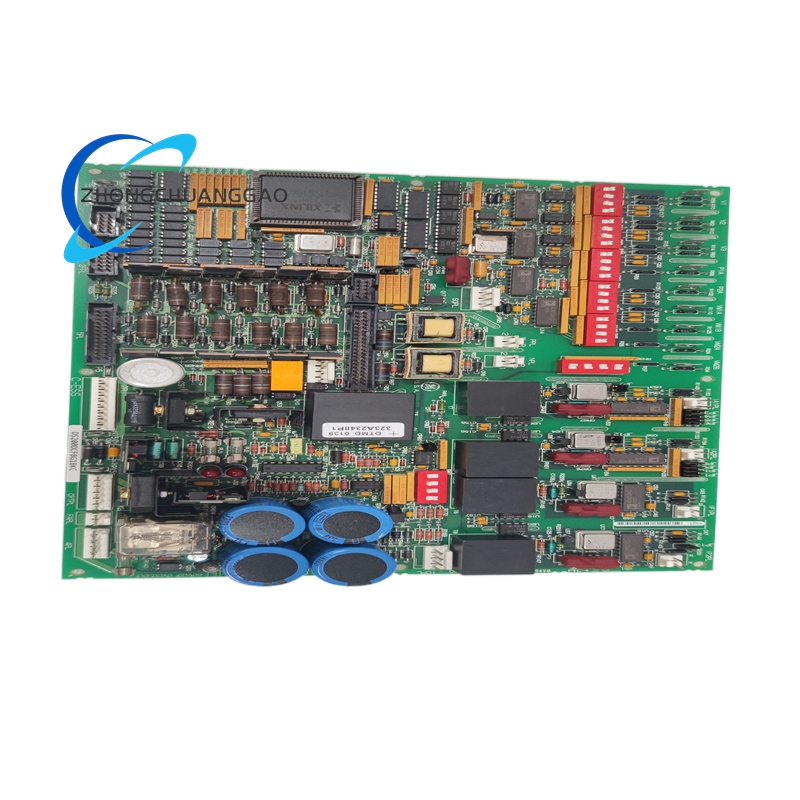

GE DS200DCFBG1BLC

Description

Technical Specifications

Functional Features

• Multi – Voltage Power Provision: Supplies stable 24 VDC control – level power for DC drives/exciters and 115 VAC for enclosure fans, supporting core system and cooling functions, and providing +5, ±15, ±24 VDC control – level power supplies.
• Integrated Feedback Processing: Communicates with SDCC/LDCC control boards to monitor motor voltage feedback, adjusts feedback via DIP switch SW6, and converts voltage to frequency signals through a VCO circuit for controller processing.
• Flexible Configuration: 12 jumpers and 7 DIP switches allow customization for specific drive models and system requirements, ensuring broad compatibility across GE drive platforms.
• Multi – Layer Protection: 3 protective fuses, overvoltage, overcurrent, and short – circuit protection mechanisms shield the board and connected systems from power – related faults.
• Real – time Diagnostics: 2 LEDs and 1 neon indicator show fuse status, and 5 test points enable on – site signal verification, simplifying troubleshooting and reducing downtime.
• Seamless System Integration: Multiple plug – in and stab – type connectors ensure reliable connections to control boards, contactor drivers, and other system components.
• Motor Field Power Management: Dedicated motor field power circuits regulate power to motor fields, maintaining consistent performance in variable – load drive applications.
• Industrial – Grade Durability: Built with industrial – grade components and normal PCB coating to operate in extreme temperatures and high – vibration industrial environments, ensuring long – term reliability.
• Standardized Documentation: The GEI – 100028 manual offers detailed setup, operation, and maintenance instructions for consistent deployment.
• Hot – Swap Capability: Supports hot – swap installation in compatible drive systems, minimizing operational disruptions during replacement.
• Backwards Compatibility: Works with the first two revisions of DCFB boards, facilitating easy upgrades and replacements in existing systems.
• VCO – Based Signal Conversion: Voltage – controlled oscillator (VCO) circuits convert voltage feedback signals to frequency signals for accurate controller processing.

Application Scenarios

• Gas & Steam Turbine Control: Powers and monitors Mark V Speedtronic systems, delivering control – level power for turbine exciters and enclosure cooling fans, and supporting safe start – stop and load – shedding operations.
• Heavy – Duty DC Drives: Supplies control power for DC2000 series drives in steel rolling mills, mining conveyors, and industrial compressors, ensuring precise motor field control.
• AC Drive Systems: Integrates with AC2000, FC2000, and ME2000 drives to provide control power and feedback monitoring for variable – frequency drive operations.
• Marine Propulsion Systems: Operates in ME2000 marine drive systems, supplying reliable control power and feedback regulation for shipboard turbine and propulsion systems.
• Power Generation Auxiliaries: Controls exciters and auxiliary systems in grid – connected power plants, maintaining stable power output and system safety.
• Petrochemical Refineries: Powers pump and compressor drives in EX2000 systems, withstanding harsh refinery environments and ensuring process continuity.
• Cement & Mining Operations: Supports CB2000 crusher and mill drives, providing robust power and feedback control in dusty, high – vibration settings.
• Mark V System Retrofits: Serves as a replacement for legacy DCFB boards, maintaining compatibility and performance in existing Mark V installations.
• Enclosure Cooling Management: Supplies 115 VAC to enclosure fans in all compatible drive systems, preventing overheating and extending component lifespan.
• IGBT Drive Applications: Powers and monitors IGBT – based drive systems, providing stable control power and feedback signals for high – efficiency drive operations.
