Product Short Description
Product Introduction

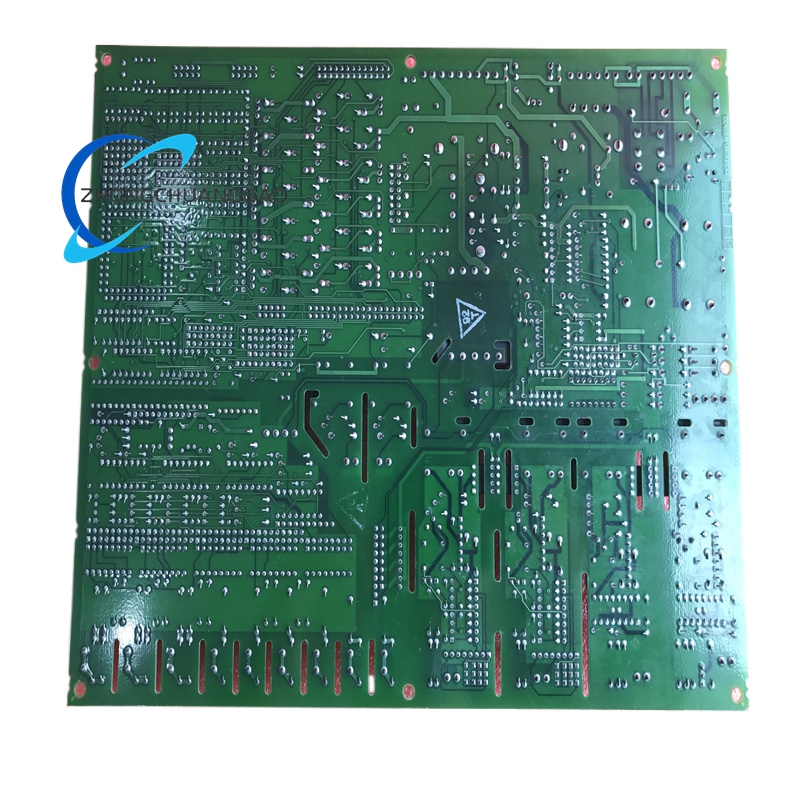

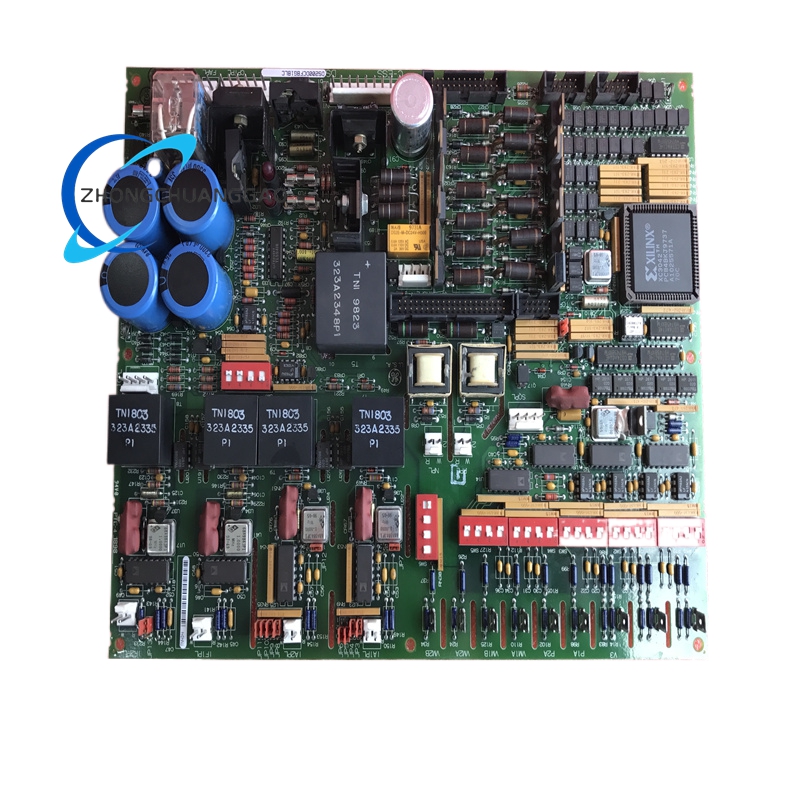

The GE DS200DCFBG1BGB is a specialized DC Feedback Power Board (DCFB) tailored for GE Mark V Speedtronic control systems and a wide array of GE drive control platforms, such as AC2000, CB2000, DC2000, FC2000, ME2000, and EX2000. It serves as a core power supply and feedback management hub, generating and regulating 24 VDC control-level power for DC drives or exciters, and delivering 115 VAC power to enclosure fans. The board integrates motor field power circuits, driver circuits, AC/DC monitoring circuits, and control-level power supply circuits, and communicates with SDCC/LDCC control boards to monitor and adjust motor voltage feedback signals, which are converted to frequency signals for controller processing. It comes with 12 configurable jumpers, 7 DIP switches, 3 protective fuses, 5 test points, and multiple connectors for seamless integration, and is supported by the GEI-100028 reference manual. It is built with industrial-grade components to ensure consistent performance in harsh industrial environments, serving as a critical power and feedback control hub in turbine and heavy-duty drive systems.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE (General Electric) Speedtronic/Mark V Series |
| Model | DS200DCFBG1BGB |
| Product Type | DC Feedback Power Board (DCFB) |
| Application | Mark V Speedtronic, AC2000, CB2000, DC2000, FC2000, ME2000, EX2000 Drive Control Systems |
| Input Voltage | 38–115 VAC (from control power transformer) |
| Output Power | 24 VDC control-level power for DC drives/exciters; 115 VAC for enclosure fans |
| Circuit Composition | Motor field power, driver, AC/DC monitoring, control-level power supply circuits |
| Configuration Components | 12 configurable jumpers, 7 DIP switches (SW1–SW7) |
| Protection Devices | 3 protective fuses for input/output power safeguarding |
| Diagnostic Features | 2 LEDs, 1 neon indicator for fuse status; 5 test points for signal verification |
| Reference Manual | GEI-100028 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Dimensions | Approx. 5.5 × 4.5 × 1.5 inches (139.7 mm × 114.3 mm × 38.1 mm) |
| Weight | Approx. 2.2 lbs (1.0 kg) |
| Mounting | PCB for standard Mark V chassis installation |
| Country of Origin | USA |
| Frequency Range | 0–500 kHz (dependent on input voltage) |
Functional Features
- Dual Power Supply Provision: Supplies stable 24 VDC control-level power for DC drives/exciters and 115 VAC for enclosure fans, supporting core system and cooling functions.
- Integrated Feedback Monitoring: Communicates with SDCC/LDCC control boards to monitor motor voltage feedback, adjusts feedback via DIP switch SW6, and converts voltage to frequency signals for controller processing.
- Flexible Configuration: 12 jumpers and 7 DIP switches allow customization for specific drive models and system requirements, ensuring broad compatibility across GE drive platforms.
- Multi-Layer Protection: 3 protective fuses, overvoltage, overcurrent, and short-circuit protection mechanisms shield the board and connected systems from power-related faults.
- Real-time Diagnostics: 2 LEDs and 1 neon indicator show fuse status, and 5 test points enable on-site signal verification, simplifying troubleshooting and reducing downtime.
- Seamless System Integration: Multiple plug-in and stab-type connectors ensure reliable connections to control boards, contactor drivers, and other system components.
- Motor Field Power Management: Dedicated motor field power circuits regulate power to motor fields, maintaining consistent performance in variable-load drive applications.
- Industrial-Grade Durability: Constructed to operate in extreme temperatures and high-vibration industrial environments, ensuring long-term reliability.
- Standardized Documentation: GEI-100028 manual provides detailed setup, operation, and maintenance instructions for consistent deployment.
- Hot-Swap Capability: Supports hot-swap installation in compatible drive systems, minimizing operational disruptions during replacement.
Application Scenarios
- Gas & Steam Turbine Control: Powers and monitors Mark V Speedtronic systems, delivering control-level power for turbine exciters and enclosure cooling fans, and supporting safe start-stop and load-shedding operations.
- Heavy-Duty DC Drives: Supplies control power for DC2000 series drives in steel rolling mills, mining conveyors, and industrial compressors, ensuring precise motor field control.
- AC Drive Systems: Integrates with AC2000, FC2000, and ME2000 drives to provide control power and feedback monitoring for variable-frequency drive operations.
- Marine Propulsion Systems: Operates in ME2000 marine drive systems, supplying reliable control power and feedback regulation for shipboard turbine and propulsion systems.
- Power Generation Auxiliaries: Controls exciters and auxiliary systems in grid-connected power plants, maintaining stable power output and system safety.
- Petrochemical Refineries: Powers pump and compressor drives in EX2000 systems, withstanding harsh refinery environments and ensuring process continuity.
- Cement & Mining Operations: Supports CB2000 crusher and mill drives, providing robust power and feedback control in dusty, high-vibration settings.
- Mark V System Retrofits: Acts as a replacement for legacy DCFB boards, maintaining compatibility and performance in existing Mark V installations.
- Enclosure Cooling Management: Supplies 115 VAC to enclosure fans in all compatible drive systems, preventing overheating and extending component lifespan.
